42
Installing the Transceiver System
Mounting the Power Wafer Unit to the Camera Unit
3 When the Power Wafer is securely mounted to the CopperHead 3400 Camera Unit, you
must connect the supplied Power Wafer connector cable (2) between the Power Wafer
(1) and the Power Wafer connector on the Camera Unit (15)

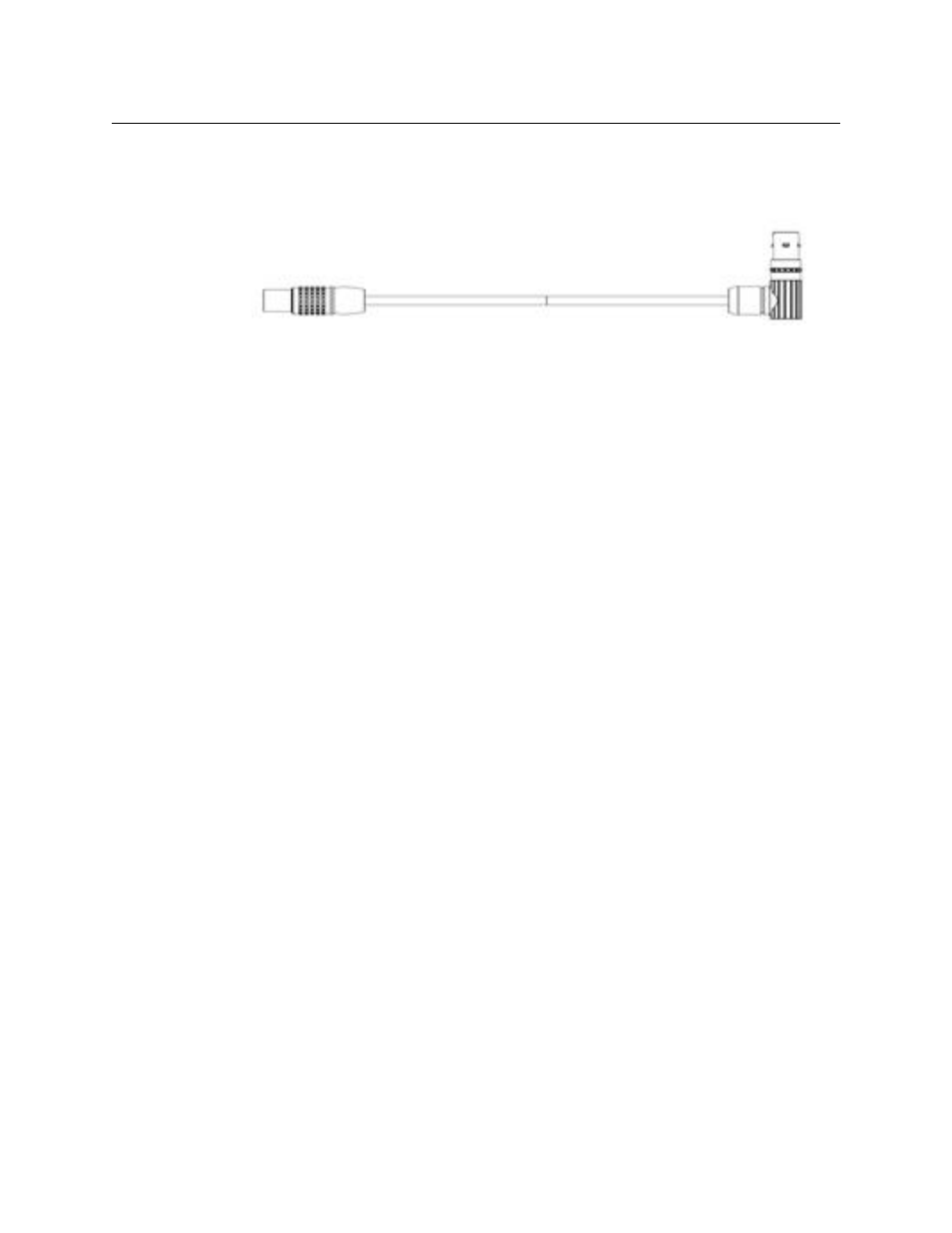

Fig. 4-4: Power Wafer connector cable
The Power Wafer to Camera Unit cable is supplied with the CopperHead Power Wafer Unit
For configuration, see
Connecting the Transceiver System on page 45.
