CopperHead 3400
User Guide
Camera Headset
Camera Unit #3

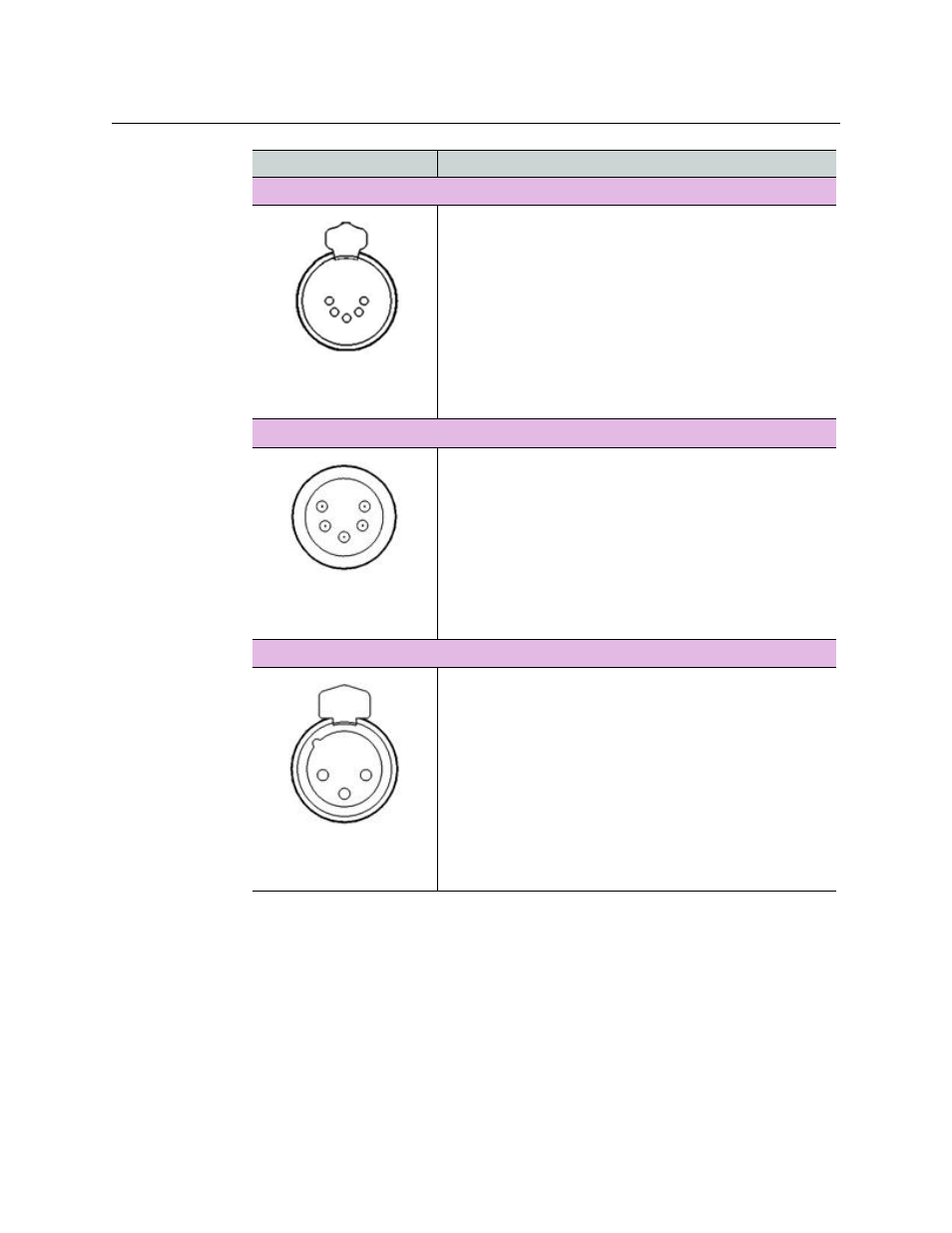

XLR5 Female
• Pin 1: MIC Ground (shield)
• Pin 2: + MIC Input
• Pin 3: - Earphone Output Ground
• Pin 4: + Earphone Output
• Pin 5: + Earphone Output
(RTS standard monaural headset pinout)
Audio Output
Camera Unit #4
XLR5 Male
• Pin 1: Ground
• Pin 2: Channel A/C (-) OUT
• Pin 3: Channel A/C (+) OUT
• Pin 4: Channel B/D (-) OUT
• Pin 5: Channel B/D (+) OUT
Audio Input
Camera Unit #5 & #6
XLR3 Female
• Pin 1: Chassis ground (cable shield)
• Pin 2: Positive polarity terminal (“hot”)
• Pin 3: Return terminal (“cold”)
Item Description
