59
CopperHead 3400
User Guide
Camera Unit Connection Example

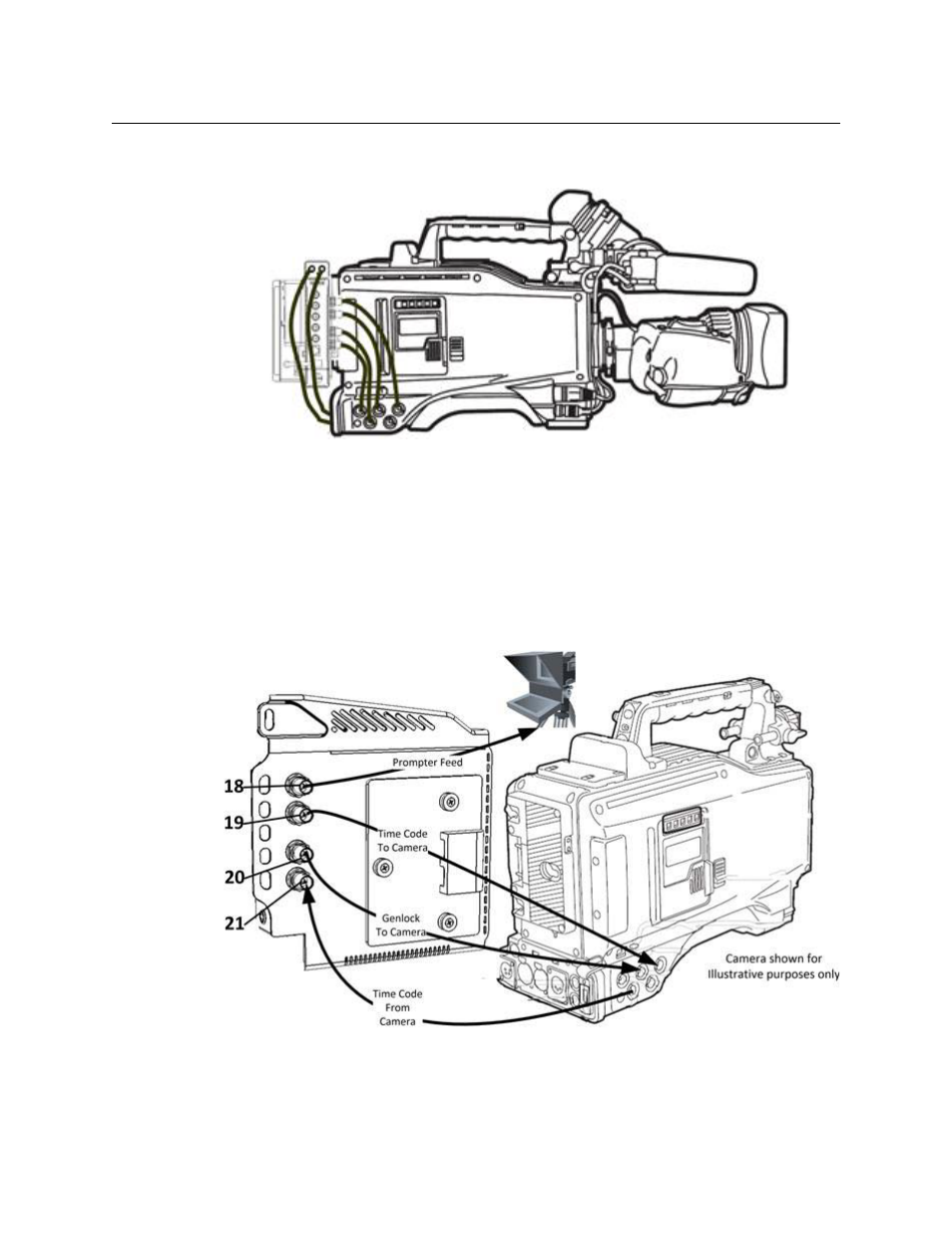

Fig. 5-9: CopperHead 3400 Camera Unit
Your CopperHead 3400 Camera Unit and your camera will look something like this once
you have connected the various signal paths. Each camera setup will be different
depending on your model.
See the following section for an overview of Camera Unit to Camera & Peripheral
Equipment connections.
Camera Unit to Camera Connections
Fig. 5-10: Camera Unit (Camera Facing Side) to Camera Connections
