86
CopperHead 3400
User Guide

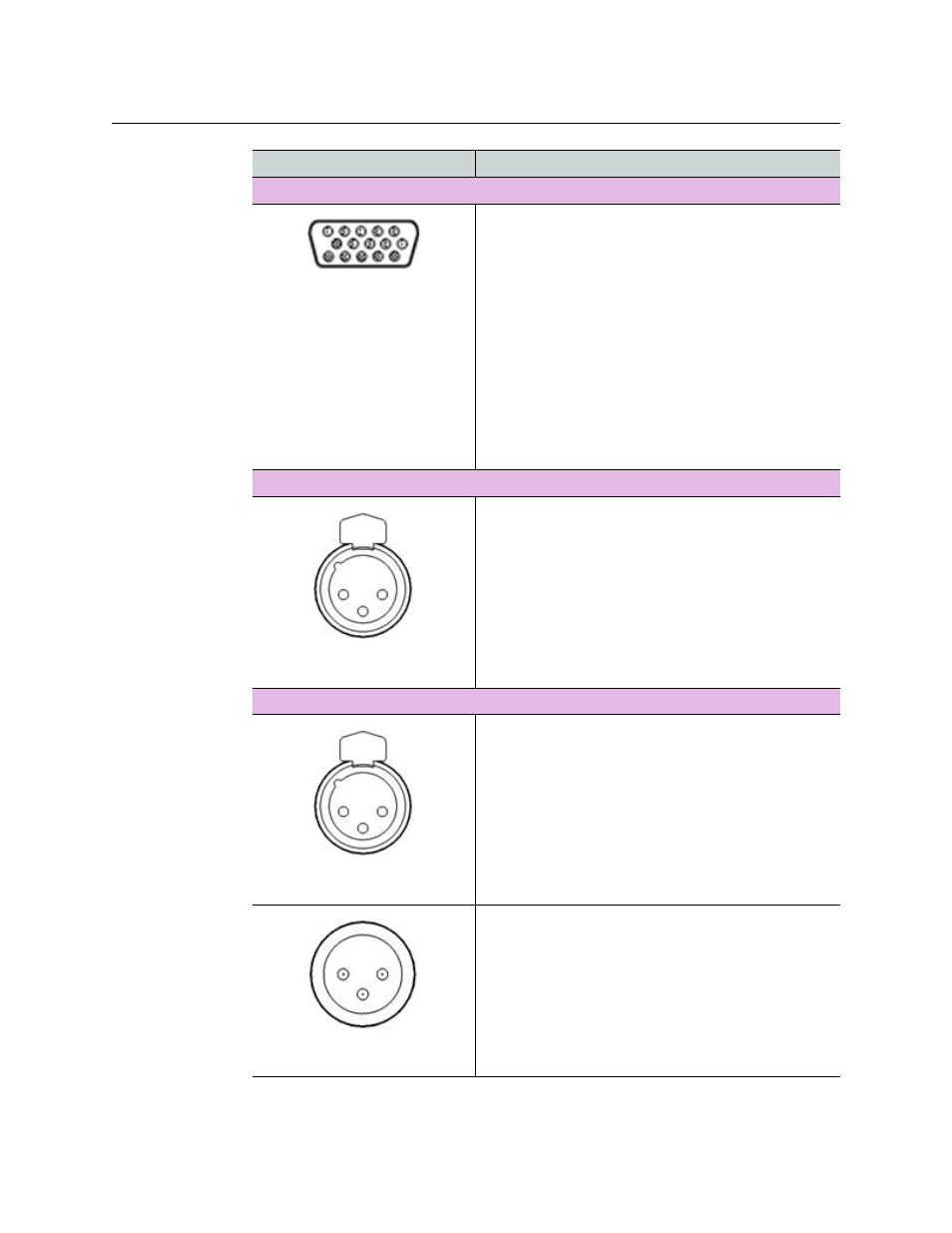

Tally/GPI/Data
Base Station #10
DB15HD Female
Format select (Pin 10)
Floating for RS-422 or TTL
Tie to GND (pin 5/7) for RS-232
Tie to +12VDC (pin 15) for RS-485
• Pin 1: Data 2 -422 Out
• Pin 2: Data 2 -422 In, -485 I/O
• Pin 3: Not Used
• Pin 4: GPI 1 In (Tally Red)
• Pin 5: GND
• Pin 6: Data 2 232 OUT, +422 Out
• Pin 7: GND
• Pin 8: Data 2 232 In, +422 In, +485 I/O
• Pin 9: GPI2 In (Tally Green)
• Pin 10: Data2 Format (see choices to the left)
• Pin 11: Data 3 RS232 In
• Pin 12: Data 3 RS232 Out
• Pin 13: GPI OUT A
• Pin 14: GPI OUT B
• Pin 15: +12VDC Bias for Format
Clear‐Com Intercom
Base Station #16 & 17
XLR3 Female (x2)
• Pin 1: Ground
• Pin 2: +VDC Power
• Pin 3: Power
RTS Intercom
Base Station #16
XLR3 Female
• Pin 1: Ground
• Pin 2: +VDC Power & Channel 1 Audio
• Pin 3: Channel 2 Audio
Base Station #17
XLR3 Male
• Pin 1: Ground
• Pin 2: +VDC Power & Channel 1 Audio
• Pin 3: Channel 2 Audio
Item Description
