LDK 4426 3G Camera Triax to 3G Fiber Converter User’s Guide (v2.0) 13
Chapter 1 - Installation
Chapter 1
Installation
1.1 Introduction
The 3G Camera Triax to 3G Fiber Converter is used to convert 3G Triax signals
coming from a camera with an LDK 5418 3G Triax adapter to dark fiber or hybrid
fiber signals that are routed to the LDK 4420 3G Twin Base Station. The hybrid fiber
version of the unit can also connect to an LDK 4410 3G Fiber Base Station.
1.2 Configurations
1.2.1 3G Triax to dark fiber

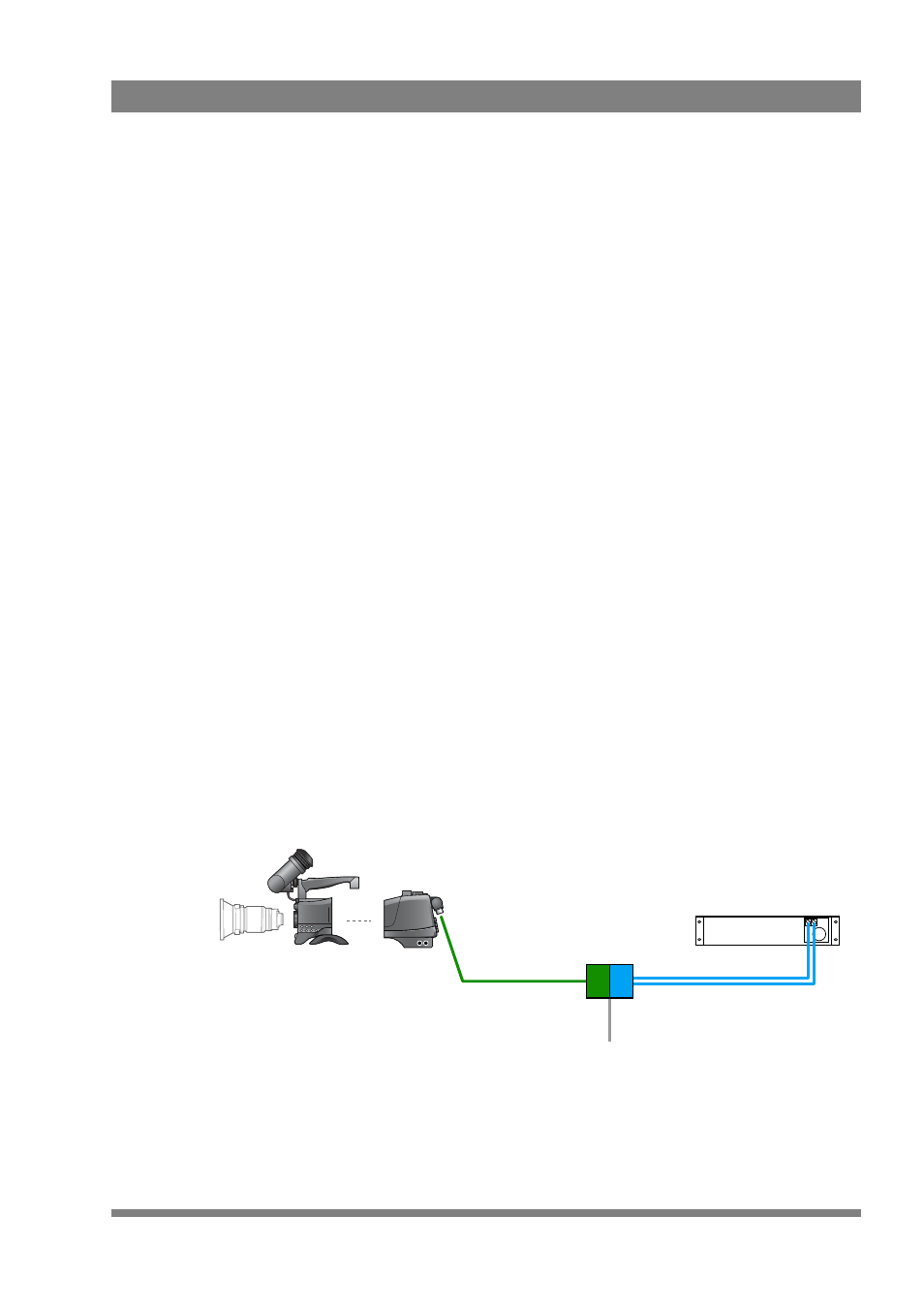

A studio camera with a 3G Triax adapter is connected to the converter with a Triax
cable.
Local power
LDK 4420
3G Twin Base
Station
Studio camera
with LDK 5418

3G Triax adapter
LDK 4426 3G
Camera Triax to
Fiber Converter
Dark fiber Triax
