LDK 4426 3G Camera Triax to 3G Fiber Converter User’s Guide (v2.0) 15
Chapter 1 - Installation

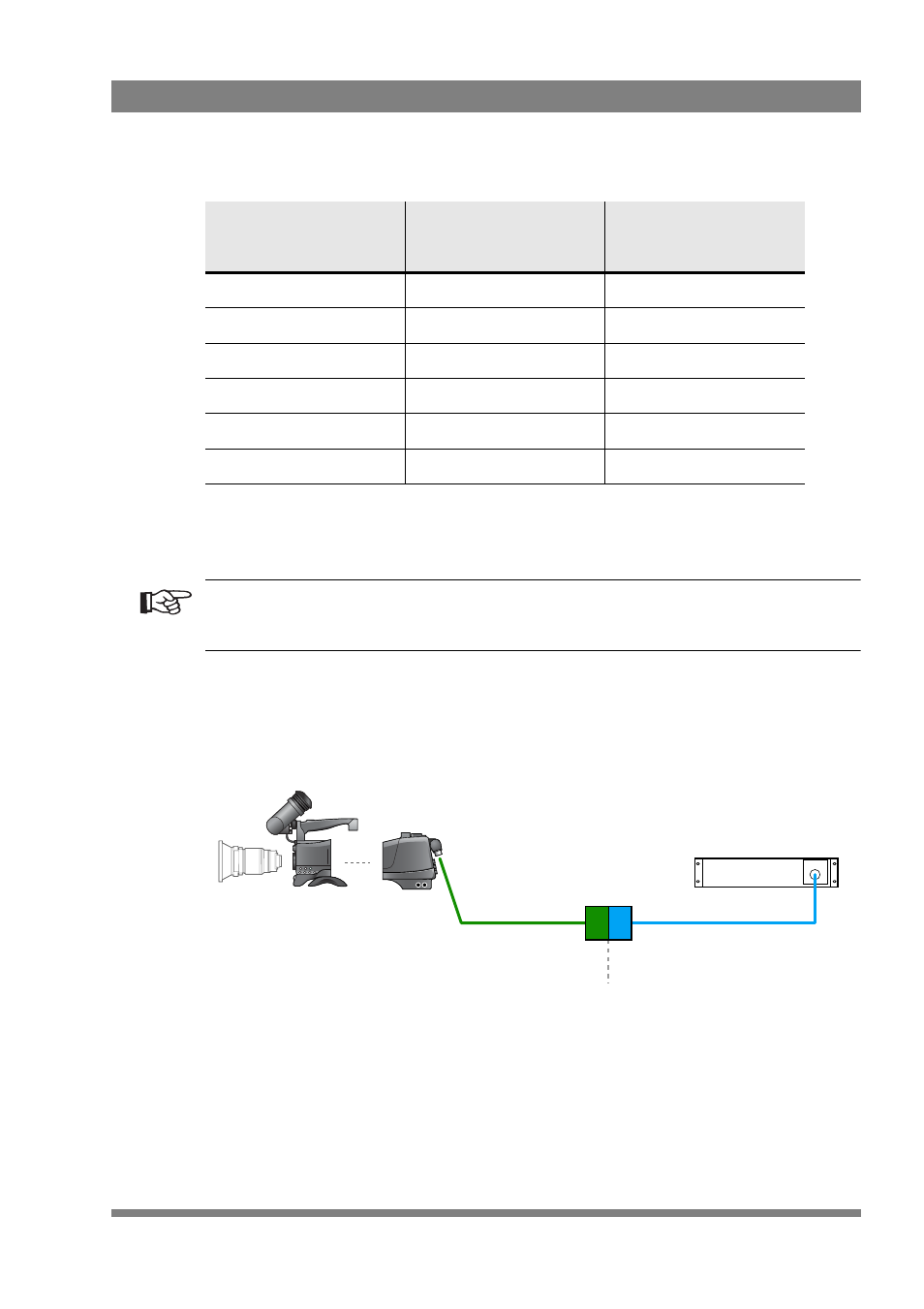

The following versions of the 3G Camera Triax to 3G Fiber Converter are available:
1.2.3 3G Triax to hybrid fiber (with LDK 4410)
Note
Transmission diagnostics are not fully supported with this configuration.
The converter can also be used to connect a 3G Triax equipped camera to an
LDK 4410 3G Fiber Base station using a hybrid fiber connection. Power can be
applied locally to the converter or via the hybrid fiber cable by the Base Station.
Product

version
Triax connector

(from camera)
Fiber connector

(to base station)
LDK 4426/00 Fisher Lemo (hybrid fiber)
LDK 4426/05 ARD Lemo (hybrid fiber)
LDK 4426/10 Lemo-4E Lemo (hybrid fiber)
LDK 4426/15 Lemo-3T Lemo (hybrid fiber)
LDK 4426/40 BBC Lemo Lemo (hybrid fiber)
LDK 4426/50 Trilock Lemo (hybrid fiber)
Local power
LDK 4410
3G Fiber Base
Station
Studio camera
with LDK 5418

3G Triax adapter
LDK 4426 3G
Camera Triax to
Fiber Converter
Hybrid fiber Triax
