20 LDK 4426 3G Camera Triax to 3G Fiber Converter User’s Guide (v2.0)
Chapter 2 - Operation
2.2 Transmission
2.2.1 Triax signal

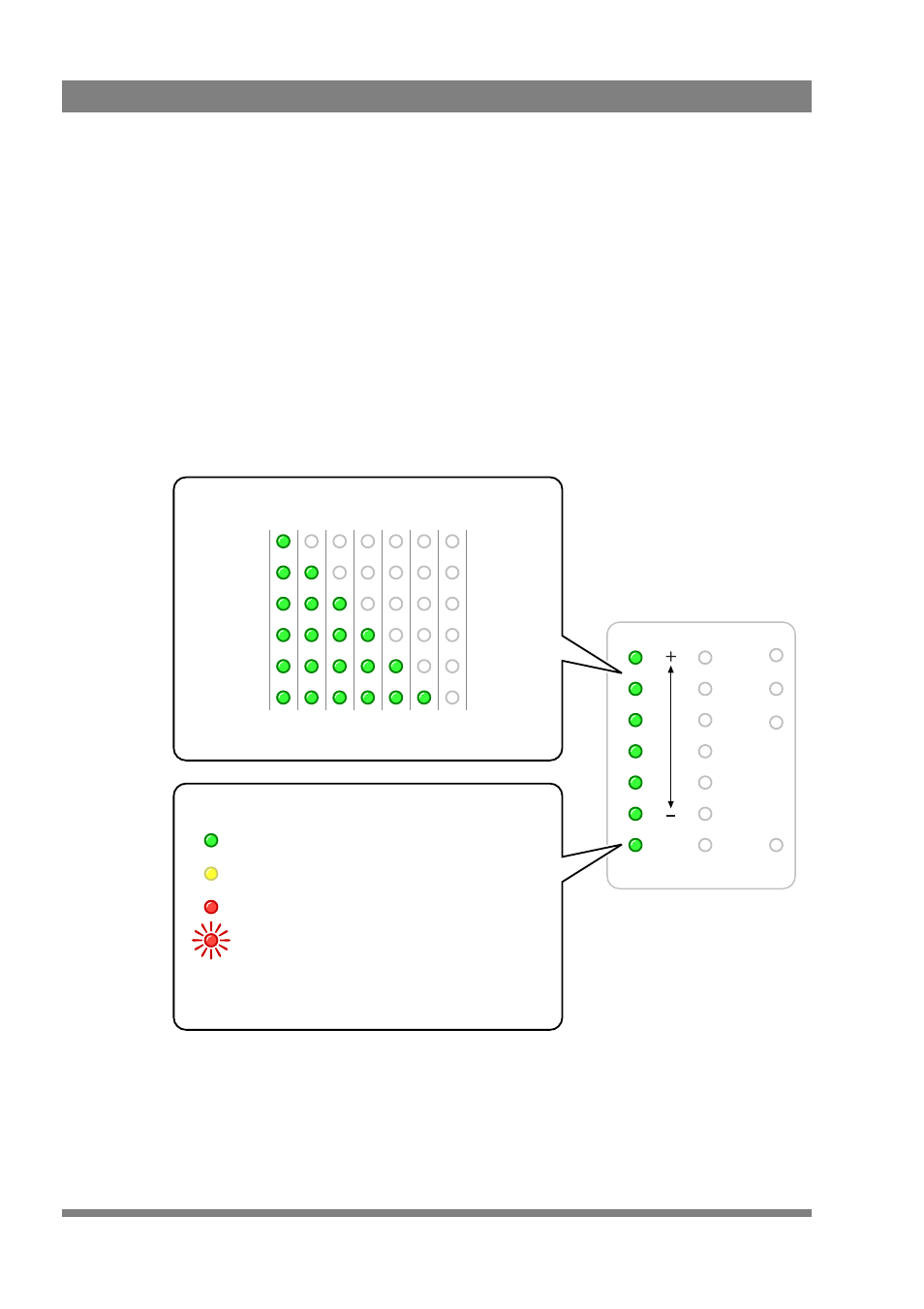

At the left side of the control panel, a vertical bar of six green lights show the cable
quality of the Triax connection between the camera and the convertor unit. More
lights mean better quality. When all six indicators are lit, transmission is optimal.
The values in the table below indicate the percentage of the nominal (100%) cable
length in use.
The indicator at the bottom provides signal status information about the Triax
connection between the convertor unit and the camera.
STATUS
BS
PWR
LOC
PWR
CAM
TST
CAM
CON
Good (< 100%) Poor (> 135%)
Triax signal status (camera > convertor):
Yellow: critical, check cabling
Red: error, check cabling
Red (flashing): no signal received

- No camera connected, or:

- Power switched off
Triax signal quality (camera > convertor):
Green: ok, normal operation
