LDK 4426 3G Camera Triax to 3G Fiber Converter User’s Guide (v2.0) 27
Chapter 3 - Specifications

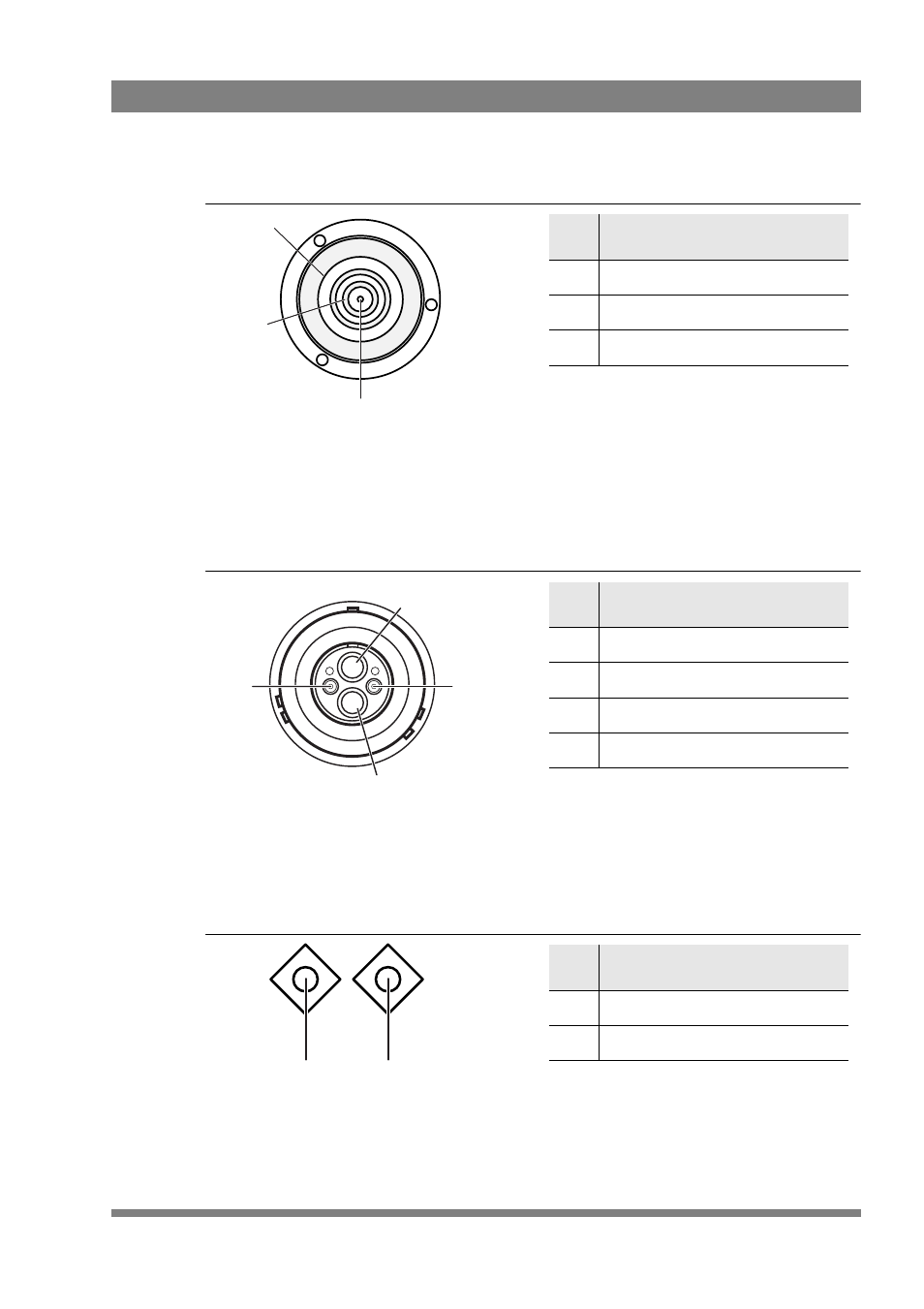

3.2.2 Triax connector
3.2.3 Fiber connector
Hybrid fiber connector
Dark fiber connectors
1
2
3
Pin Description
1 Inner pin: signal + power
2 Inner shield: Return
3 Outer shield: Housing
Various types available
Lemo hybrid fiber connector compliant
with SMPTE 304M.
Pin Description
1 Optic fiber channel A
2 Power supply return
3 Optic fiber channel B
4 Power supply
1
4 2
3
Various types available
A B
Cn Description
A Optic fiber A
B Optic fiber B
Various types available
