14

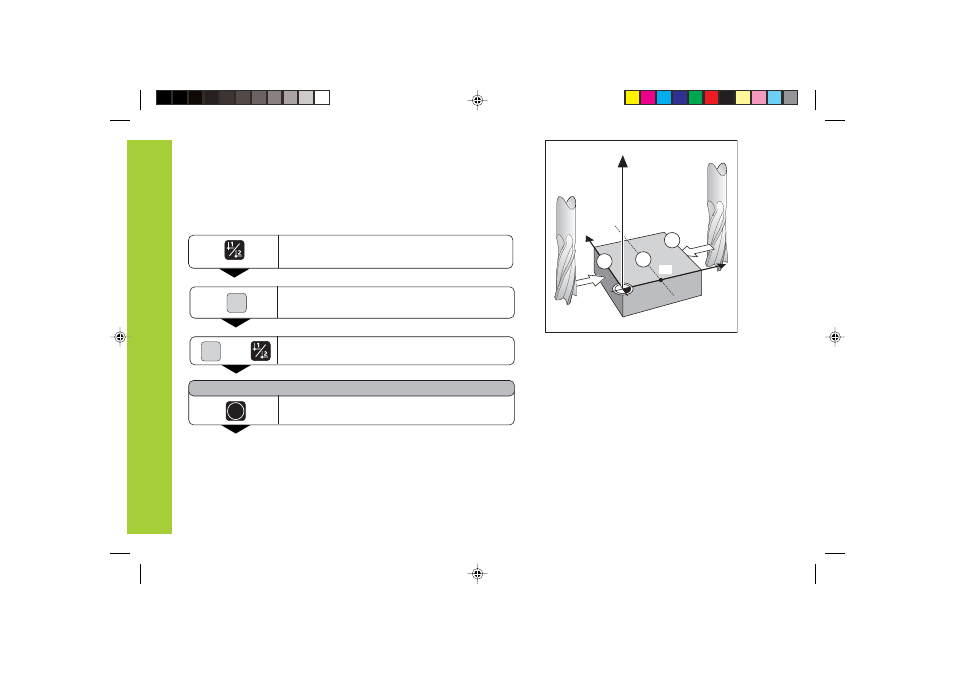

Probing workpiece edges to find a midpoint datum
The edges to be probed run parallel to the Y axis.
Follow the procedure below for all midpoints between two edges:
Datum Setting
Select the special functions.
SPEC
FCT
•
•
•
Select the probing function.
PROBING
ENT
Confirm selection.
SPEC
FCT
or
Select a datum number (see page 10).
Y
X
2
1
Z
M
X?
