HEIDENHAIN iTNC 530 91
3.8 UNIVER
SAL PECKING
(Cy
c
le
205, DIN/ISO:
G205)

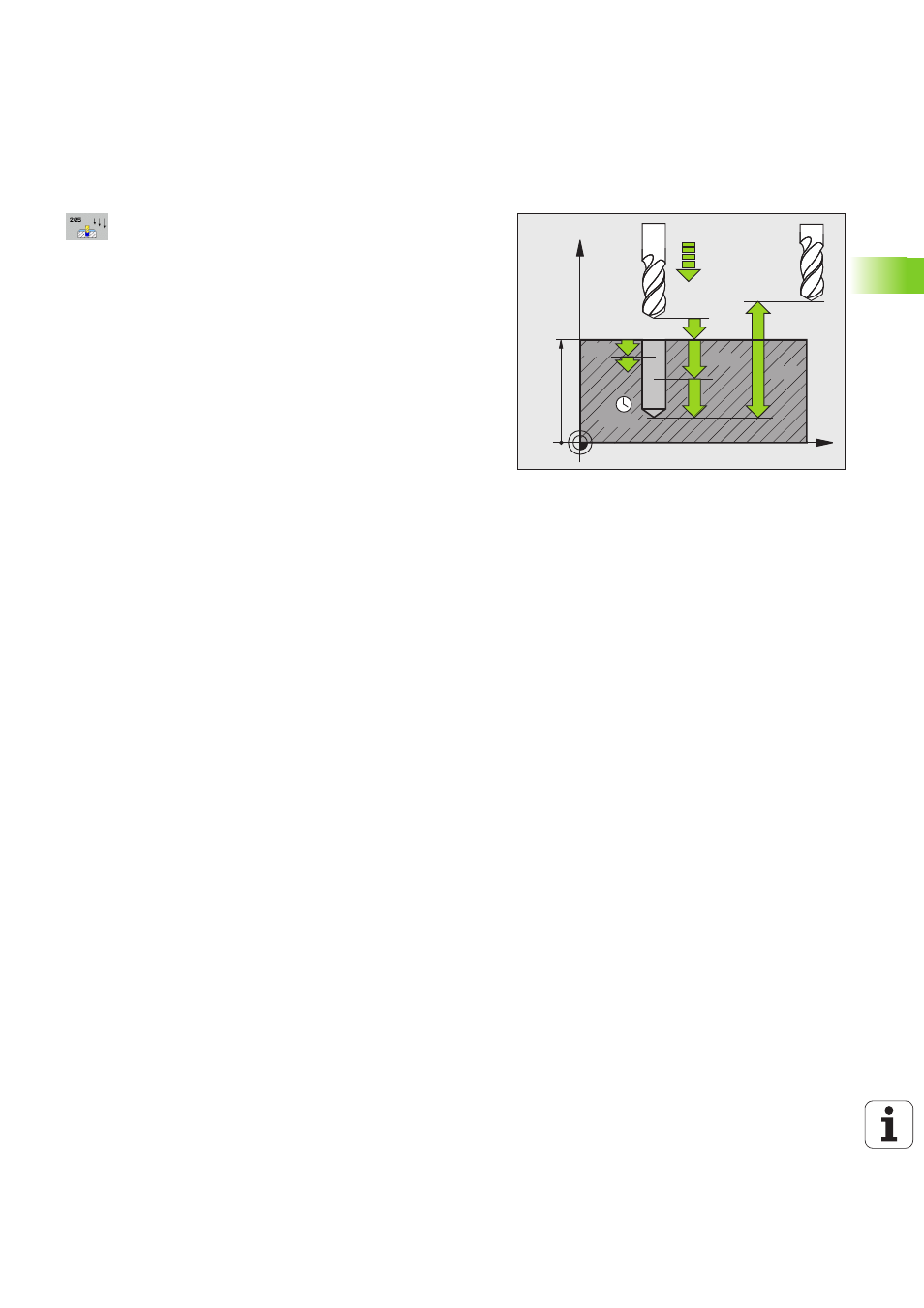

Cycle parameters
 Set-up clearance Q200 (incremental): Distance
between tool tip and workpiece surface. Input range
0 to 99999.9999; alternatively PREDEF
 Depth Q201 (incremental): Distance between
workpiece surface and bottom of hole (tip of drill
taper). Input range -99999.9999 to 99999.9999
 Feed rate for plunging Q206: Traversing speed of
the tool in mm/min during drilling. Input range 0 to
99999.999; alternatively FAUTO, FU
 Plunging depth Q202 (incremental): Infeed per cut.
Input range 0 to 99999.9999. The depth does not
have to be a multiple of the plunging depth. The TNC
will go to depth in one movement if:
 the plunging depth is equal to the depth
 the plunging depth is greater than the depth
 Coordinate of workpiece surface Q203 (absolute):
Coordinate of the workpiece surface. Input range
-99999.9999 to 99999.9999
 2nd set-up clearance Q204 (incremental): Coordinate
in the spindle axis at which no collision between tool
and workpiece (fixtures) can occur. Input range 0 to
99999.9999; alternatively PREDEF
 Decrement Q212 (incremental): Value by which the
TNC decreases the plunging depth Q202. Input range
0 to 99999.9999
 Minimum plunging depth Q205 (incremental): If you
have entered a decrement, the TNC limits the
plunging depth to the value entered with Q205. Input
range 0 to 99999.9999
 Upper advanced stop distance Q258 (incremental):
Set-up clearance for rapid traverse positioning when
the TNC moves the tool again to the current plunging
depth after retraction from the hole; value for the first
plunging depth. Input range 0 to 99999.9999
 Lower advanced stop distance Q259 (incremental):
Set-up clearance for rapid traverse positioning when
the TNC moves the tool again to the current plunging
depth after retraction from the hole; value for the last
plunging depth. Input range 0 to 99999.9999
X
Z
Q200
Q201
Q206
Q202
Q203
Q204
Q211
Q257
