14.8 Compensating workpiece misalignment with 3-D touch probe
(Software-Option Touch probe functions)
14
440
TNC 620 | User's Manual for DIN/ISO Programming | 3/2014
Displaying a basic rotation

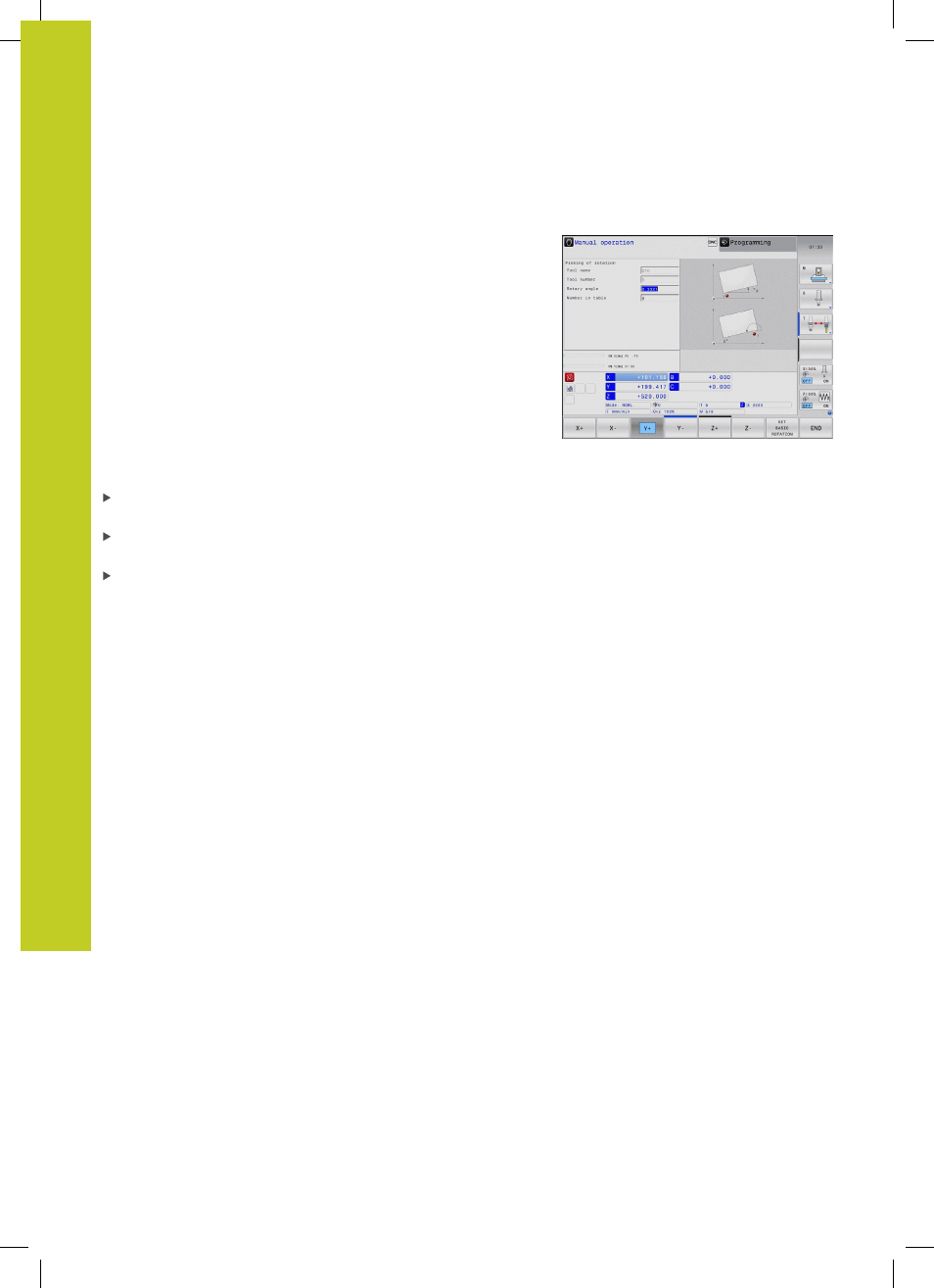

When you select the PROBING ROT function, the TNC displays
the active angle of basic rotation in the dialog Rotation angle. The
TNC also displays the rotation angle in the additional status display
(
STATUS POS.).
In the status display a symbol is shown for a basic rotation
whenever the TNC is moving the axes according to a basic rotation.
Canceling a basic rotation
Select the probe function by pressing the PROBING ROT soft
key
Enter a rotation angle of zero and confirm with the
SET BASIC
ROTATION soft key
Terminate the probe function by pressing the END soft key
