5 New and Modified Software Functions
14 YASKAWA ELECTRIC EZZ020793 1000 Hz High Frequency Custom Software Supplement
Figure 2
Figure 2 Torque Compensation Gain
◆
On-Delay Compensation
High speed motors typically operate at low V/f ratios compared to standard 60/120 Hz
motors, and On-Delay Compensation settings may adversely affect the motor voltage and
cause hunting and oscillation. Therefore, On-Delay Compensation Gain is modified to
reduce its effectiveness above 120 Hz as shown in Figure 3 .
Note: When S1-01 = 0, On-Delay Compensation is disabled at all frequencies.

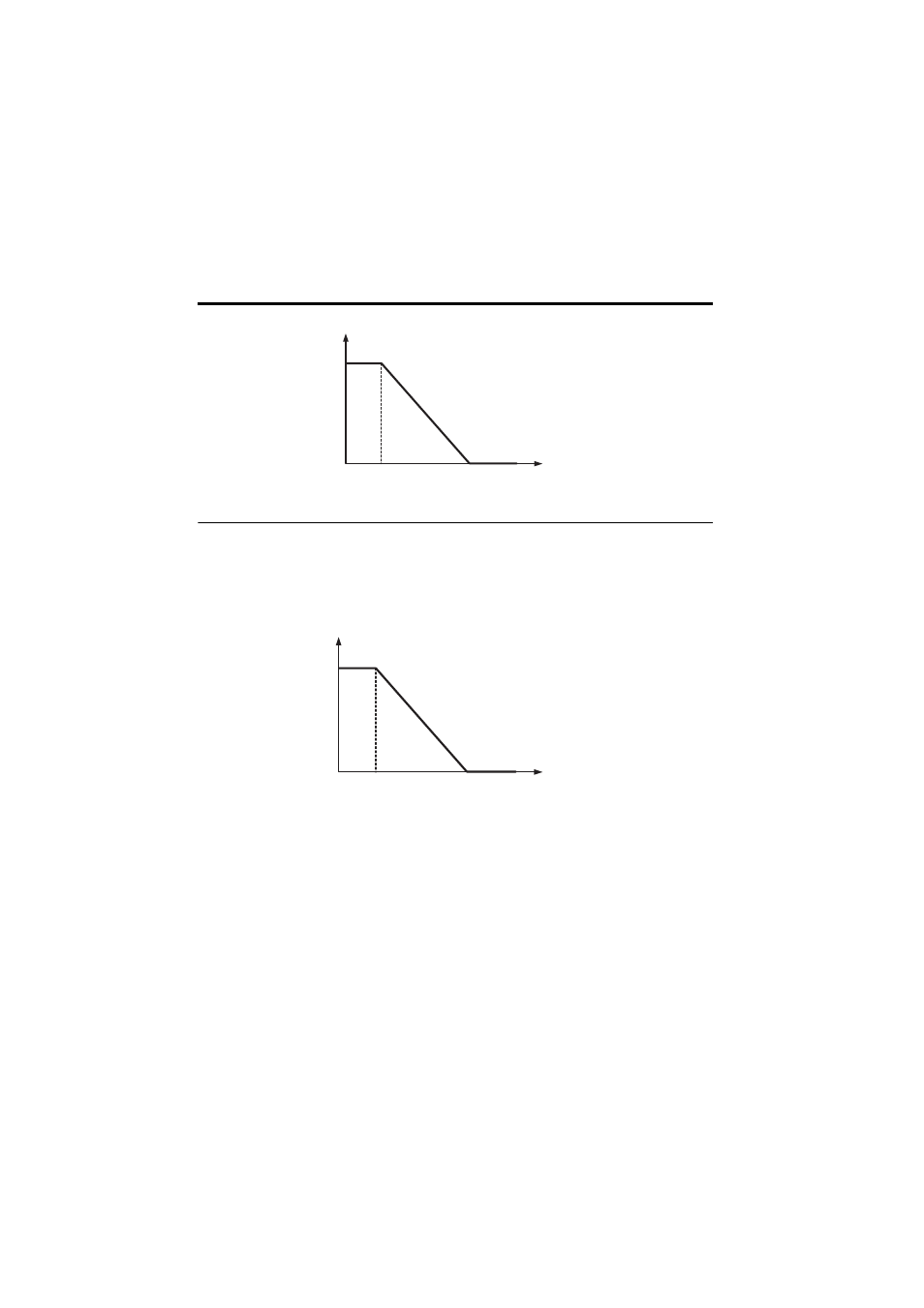

Figure 3
Figure 3 On-Delay Compensation Gain
C4-01
120 Hz
Output
Frequency
(Fout) 160 Hz 0
1.00
120 Hz
Output
Frequency
(Fout) 160 Hz 0
