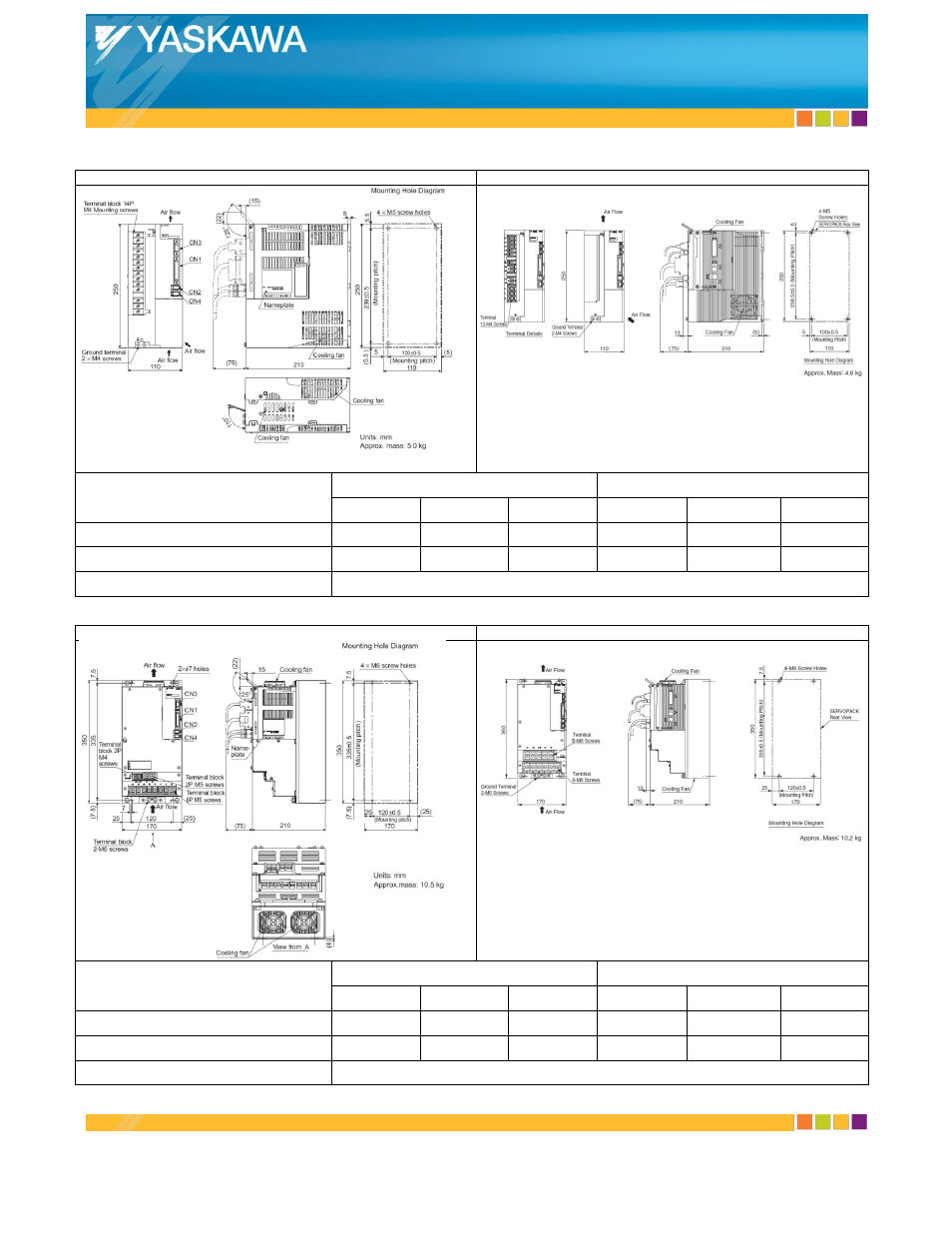

Three-phase 200 VAC, Model: SGDS-50A
A
Three-phase 200 VAC, Model: SGDV-330A
A
Amplifier
Overall Dimensions
Mounting Dimensions
Height (mm)
Width (mm)
Depth (mm)
Vertical Pitch
Horizontal Pitch
Hole Type
SGDS-50A
A
250
110
(285)
238.5
100
4 x M5
SGDV-330A
A
250
110
(285)
238.5
100
4 x M5
Applicable Adapter Plate
Not Required.
Three-phase 200 VAC, Model: SGDS-60A
A and -75A
A
Three-phase 200 VAC, Model: SGDV-470A
A and -550A
A
Amplifier
Overall Dimensions
Mounting Dimensions
Height (mm)
Width (mm)
Depth (mm)
Vertical Pitch
Horizontal Pitch
Hole Type
SGDS-60A
A and -75A
A
350
170
(285)
335
120
4 x M6
SGDV-470A
A and -550A
A
350
170
(285)
335
120
4 x M6
Applicable Adapter Plate
Not Required.
