Doc#: TG.MCD.11.421
Yaskawa America, Inc. Drives & Motion Division
2011
June 6, 2011
Page 8 of
21

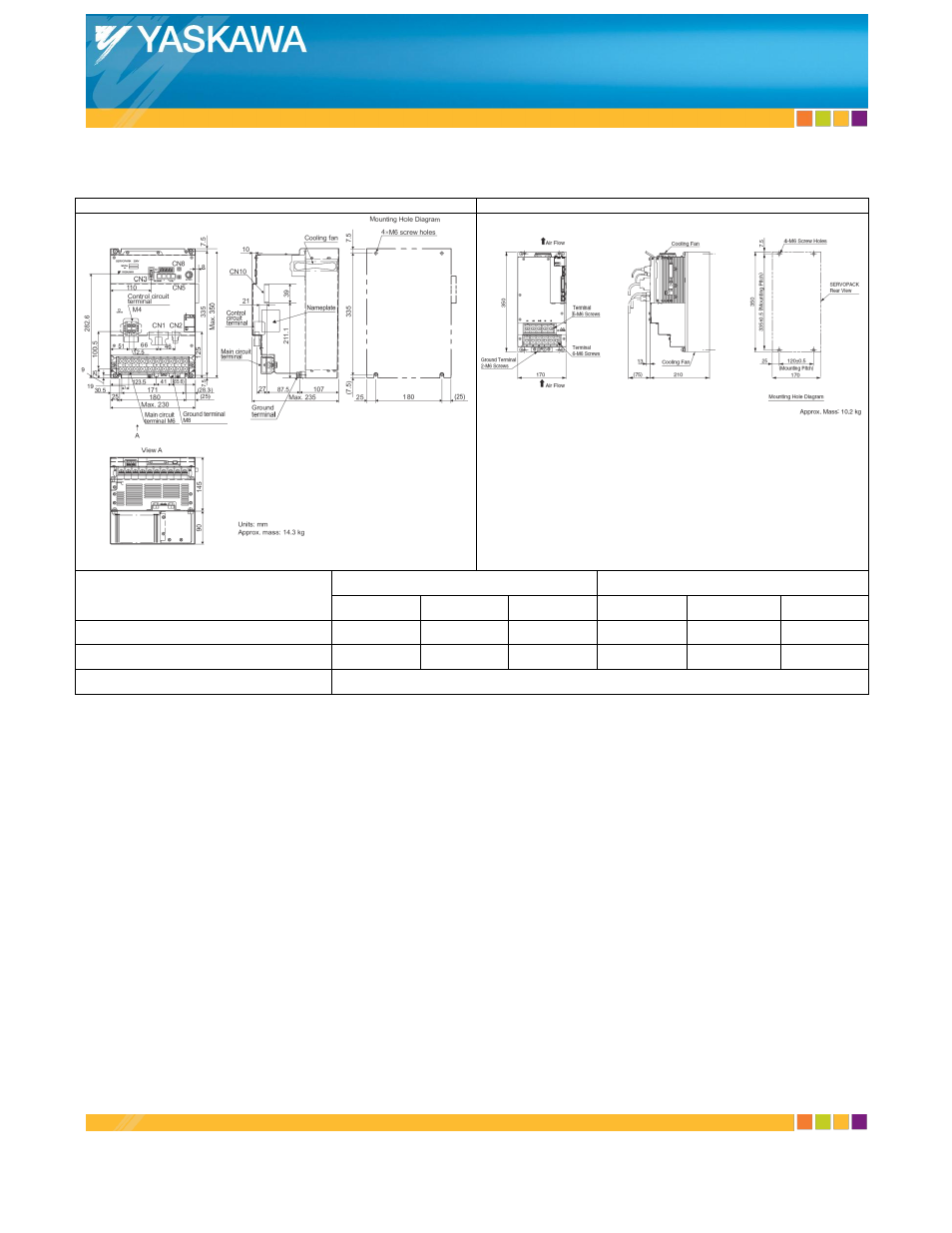

Three-phase 200 VAC, Model: SGDH-60AE and -75AE
Three-phase 200 VAC, Model: SGDV-470A
A and -550A
A
Amplifier
Overall Dimensions
Mounting Dimensions
Height (mm)
Width (mm)
Depth (mm)
Vertical Pitch
Horizontal Pitch
Hole Type
SGDH-60AE and -75AE
350
230
235
335
180
4 x M6
SGDV-470A
A and -550A
A
350
170
(285)
335
120
4 x M6
Applicable Adapter Plate
Part Number: S5-ADP-06
