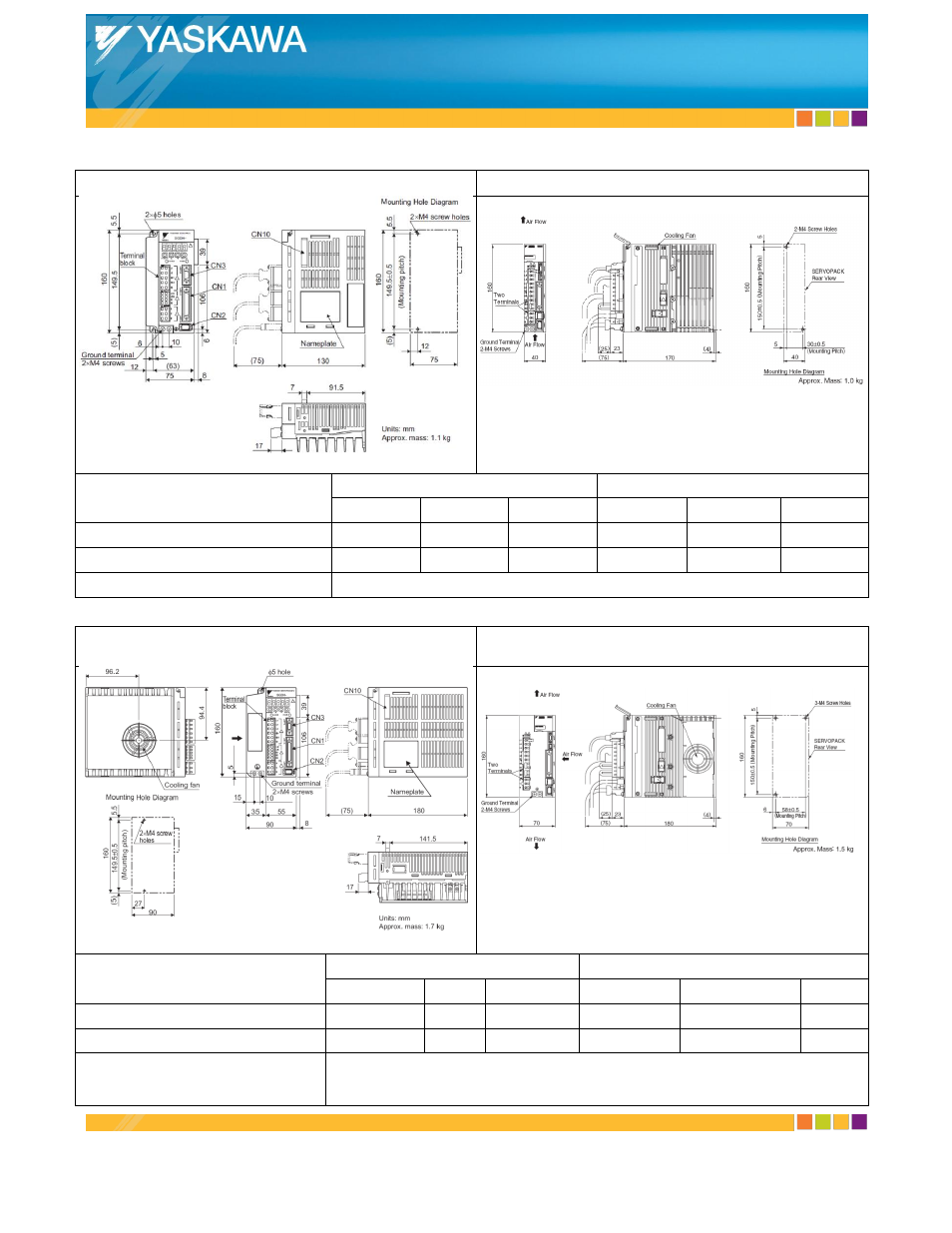

Single-phase 200 VAC, Model: SGDH-04AE
Three-phase 200 VAC, Model: SGDV-2R8A
A*
*These amplifiers can be powered with single or three-phase.
Amplifier
Overall Dimensions (mm)
Mounting Dimensions (mm)
Height
Width
Height
Vertical Pitch
Horizontal Pitch
Hole Type
SGDH-04AE
160
75
(205)
149.5
n/a
2 x M4
SGDV-2R8A
A
160
40
(245)
150
30
2 x M4
Applicable Adapter Plate
Part Number: S5-ADP-01
Three-phase 200 VAC, Model: SGDH-05AE, -08AE and -10AE
Single-phase 220 VAC, Model: SGDH-08AE-S
Three-phase 200 VAC, Model: SGDV-3R8A
A*, -5R5A
A* and
-7R6A
A
* These amplifiers can be powered with single or three-phase.
Amplifier
Overall Dimensions (mm)
Mounting Dimensions (mm)
Height
Width
Height
Vertical Pitch
Horizontal Pitch
Hole Type
SGDH-05AE, -08AE,-08AE-S and -10AE
160
90
(255)
149.5
n/a
2 x M4
SGDV-3R8A
A, -5R5A
A and -7R6A
A
160
70
(255)
150
58
3 x M4
Applicable Adapter Plate
Part Number: S5-ADP-02
Adapter plate requires two button head screws to mount plate to existing mounting holes in panel.
