System Components
Chapter 2
Embedded and Industrial Computing
Component Description Pin Definition Reference
R1 Power output (DC) to the
LVC-5770 System
9~36V, 10A (GND, Power-Out)
Integrated in 1x 5-pin terminal block.
The output port on the connector
will supply power to the LVC-5770
system.
POWER_CON1 on page 28
R2 Power Output (DC) The output port of this connector can
bypass power from the input port
(see R3) to supply additional 9~36V
power for other uses.
POWER_CON3 on page 28
R3 Power Input (DC) with
Ignition control
Power-in with ignition support. The
LVC-5770 support a wide range of
power input (+9V ~ +36) including
the prevalent 12V and 24V vehicular
power system. It has a 2KV ESD
protection on the DC input and
ignition line.
POWER_CON2 on page 28
R4 LED Green: On means that PoE Power 48V
port is connected (refer to R3 on the
rear panel)
Yellow: On means that car ignition is
turned on.
The power board also equips with jumpers that can be switched to enable or disable automatic power
management control.
Power Adaptor
The system comes with a power adaptor that is capable to transfer power input from 9~36VDC to 48VDC
output.

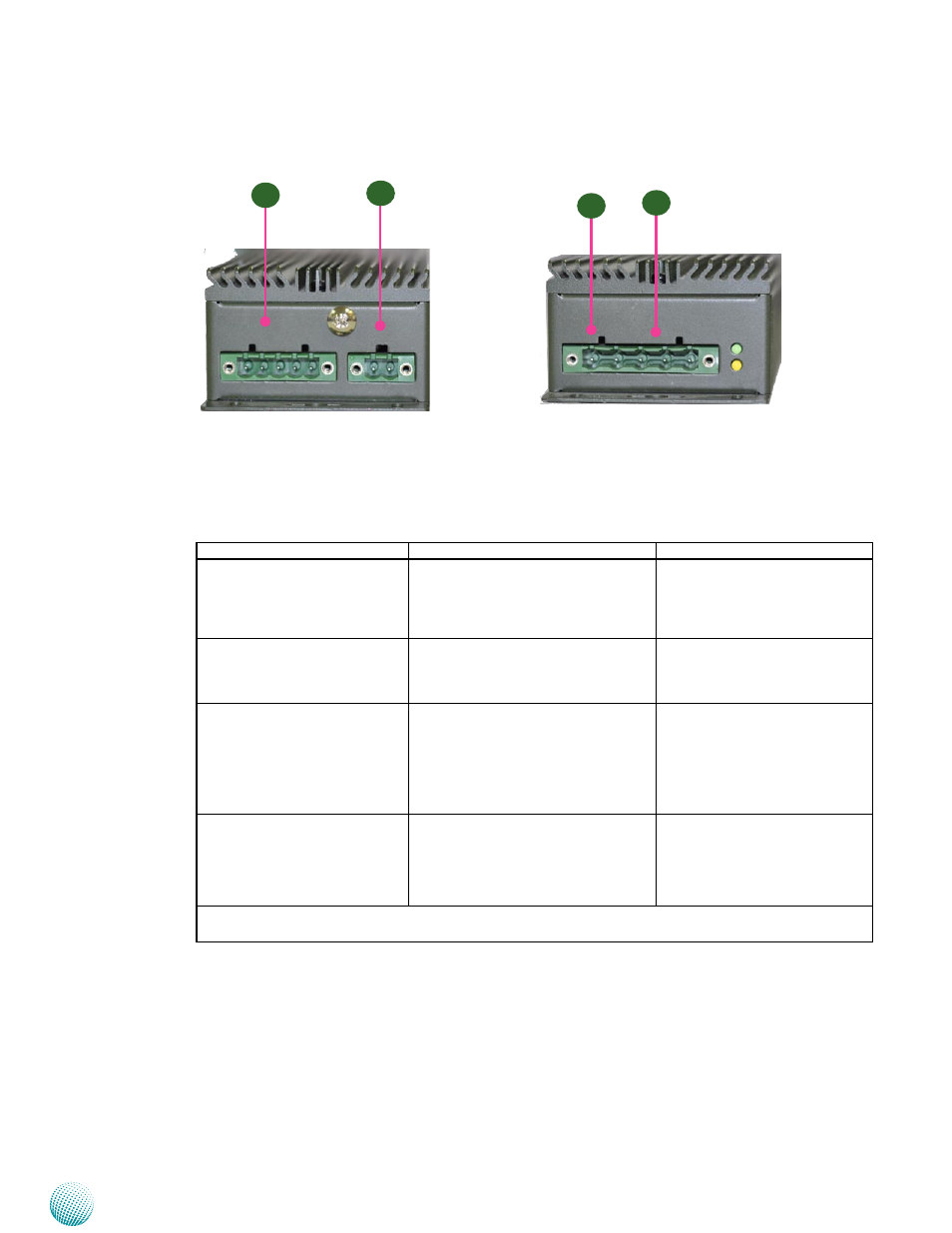

R1 R2
R3 R4
PoE Power PC Power
48V 9~36 Bypass
Aux Power
9~36V Bypass
Output1 - + IG - + Output2 - + Output3
Vehicle Power (12V/24V) w/ Ignition
Input Range: 9~36VDC
48V
IG
IG - + - +
