Note: To remove the SIM card, slide the card
reader outward to unlock it.

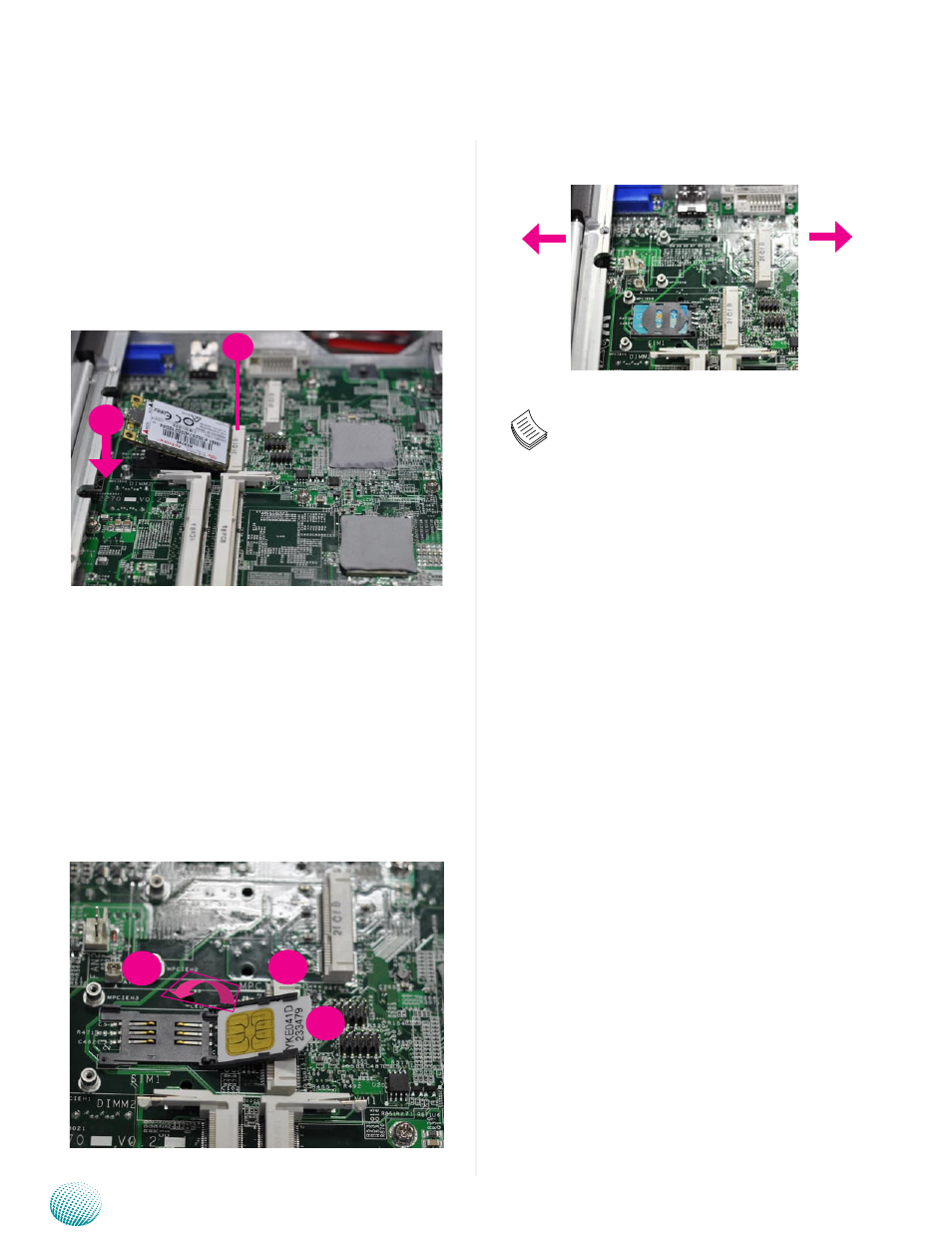

Wireless Module Installation
Align the wireless module’s key with the Mini-PCIe slot 1.
notch.
Insert the wireless module into the connector
2.
diagonally.
Push down the wireless module and then tighten it
3.
with the screws.
3G SIM Card Installation
Unlock the SIM card reader first by sliding it outward. 1.
Flip the SIM card reader diagonally. 2.
Place the SIM card in the reader. The angled corner of 3.
the SIM ensures that the card fits only the correct way
in the reader. Make sure the ICs will be in contact with
the SIM card reader.
Insert the
4. SIM card into the reader and close the tray.
You should feel a click when the SIM card is locked
securely in the SIM card reader.
Lock
Unlock
2
3
2
3
4
