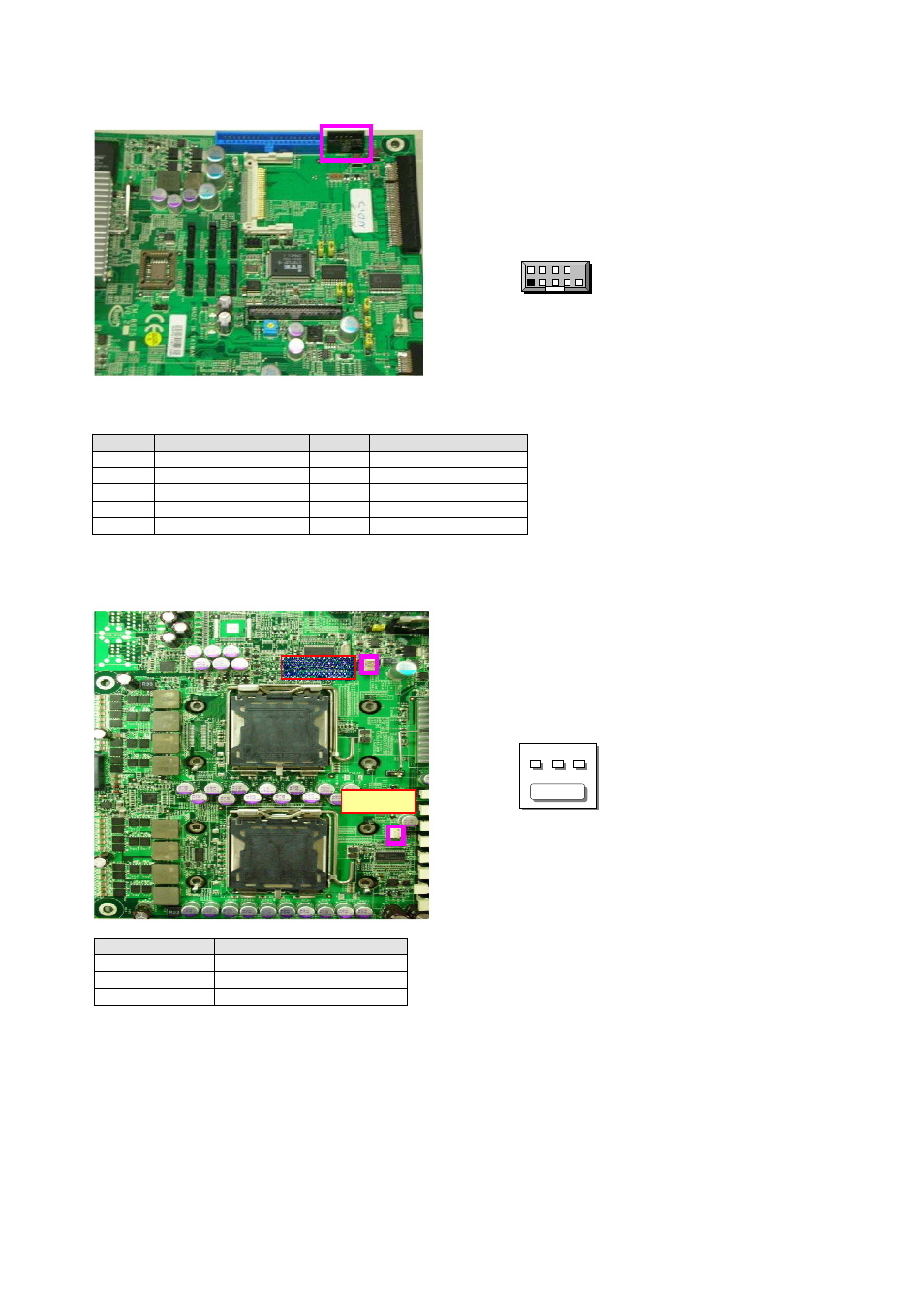

FPIO1：9Pin Front Panel Connector (2.54mm)
2
10
1
9
FPIO1
PIN NO DESCRIPTION
PIN NO DESCRIPTION
1
HDD_LEDH
2
SP_LEDH
3
HDD_LEDL
4
SP_LEDL
5
Ground
6
Ground
7
FP_RST#_N
8
PS_ON#
9
NMI_N
10
KEY
CPUFAN1／AUXFAN1：3Pin Smart FAN Header
CPUFAN1
1
2
3
AUXFAN1
PIN NO
DESCRIPTION
1
Ground
2
VFAN1~2
3
FAN Speed
