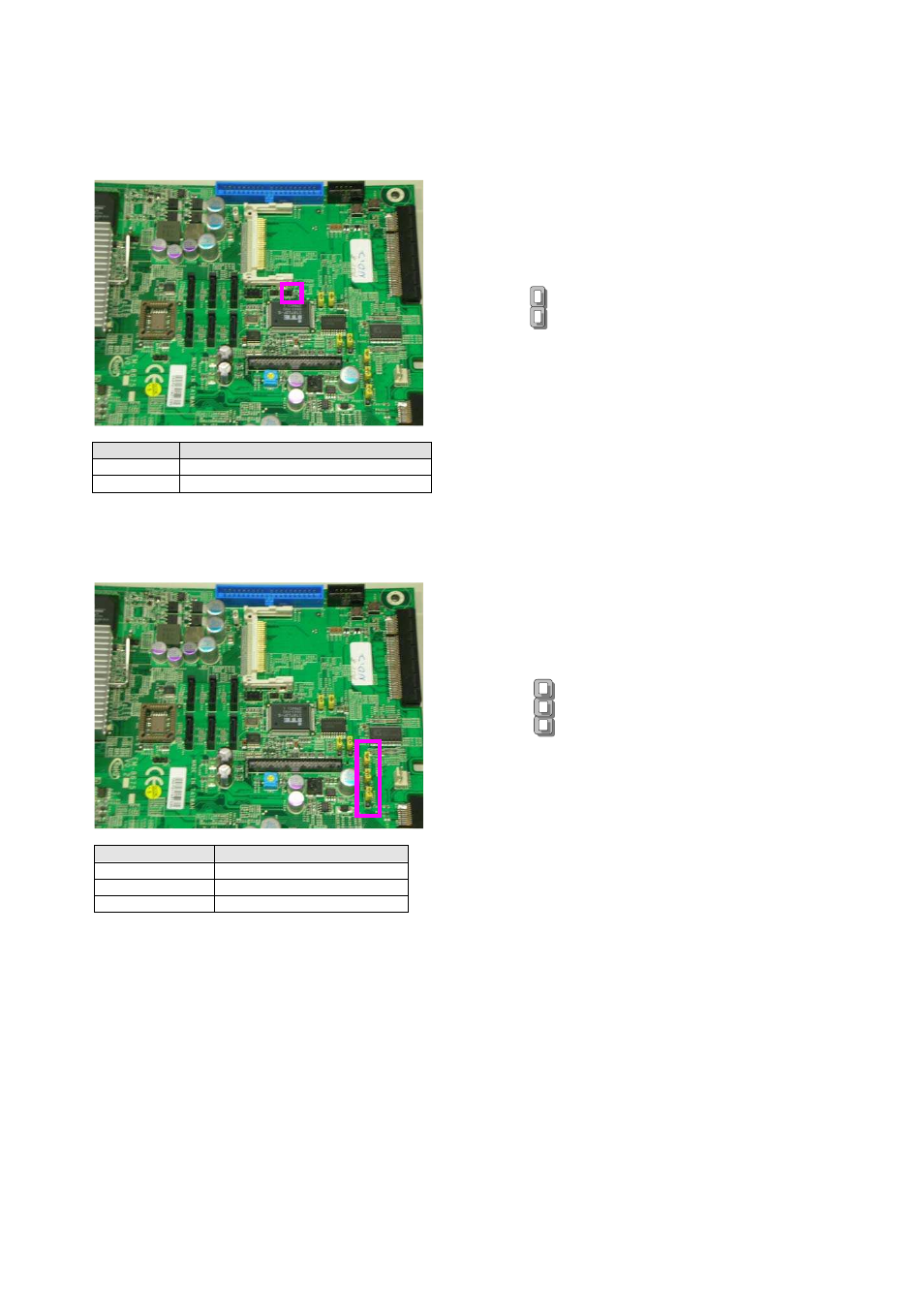

JP15：1x2 Pin For SIO GPIO Pin (2.54mm)
1
2
PIN NO. DESCRIPTION
1 Ground
2 IT8712F GP17
JP16~JP18：1x3 Pin Select Bypass Function (2.54mm)
3
1
JP16
JP17
JP18
PIN NO. DESCRIPTION
1 IT8712F(GP32~34)
2 PCIEC3~5 Pin B12
3 Ground
Default (1-2，Bypass Enable)
