20

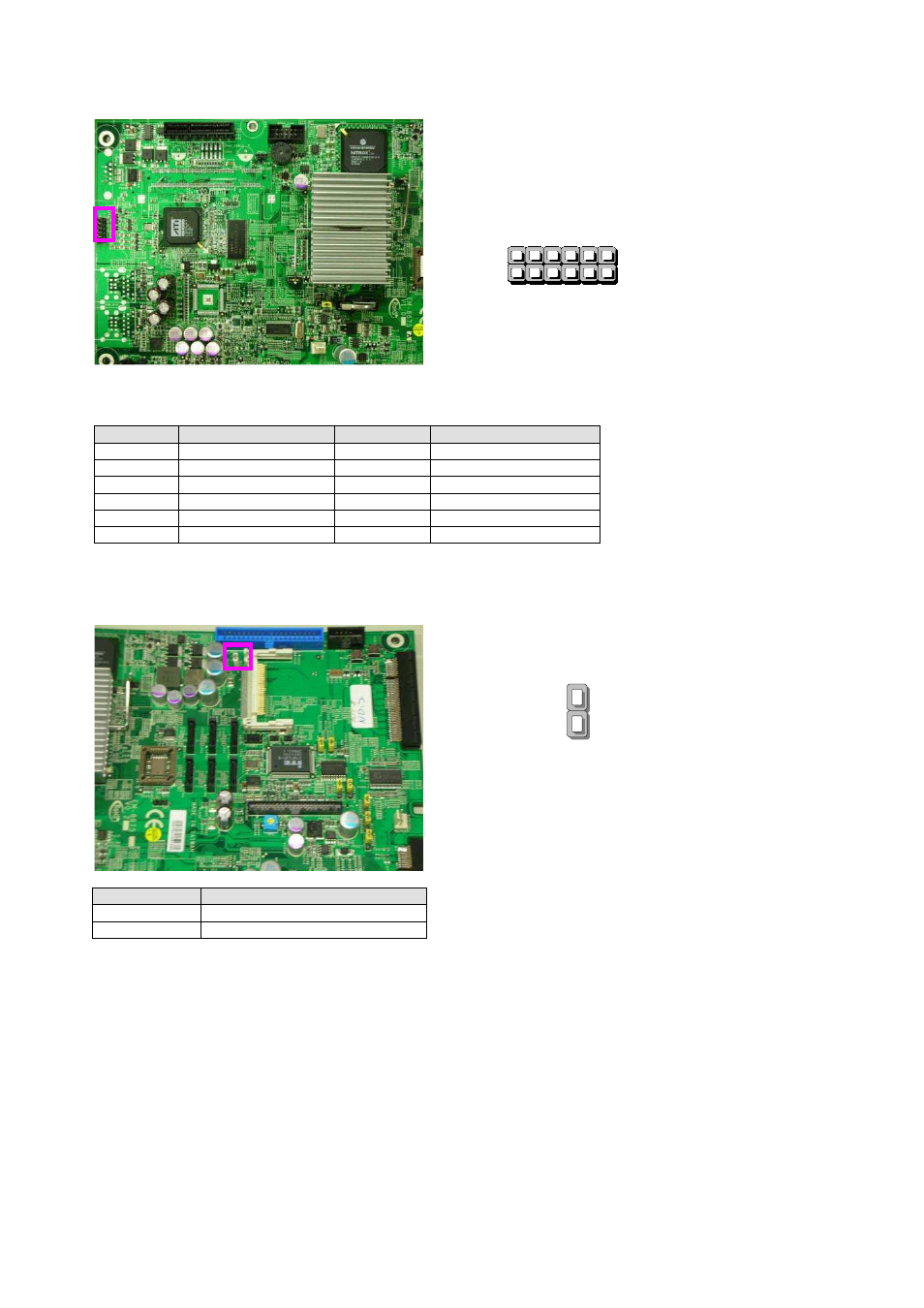

VGA1: External VGA Connector (12 Pin Header)
2 12
1 11
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 R 2 Ground
3 G 4 Ground
5 B 6 Ground
7 H-SYNC 8 Ground
9 V-SYNC 10 Ground
11 Detect-display Data 12 Deteck-display CLOCK
JP1：1x2 Pin Compact Flash Mode (2.54mm)
1
JP1
2
Default JP1 (1-2)
PIN NO. DESCRIPTION
OPEN Slave
SHORT Master
