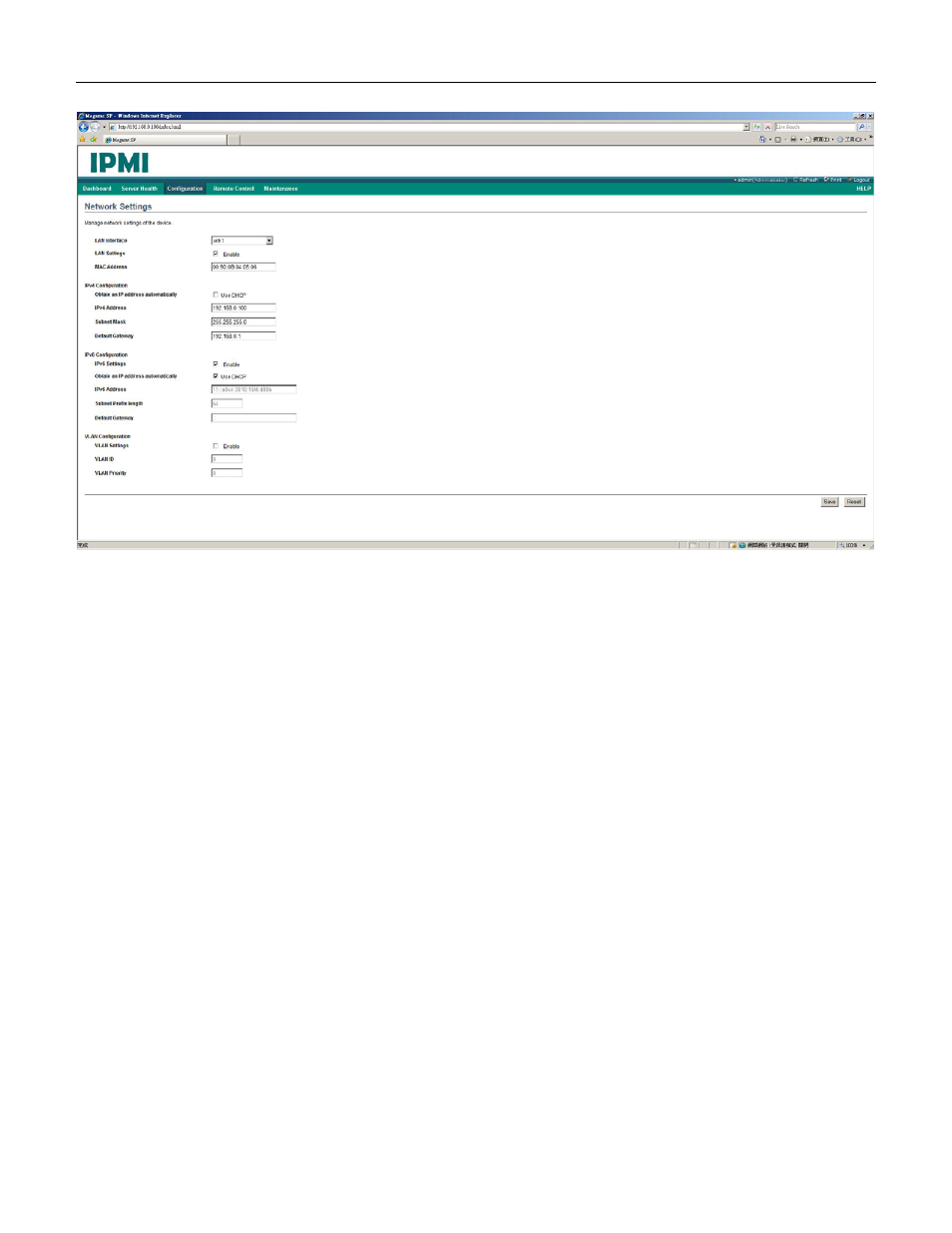

To configure the network settings of the LAN interface for the IPMI service, follow these steps:
1. Select the designated Ethernet interface for IPMI. The MAC address will be displayed automatically.
2. For IPV4 Configurations :
Use either one of the following connection method:
Obtain an IP Address automatically : This option is to dynamically configure IPv4 address using DHCP
(Dynamic Host Configuration Protocol).
Enter the IP Address . This defines the IP address of local port and it has to be a private one. For example,
10.x.x.x or 192.x.x.x may be chose as they are reserved for LAN use.
Enter the Subnet Mask and the default gateway’s IP address.
3. For IPv6 Configurations:
IPv6 Settings : This option is to enable the IPv6 settings in the device.
Obtain an IPv6 address automatically : This option is to dynamically configure IPv6 address using DHCP
(Dynamic Host Configuration Protocol).
IPv6 Address : To specify a static IPv6 address to be configured to the device. Eg: 2001:db8:3333:4444:
5555:6666:7777:8888
Subnet Prefix length : To specify the subnet prefix length for the IPv6 settings. Enter an integer between
1-128
Default Gateway : Specify v6 default gateway in IPv6 address format.
4. VLAN Configuration:
VLAN Settings : Check this box to enable the VLAN support for selected interface.
VLAN ID : The Identification for VLAN configuration. Enter an integer between 1 to 4095.
