Lanner IPMI - Manual (Page 23)

Version 1.0
21

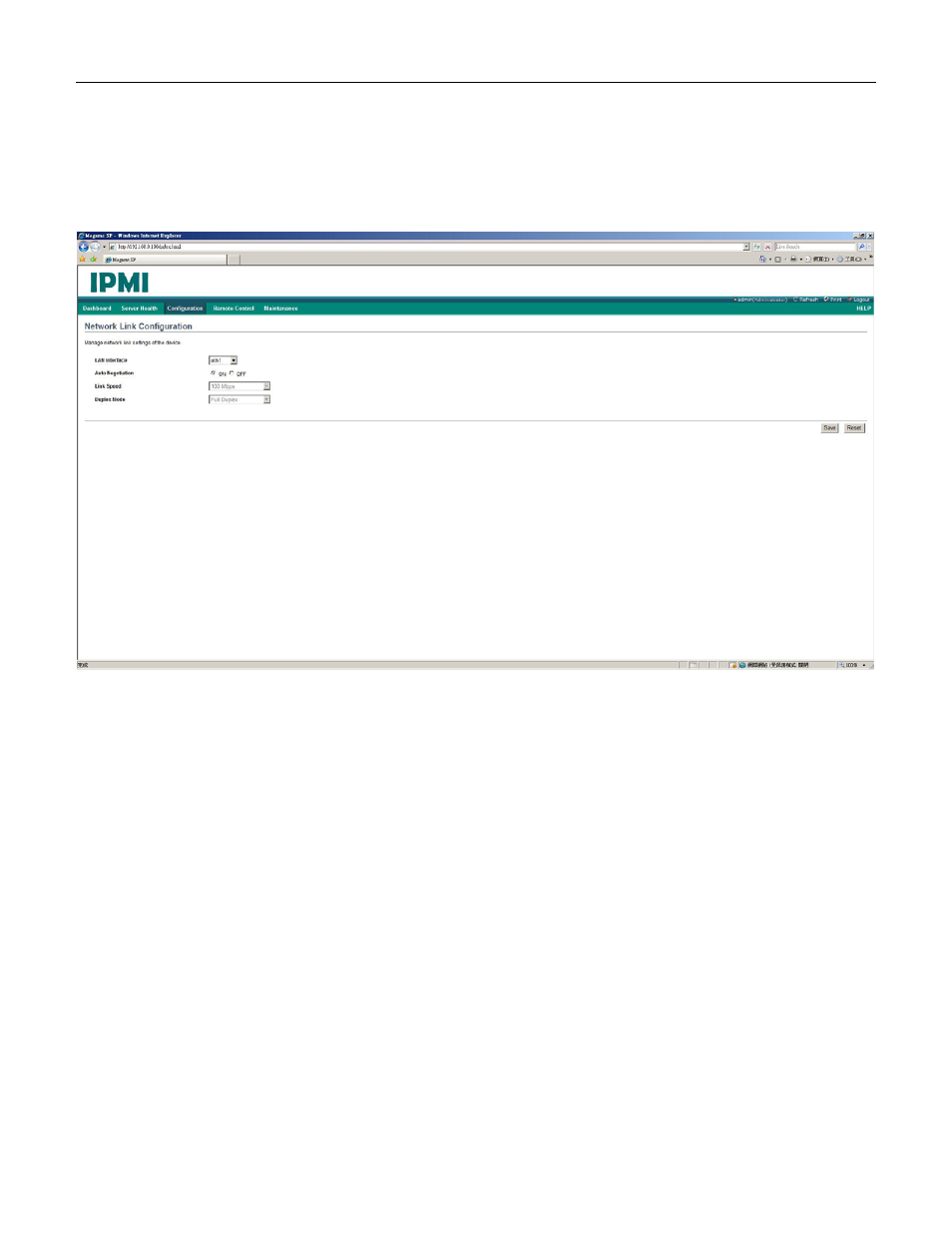

5.4 Network Link
The network link configures the data link settings for the IPMI network communication.
To configure the network link settings, follow these steps:
1. LAN Interface: Select the required network interface from the list with which the Link speed and duplex
mode can be configured.
2. Auto Negotiation: Select this option to allow the device to perform automatic configuration to achieve the
best possible mode of operation (speed and duplex) over a link. Or your can enter the information manually
as described below.
3. Link Speed: Select the supported capabilities of the network interface. It can be 10/100/1000 Mbps.
4. Duplex Mode: The Duplex Mode could be either Half Duplex or Full Duplex.
5. Save: Click to save the settings or click Reset to reset the modified changes.
