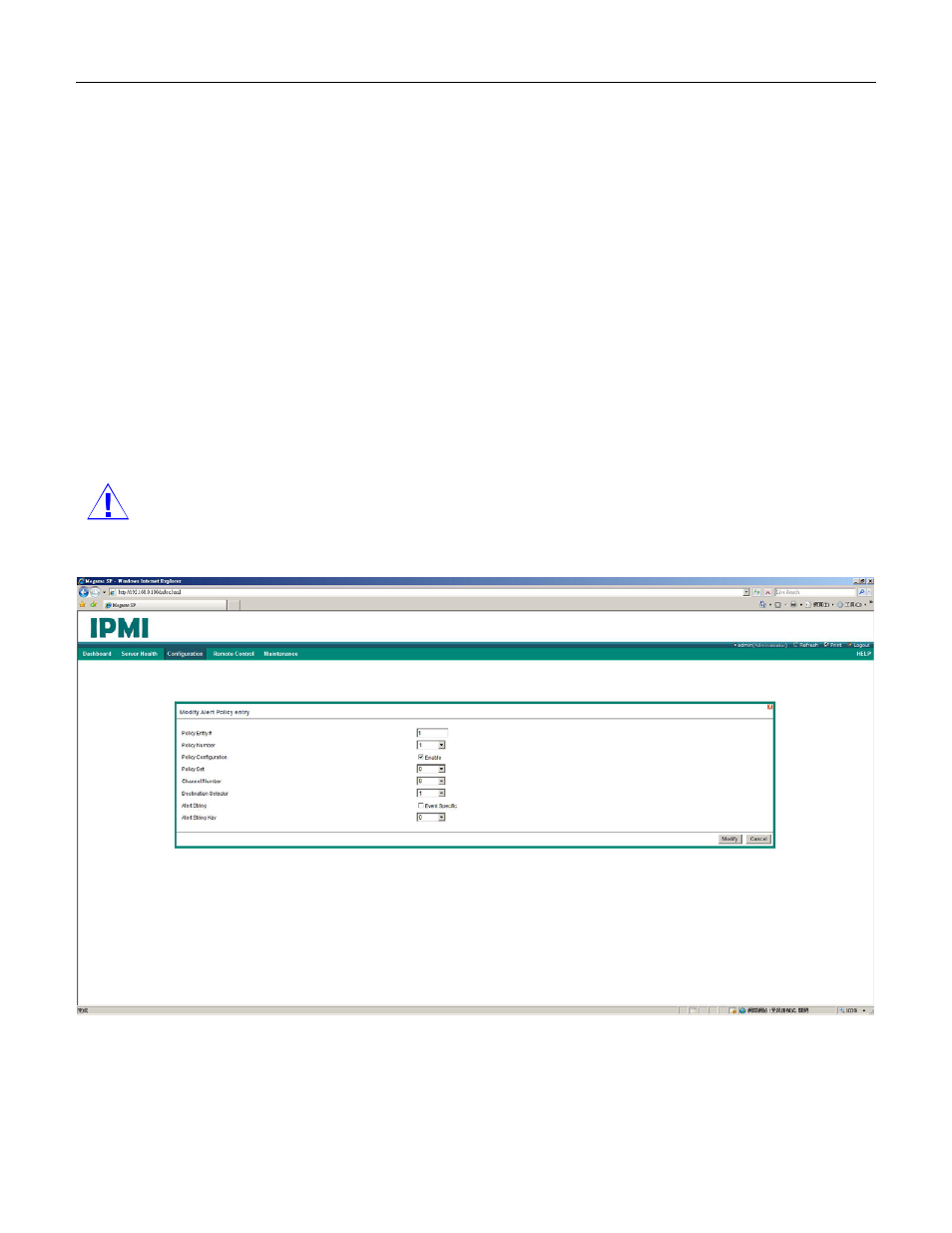

Lanner IPMI - Manual (Page 29)

Version 1.0
27
Policy Number : displays the policy number of the configuration.
Policy Configuration : indicates whether this policy is enabled or disabled.
Policy Set : It shows how the event should be sent to (multiple) destinations depending on the following described
circumstances.Configured according to the following rule set:
0 - Always send alert to this destination.
1 - If alert to previous destination was successful, do not send alert to this destination. Proceed to next entry in this
policy set.
2 - If alert to previous destination was successful, do not send alert to this destination. Do not process any more
entries in this policy set.
3 - If alert to previous destination was successful, do not send alert to this destination. Proceed to next entry in this
policy set that is to a different channel.
4 - If alert to previous destination was successful, do not send alert to this destination. Proceed to next entry in this
policy set that is for a different destination.
Channel Number : indicates a particular channel from the available channel list.
Destination Selector : indicates a particular destination from the configured destination list.
NOTE : The LAN Destination has to be configured on the LAN Destination tab under
Configuration->PEF->LAN Destination .
To add or modify an Alert Policy entry, follow these steps:
1. In the Alert Policy Tab, select the entry number that you want to modify or click an empty slot to add a new
entry. The entry number just denotes the order or sequence of sending the alert in a given policy set. It is
different from the Policy Number which doesn’t have to be equal to Policy Entry#. The Policy Number can
also appear more than 1 time in the entries; therefore, you can define a more sophisticated rule for sending
event alert to different channel or LAN destinations (see LAN Destination Tab in Section 5.6.3) for the
