Syncro CS 9361-8i and Syncro CS 9380-8e Solution User Guide 
October 2014
Chapter 2: Creating the Cluster
Creating the Cluster in Red Hat Enterprise Linux (RHEL) and CentOS
2.3.7.1 Modify the Quorum Totem Token (Optional)
NOTE If you perform the procedure in this section, you must perform the
procedure in
Section 2.3.7.2, Edit the Cluster Configuration File for
Quorum at Hosts .
Perform the following steps to modify the quorum totem token.
1. Go to the Cluster Management window.
2. Click the Configure tab.
The Quorum Disk Configuration dialog appears, as shown in the following figure.
3. Click the QDisk tab in the Quorum Disk Configuration dialog.
4. Fill in the Interval field and the TKO field.
5. Click Apply when complete.
This action changes the quorum totem token.

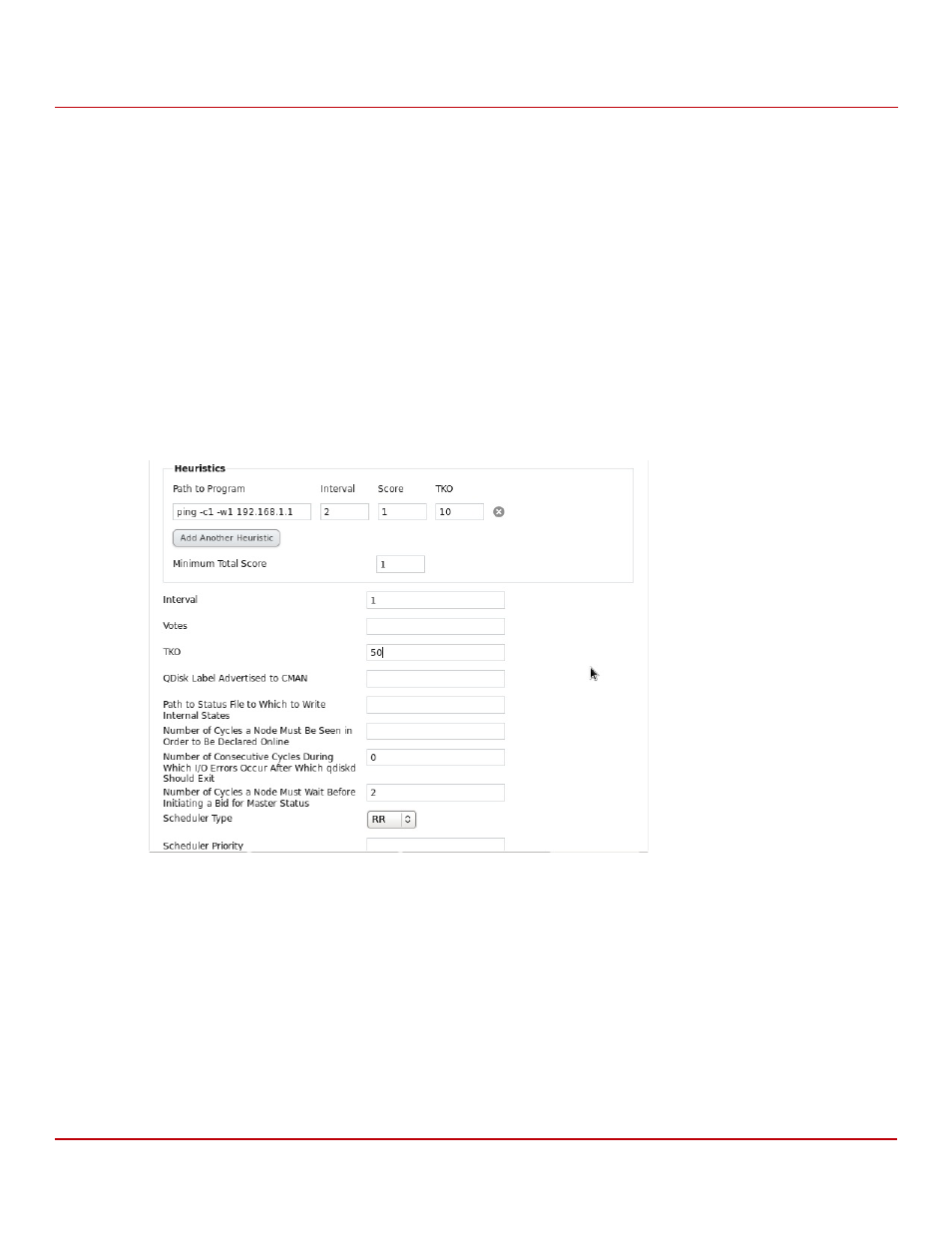

Figure 22 Quorum Disk Configuration Dialog
