28

| About your monitor

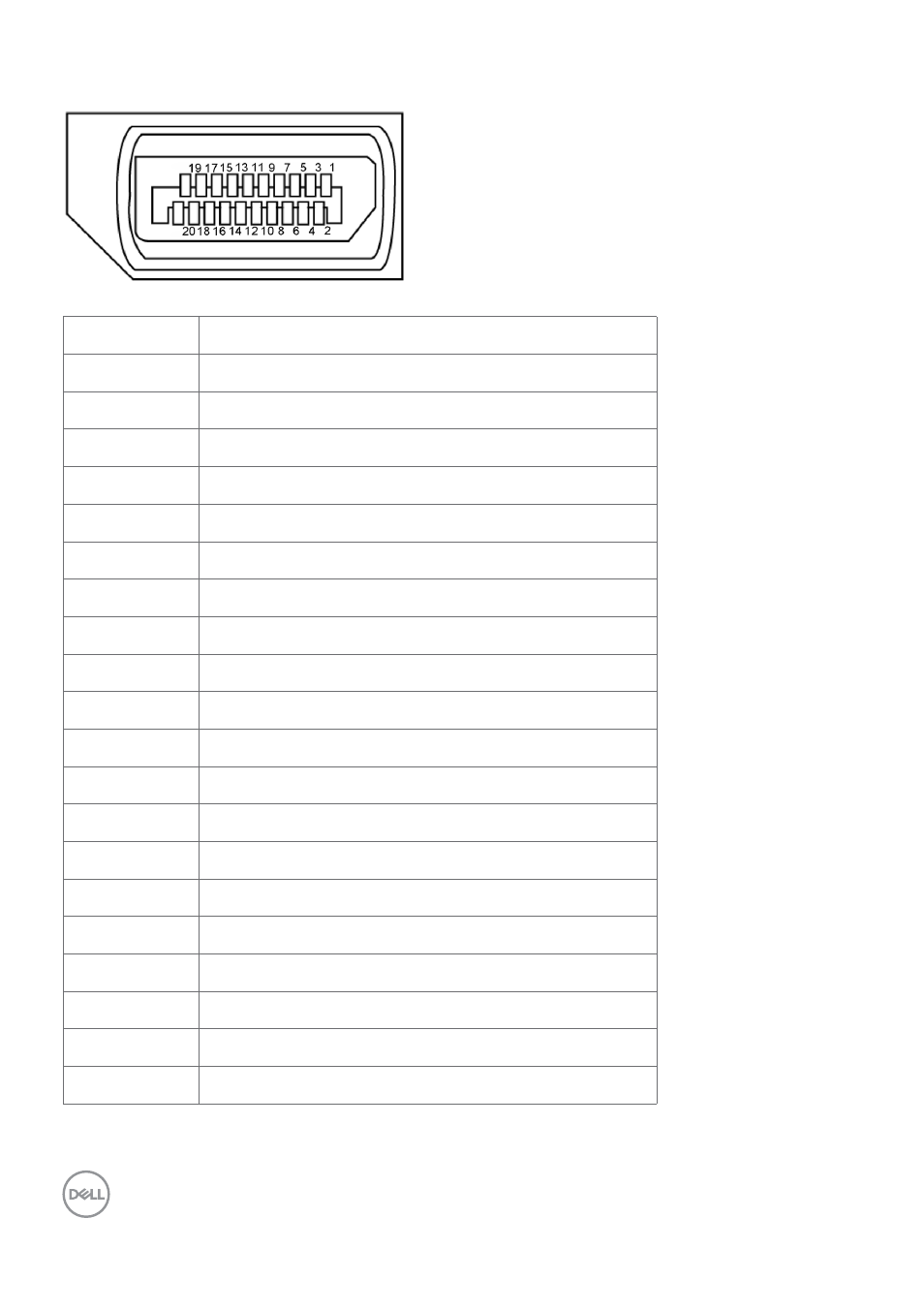

DP port (out)

Pin number

20-pin side of the connected signal cable

1

ML0(p)

2

GND

3

ML0(n)

4

ML1(p)

5

GND

6

ML1(n)

7

ML2(p)

8

GND

9

ML2(n)

10

ML3(p)

11

GND

12

ML3(n)

13

CONFIG1

14

CONFIG2

15

AUX CH(p)

16

GND

17

AUX CH(n)

18

Hot Plug Detect

19

Return

20

DP_PWR
