9
En
English
Make sure to connect L (left) to L, R (right) to R, “+” to “+” and “–” to “–”. If the connections are faulty, no sound will
be heard from the speakers, and if the polarity of the speaker connections is incorrect, the sound will be unnatural and
lack bass. Refer to the owner’s manual for each of your components.
Make sure to use RCA cables, optical cable or USB cables to connect audio components.
Do not connect this unit or other components to the main power until all connections between components are complete.
Only PCM signals can be input to the DIGITAL (OPTICAL/COAXIAL) jacks of this unit. For details on the supported
PCM signals, see page 18.
y
• The PHONO jacks are designed for connecting a turntable with an MM cartridge.
• Connect your turntable to the GND terminal to reduce noise in the signal. However, for some turntables, you may hear less noise
without the GND connection.

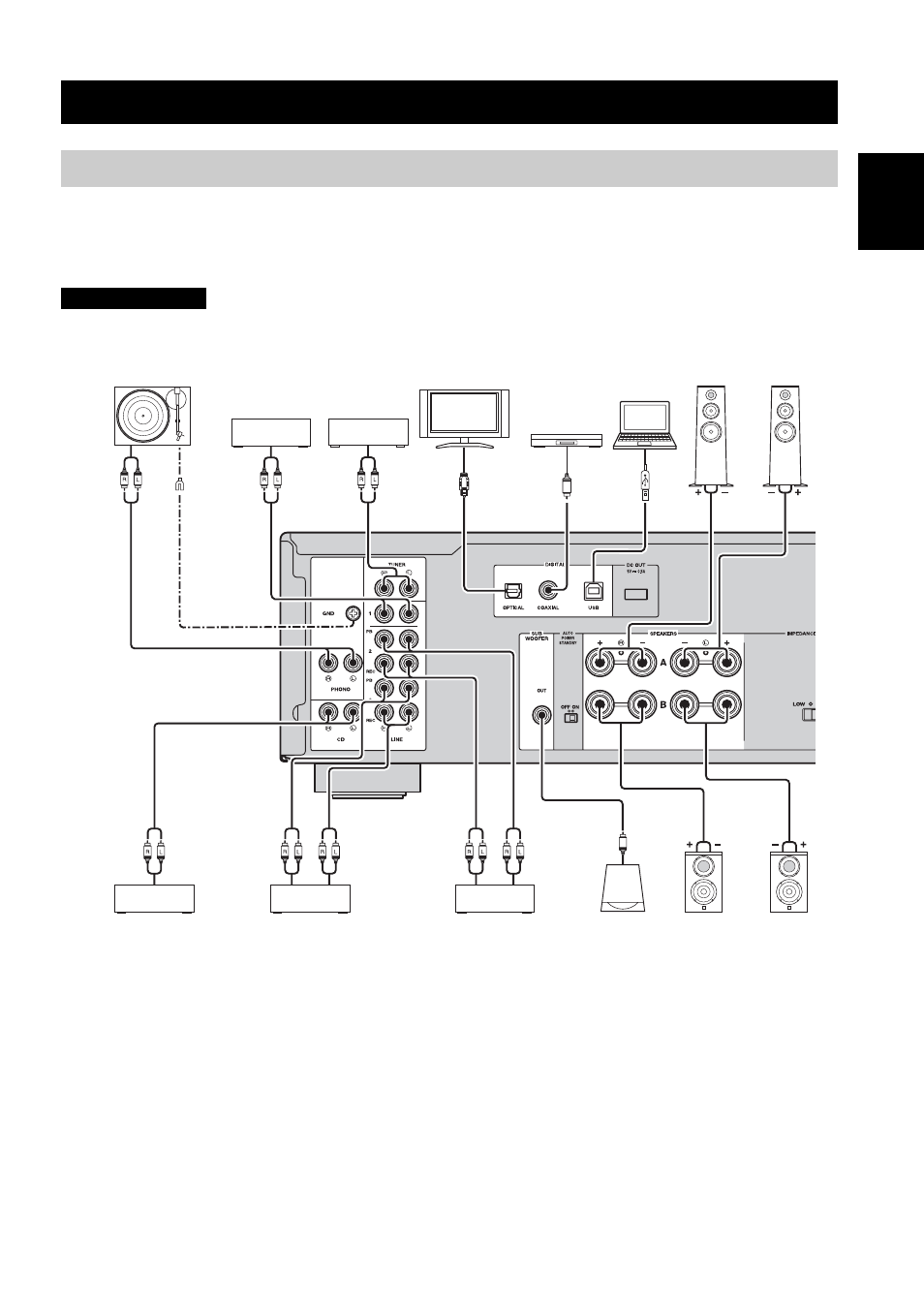

CONNECTIONS
Connecting speakers and source components
CAUTION
CD recorder,
etc.
Tuner
Speakers A
Speakers B
DVD player,
etc.
CD player
Turntable
Audio
out
Audio
out
Audio
In
Audio
out
GND
Left Right
Left Right
Audio
out
Audio
out
TV, etc.
Audio
out
Subwoofer Tape deck,
etc.
BD player, etc.
PC
Audio
out
Audio
out
Audio
In
Audio
out
