2
En
1
A
(power) switch
Turns on and off the power of this unit.
Even when this unit is turned off, this unit consumes a small
amount of power.
2 Power indicator
3 Remote control sensor
Receives infrared signals from the remote control.
4 PHONES jack
Connect your headphones.
5 SPEAKERS selector
6 BASS control
Increases or decreases the low frequency response.
The 0 position produces a flat response.
Control range: –10 dB to +10 dB
7 TREBLE control
Increases or decreases the high frequency response.
The 0 position produces a flat response.
Control range: –10 dB to +10 dB
CONTROLS AND FUNCTIONS

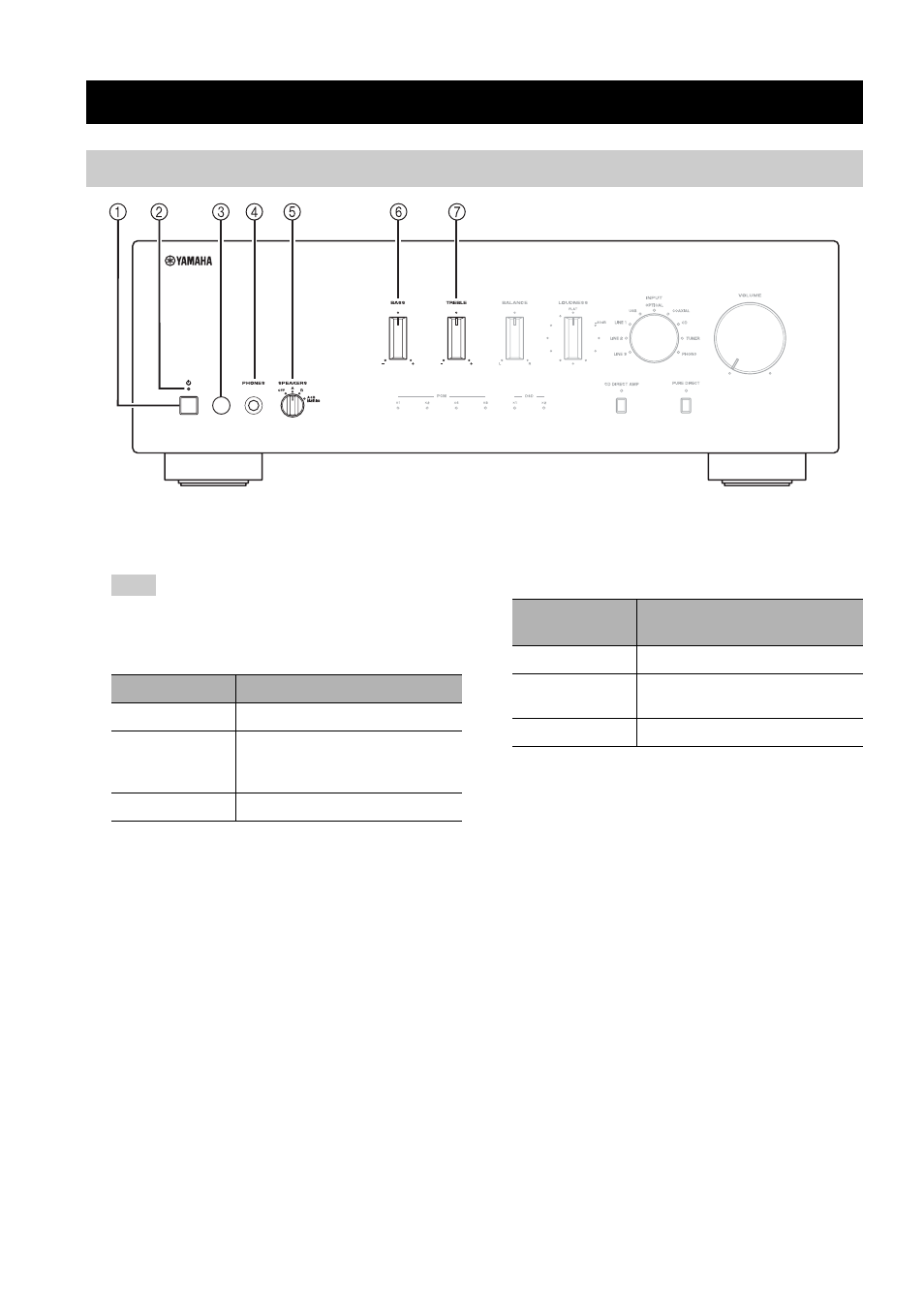

Front panel
Note
Indicator Status
Brightly lit The power of this unit is “on”.
Dimly lit
This unit is in “standby” mode.
For details on the “standby” mode, see
page 6.
Off The power of this unit is “off”.
Selector
position
Speaker status
OFF Both sets of speakers are off.
A or B
The set of speakers connected to the A
or B terminals is on.
A+B BI-WIRING Both sets of speakers are on.
