Specifications
Playable disc types
Audio CD (including CD-R and CD-RW)
o 8cm CDs are not supported.
Analog audio outputs
Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . .XLR connectors × 1 pair (L/R)
RCA connectors × 1 pair (L/R)
Output impedance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . XLR: 220 Ω
RCA: 180 Ω
Maximum output level (1 kHz/full-scale, into 10 kΩ)
FIXED 0dB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . XLR/RCA: 2.0 Vrms
FIXED +6dB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . XLR/RCA: 4.0 Vrms
VARIABLE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . XLR: 12 Vrms
RCA: 6 Vrms
Frequency response* . . . . . . . . . . . . . . . . . . 5 Hz – 80 kHz (+1 dB/−6 dB)
S/N ratio* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108 dB (A-Weight, 1 kHz)
Distortion* . . . . . . . . . . . . . . . . . . . . . 0.002% (1 kHz, LPF: 20 Hz – 20 kHz)
*Measurement conditions
Input signal: 192 kHz 24-bit PCM
Measurement output: RCA
DSD low-pass filter: FIR 1
Headphones output
Connector . . . . . . . . . . . . . . . . . . . Standard 6.3mm (1/4 " ) stereo jack × 1
Practical maximum output . . . . . . . . . . . 500 mW + 500 mW (into 32 Ω)
Applicable load impedance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16–600 Ω

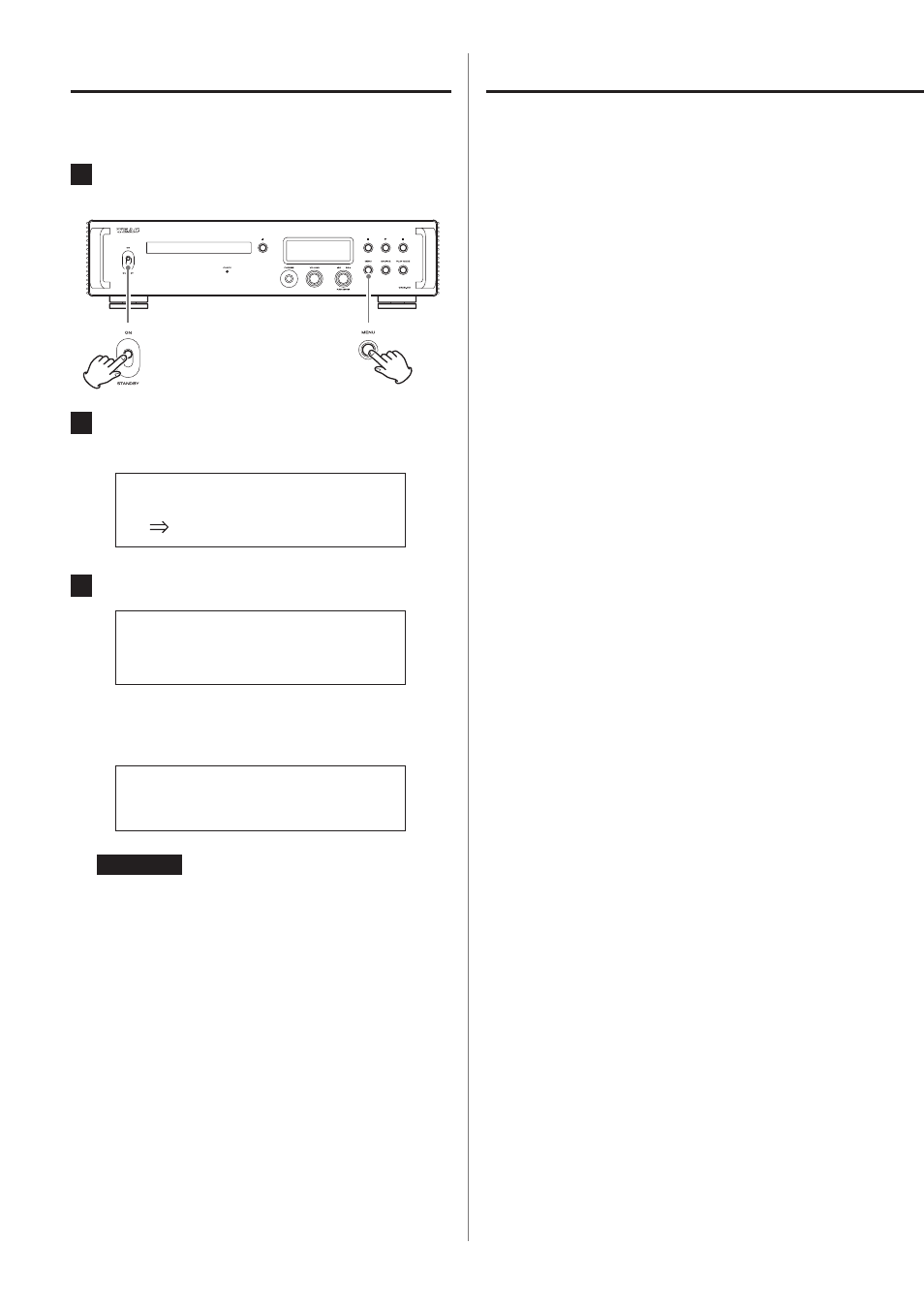

Troubleshooting (continued)
Restoring default settings
1
While pressing and holding the MENU button,
set the STANDBY/ON switch to ON.
2 Release the MENU button when the FACTORY
RESET menu appears.
MENU
FACTORY RESET
ARE YOU SURE?
3
Press the skip knob ( . / / ).
PLEASE WAIT!
The playback source screen will appear after resetting
completes.
Display example
NO DISC
ATTENTION
o Do not put the unit in standby until the playback source
screen appears.
o This operation will restore all settings to their default values.
o The factory default settings are the setting values shown in the
screen images used in the explanations of this manual.
