LEICA V-Lux 5 Digital Camera - Manual (Page 62)

Preparation/Basics
62

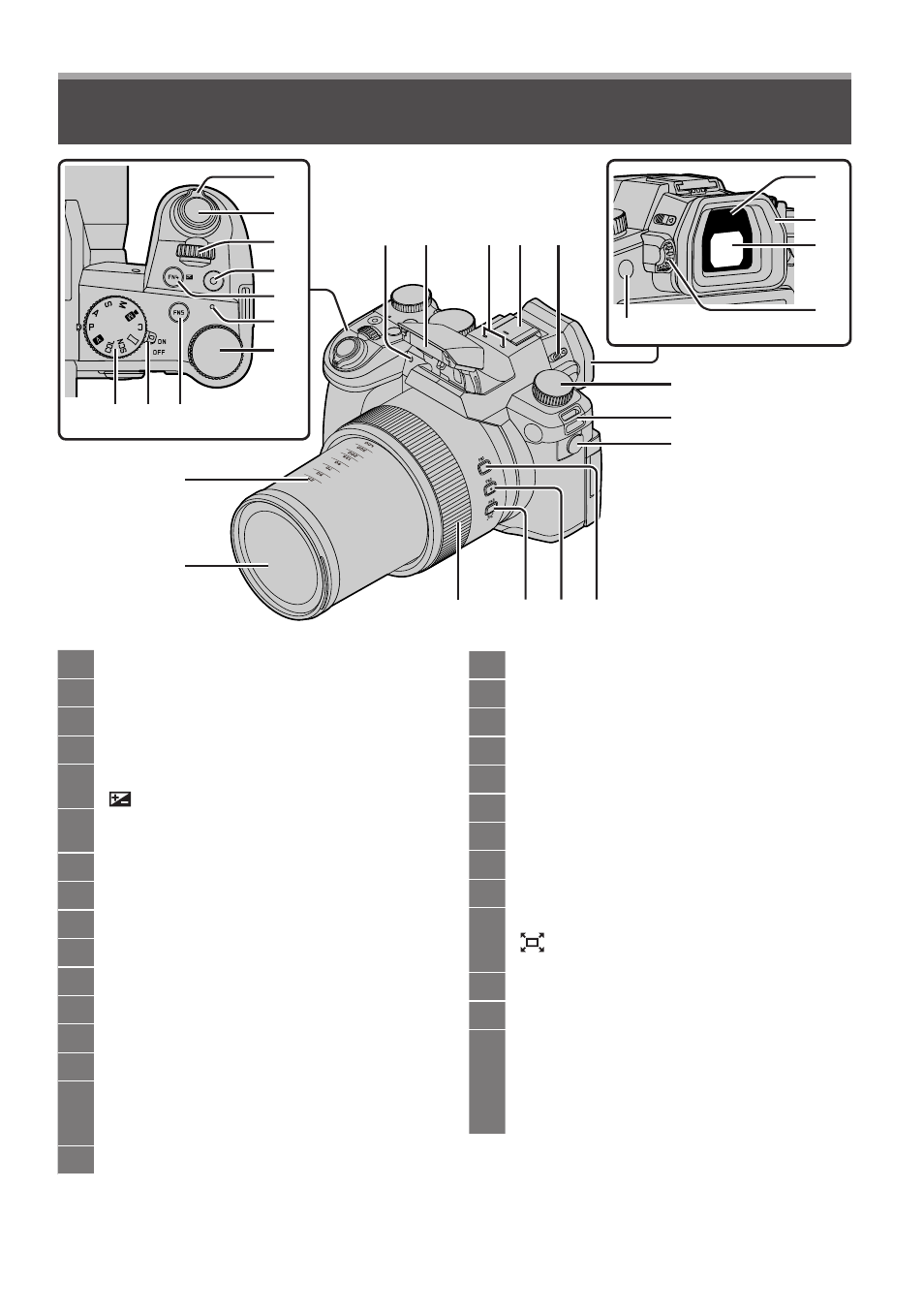

Names and functions of main parts
1
2
3
4
5
6
7
8 9 10
13
17
18
19
20
21
14 12 15 16
11
22
23
24 25 26
28
29
27
1 Zoom lever (→72)
2 Shutter button (→71)
3 Front dial
4 Video button (→83)
5 [FN4] button /
[ ] (Exposure Compensation) button
6 Battery charge indicator /
WIRELESS connection lamp
7 Rear dial
8
[FN5] button
9 Camera [ON/OFF] switch (→69)
10
Mode dial (→73)
11 Shoulder strap eyelet (→65)
12 Self-timer indicator / AF Assist Lamp
13 Flash
14 Stereo microphone
15 Hot shoe (Hot shoe cover) (→61)
Keep the hot shoe cover out of reach of
children to prevent swallowing.
16
Flash open lever
17
Eye sensor (→70)
18 Eyecup
19
Viewfinder (→70)
20 Diopter adjustment dial (→70)
21 [FN8] button / [EVF] button (→70)
22 Drive mode dial (→77)
23 Microphone jack
24 [FN1] button
25 [FN2] button
26 [FN3] button /
[ ] ([Zoom Compose Assist]) button
(→72)
27
Control ring
28 Lens
29 Focal distance indication (as with a
35 mm film camera)
Values assume an aspect ratio of [3:2].
(Check the focal length value displayed
when recording video.)
