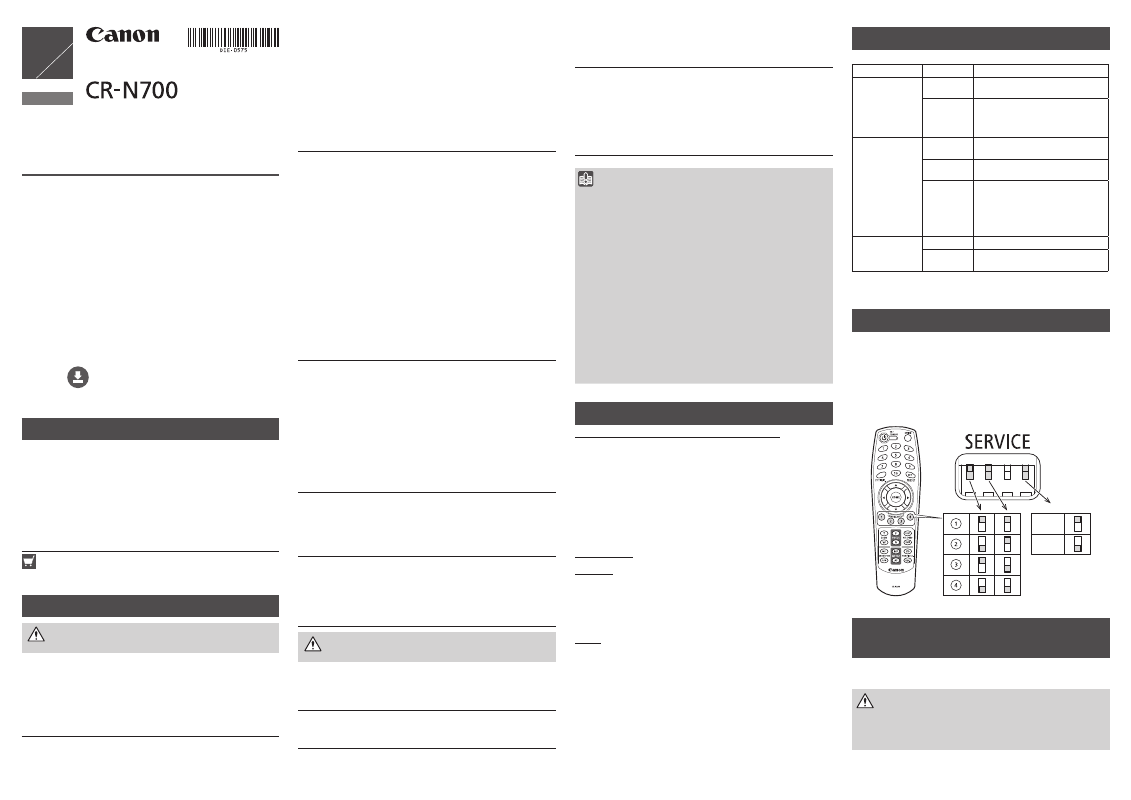

This "Installation Guide / Important Information" is comprised of pages [1 / 2] and [2 / 2] .
Please be sure to read the "Safety Precautions" section for correct use . After
reading this "Installation Guide / Important Information" , keep it in a readily
accessible location for future reference . This camera is for indoor use only .
• The cameras described in this document may include models not
available in your country and / or region .
• HDMI is a trademark or registered trademark of HDMI Licensing
Administrator , Inc . in the United States and other countries .
• All other company or product names used in this document are
trademarks or registered trademarks of their respective holders .
• The contents of this document are subject to change without any prior
notice .
The latest user manuals and software , etc . for this product can be
downloaded from the following website . The user manuals explain the
camera settings and operations . Read them carefully before using the
camera to ensure correct use .
global . canon / ncsp
Check Included Items
Camera
Ceiling Plate
Safety Wire 3 m ( 9 . 8 ft .)
Wire Stopper ( for safety wire )
Camera - to - Mount Safety Wire 10 cm ( 3 . 94 in .)
M3 Screw x 6 ( for camera mounting , camera - to - mount safety wire , and wire
stopper x 4 )
IR Remote Controller
Size AAA Battery x 2 ( for IR remote controller )
Printed Materials
Symbols used in this manual
Parts indicated in the "Installation Guide / Important Information" [2 / 2]
with this icon are not included with the camera , and should be prepared by
the user .
Safety Precautions
Warning Failure to follow the instructions may
result in death or serious injury .
Do not install in the following places:
• Places in direct sunlight , near heat - generating objects , or locations subject
to high temperatures .
• Places near fire sources or flammable solvents ( alcohol , thinner , fuel , etc .).
• Humid or dusty places .
• Places subject to oily smoke or steam .
• Confined or enclosed places .
Failure to do so may result in fire or electric shock .
Notes on installation at high places
• For installation or inspection of this camera , consult the dealer where you
purchased the product .
• Install the camera in a way that ensures sufficient holding strength
according to the mounting place such as the wall , ceiling , etc . Also , make
sure that the mounting place can sufficiently support the total weight
including the mounting parts and reinforce it if necessary .
• Prepare fixing screws suitable for the location and type of surface the
camera is to be installed .
• Periodically check the mounting brackets and screws for rust and
loosening .
• Do not install in unstable places , places subject to significant vibration or
impact , or places subject to salt damage or corrosive gas .
• Be sure to attach the safety wire when installing the camera .
• Use the included ceiling plate to install the camera . Do not install it with
only the tripod screws .
Failure to do so may result in the camera falling or other accidents .
General notes on the camera
• If any defective conditions such as smoke , strange sounds , heat ,
strange odors , damage or cracks on the external case are discovered ,
immediately stop using the camera , remove it from the power supply ( or
the LAN cable for PoE ++ power supply ), and contact your nearest dealer .
Place the external DC power supply near the power outlet and avoid
placing objects around the power plug so that the power can be turned off
immediately in the event of an emergency .
• Do not touch the camera or the connecting cables during a thunderstorm .
• Do not disassemble or modify the camera .
• Do not scratch , pull , or forcefully bend the cables , or put a load on their
connections .
• Do not spray the camera with water , or otherwise make it wet .
• Do not touch the camera , the external DC power supply , cable connectors ,
power plugs , or power outlets with wet hands .
• Do not allow water , metal or other foreign objects to enter the camera .
• Do not use flammable sprays near the camera .
• Do not leave the external DC power supply ( or the LAN cable for PoE ++
power supply ) connected when the camera is not in use for long periods .
• Do not use flammable solvents such as alcohol , paint thinner or benzine
when cleaning the camera .
• Do not block the air intake or air exit vents .
Failure to do so may result in fire or electric shock .
Notes on Power Supply
• When using a commercially available AC adapter , use one that complies
with the safety standards .
• Do not place heavy objects on the power cable ( or the LAN cable for
PoE ++ power supply ) or pull , forcibly bend , scratch or modify it .
• Do not allow metal pins or debris to touch the power plug or terminals .
• Wipe any dust off of the power plug . Also , if the connection is made to the
power outlet in a dusty area , take measures to prevent tracking .
• Make sure the power plug ( or the LAN cable for PoE ++ power supply ) is
seated all the way , and do not use it when the insertion is insufficient .
• Do not use a damaged power plug or a loose power outlet , or use it in a
manner that exceeds the rating of the wiring device such as connecting
multiple plugs to an outlet .
Failure to do so may result in fire or electric shock .
Notes on batteries
• Do not put batteries in the fire , or do not heat , short circuit or disassemble
them .
• Do not charge the included batteries .
• Do not use batteries other than those specified .
Failure to do so may result in fire or electric shock .
Do not use the product at:
• Places where the use is prohibited , such as in hospitals and on airplanes .
• Places within reach of babies and toddlers .
Use at such places can cause equipment to malfunction due to
radio waves and lead to accidents
, or cause electric shock and
injuries .
Caution Failure to follow the instructions may
result in injuries or property damages .
Notes on installation
• Installation must be carried out safely and securely in accordance with the
relevant regulations for technical standards of electrical installation .
Failure to do so may result in accidents .
Notes on installation
• Take care not to damage wiring or piping .
Failure to do so may result in damage to surrounding items .
ENGLISH
Installation Guide
Important Information
1
2
DIE - 0575 - 000
© CANON INC . 2022 Printed in Japan • Imprimé au Japon
General notes on the camera
• Do not touch the edges of metal parts with bare hands .
• Be careful not to get your fingers caught when installing .
Failure to do so may result in injuries .
Notes on batteries
• Remove the batteries when they have been used up or will not be used for
a long time .
• When replacing the batteries , replace both batteries at the same time .
Also , do not use different types of batteries together .
• Make sure + and - of the battery are oriented correctly .
• If any liquid from inside the battery gets on your body due to leakage ,
rinse it off thoroughly with water .
Failure to do so may result in injuries and malfunctions .
Important
• Do not install the camera in places where radiation , X - rays , strong radio
waves or strong magnetism are generated . It may cause video and
audio disturbance , noise , or malfunctions .
• We recommend the installation of a lightning arrester ( a surge protection
device ) as a measure against failures caused by lightning strikes .
• Take measures to remove static electricity before performing any
procedures .
• Do not connect power supply cables to the BNC jacks as it may result
in damage .
• Do not connect the PoE cable to the RS - 422 terminal .
• If there is condensation , please wait to power on , until the condensation
dissipates .
• Do not hold the device by the camera head .
• Do not turn the camera rotator by hand .
• After turning off the power , do not turn the power on again for at least
five seconds .
• Do not point the camera at strong light sources ( such as the sun on a
clear day or strong artificial light sources ). Internal components such as
the image sensor could be damaged .
• Do not carry the camera on a tripod .
Precautions for Use ( Disclaimer )
Compliance with Applicable Laws / intellectual Property Rights: Please note
that your use of this product may subject you to certain laws , rules and
regulations , including but not limited to , privacy , wiretapping and intellectual
property and publicity laws . Please be sure your use of this product and / or
any resulting recordings or footage complies with applicable laws , rules and
regulations .
Canon Inc . and its affiliates shall have absolutely no liability with respect
to any claims made by third parties that your use of this product does not
comply with applicable laws , rules and regulations and any resulting claims
brought against you by third parties alleging non - compliance with such laws ,
or otherwise violates any third party ' s intellectual property , personal , privacy
or proprietary rights as a result of your use of the product . We are also not
responsible to you for any liability whatsoever resulting from your use , and / or
installation of this product , and / or any loss of any recordings or footage .
Limited Warranty: Please check the in - box materials for more information
about the limited warranty that pertains to your product .
Installation: This product should NOT be installed outdoors . You are solely
responsible for the proper installation of this product . To the extent permitted
by law , Canon Inc . and its affiliates shall have absolutely no liability to you
with respect to any damages or liabilities associated with the improper use of ,
or the installation of this product , or for any personal injuries sustained by you
or any third parties as a result of any such improper use or installation of this
product , whether or not the installation of this product was by you , or by any
third party .
Privacy:
• Do not install this product in areas where people have a reasonable
expectation of privacy , including but not limited to , bedrooms , dressing
rooms , locker rooms and rest room facilities .
• Some jurisdictions require signage disclosing the existence of camera
equipment. Please check your own area's laws for requirements.
• Making audio recordings is heavily regulated and can vary significantly
by area . Please check laws in your jurisdiction before making any audio
recordings .
OTHER IMPORTANT INFORMATION: Please see other important information
pertaining to the use of this product by reading our Settings Guide , which
can also be found at global . canon / ncsp , prior to using this product .
About lamp
Lamp Lamp status Status
STATUS lamp
Orange light
ON
Standby
Power shortage
Orange light
BLINKING
PT position error
Firmware being updated
Device failure
Cooling fan error
POWER lamp
Orange light
ON
Standby
Green light
ON
Power on
Green light
BLINKING
Initializing ( Starting and restarting )
IR remote control signal received
( Blinks twice )
Moving to or returning from standby
Device failure
Cooling fan error
Tally lamp
Red light ON Distributing data
Green light
ON
Preparing to distribute data
For details on the location of each lamp , refer to the "Installation Guide /
Important Information" [2 / 2] .
Before using the camera
Initial settings
Be sure to make the initial settings before use . If the initial settings are not
made , the video cannot be outputted . Refer to the "Settings Guide" for
details .
SERVICE switch settings
Set the camera number and frame frequency of the output video to be
operated by the IR remote controller .
Switches should be set before turning on the power .
59.94 Hz
50.00 Hz
Frame frequency
Notes for When and After
Installing the Camera
When Installing the Camera
Installation at high places
Caution Request a professional installer for all
installation work . Never try to install the
camera yourself . Doing so may result in
unforeseen accidents such as dropping
the camera or electric shock .
Remote Camera
