Senal AWS-24G 2-Person Wireless Microphone System for Cameras and Smartphones (2.4 GHz) - Manual (Page 13)

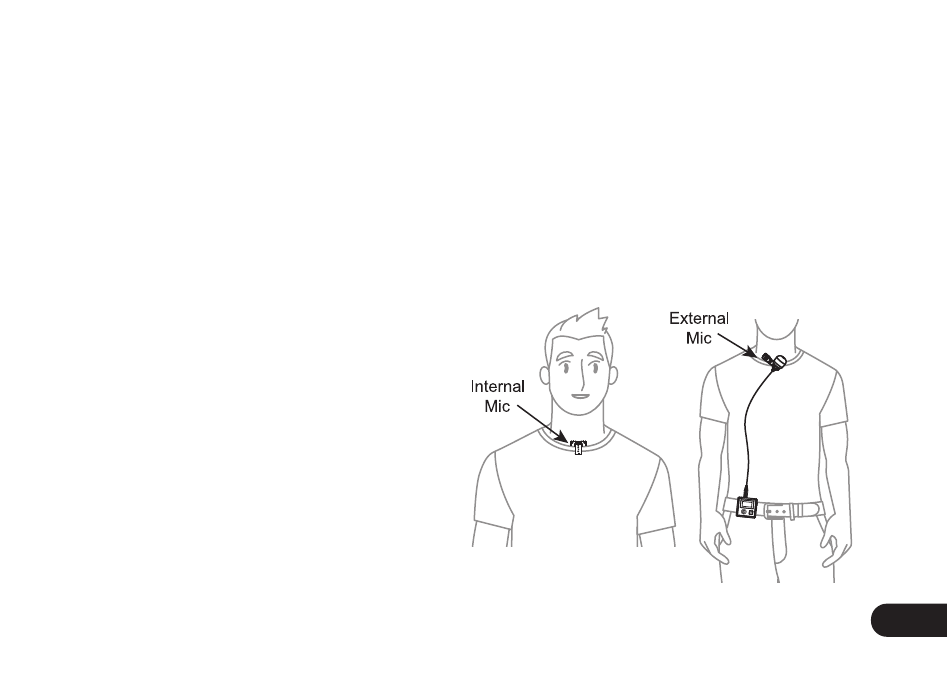

Mic Placement
When the internal mic is active, place the
transmitter near the sound source, like a
shirt collar or jacket lapel.
When an external lavalier is active, use the
clip to keep the transmitter concealed and
out of the way.
Due to 2.4 GHz wireless characteristics,
it’s best to keep the transmitters and
receiver in line-of-sight contact. If there’s
any obstruction to the antenna or line of
sight between the transmitters and
receiver, the operating range will decrease.
The transmitters have a line-of-sight operating range of 300 feet.
By default, the internal microphone is active when the transmitter is powered on.
Plug a lavalier microphone into the external mic port to activate it and mute the
internal microphone.
To mute the internal or external microphone, press the Mute button. The mute icon
will appear on the transmitter’s screen. Press the Mute button again to unmute.
Operating the Transmitter (TX)
▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪
11
