6-3
6.2

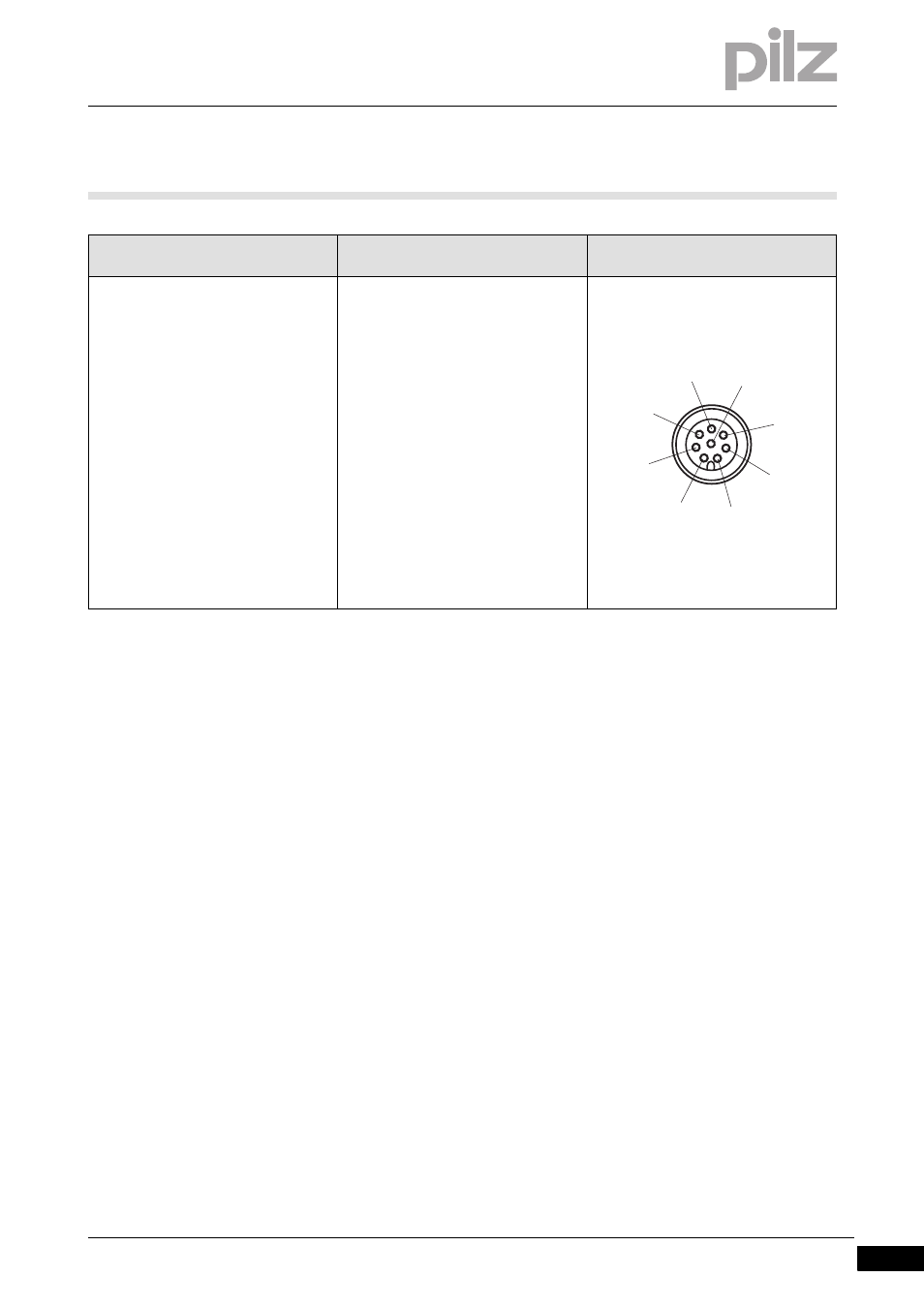

Assignment of female connectors
6
Wiring
Inputs/outputs
X6
Layout
8-pin M12 female connector for con-
necting to the standard inputs and
outputs of an evaluation device
1: Signal output X1
2: Signal output X2
3: Signal output X3
4: Signal output X4
5: "Lock_Unlock" X1 (input for control
command for magnetic guard locking)
6. "Lock_Unlock" X2 (input for control
command for magnetic guard locking)
7. "Lock_Unlock" X3 (input for control
command for magnetic guard locking)
8. "Lock_Unlock" X4 (input for control
command for magnetic guard locking)
2
1
7
6
8
5
4
3
