12-8
Specifications

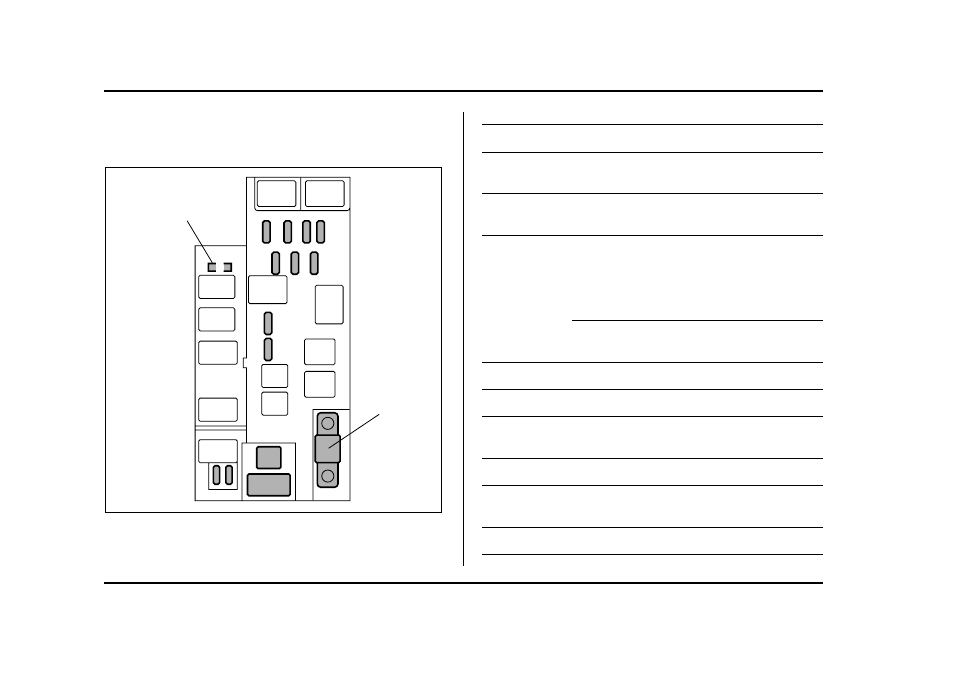

Fuse panel located in the engine com-
partment
A) FWD socket (AT models without Vehicle Dynamics
Control system)
B) Main fuse
A
1 2
4
3
B
5
6
7
8
9
10 11 12 13
USC003BB
Fuse panel
Fuse rating
Circuit
1
30A
y
Radiator cooling fan
(Main)
2
30A
y
Radiator cooling fan
(Sub)
3
50A
y
Vehicle Dynamics
Control system (Mod-
els with Vehicle Dy-
namics Control system
only)
30A
y
Engine sensor (Non-
turbo models only)
4
30A
y
ABS motor
5
20A
y
Rear window defogger
6
15A
y
Hazard warning flasher
y
Horn
7
15A
y
Turn signal lights
8
10A
y
Automatic transmis-
sion control unit
9
10A
y
Alternator
