Page 15
11
2.4 Manual Record
Note:
You need to have proper rights to implement the following operations. Please make sure the
HDD has been properly installed.
There are three ways for you to go to manual record menu.
z
Right click mouse and then select Manual->Record.
z
In the main menu, from Storage->Record.
z
In live viewing mode, click record button in the front panel or record button in the remote
control.

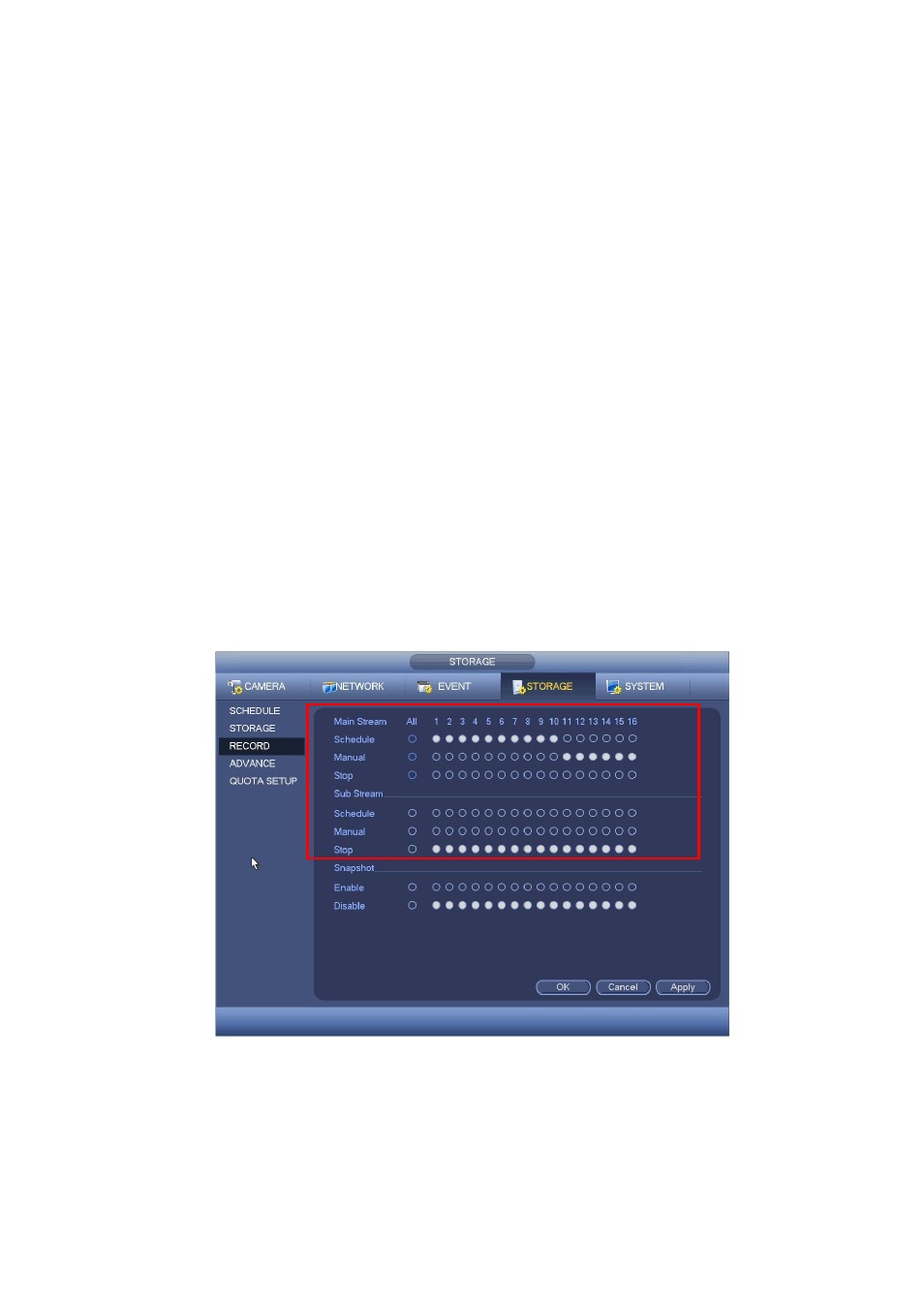

Manual record menu is shown as in Figure 2-4.
2.4.1 Record Operation
System supports main stream and sub stream. There are three statuses:
schedule/manual/stop. Please highlight icon“○” to select corresponding channel.
z
Manual: The highest priority. After manual setup, all selected channels will begin ordinary
recording.
z
Schedule: Channel records as you have set in recording setup (Main Menu->Setting-
>System->>Schedule)
z
Stop: Current channel stops recording.
z
All: Check All button after the corresponding status to enable/disable all-channel
schedule/manual record or enable/disable all channels to stop record.
Figure 2-4
2.4.2 Snapshot Operation
Check the corresponding box to enable/disable schedule snapshot function. See Figure 2-5.
