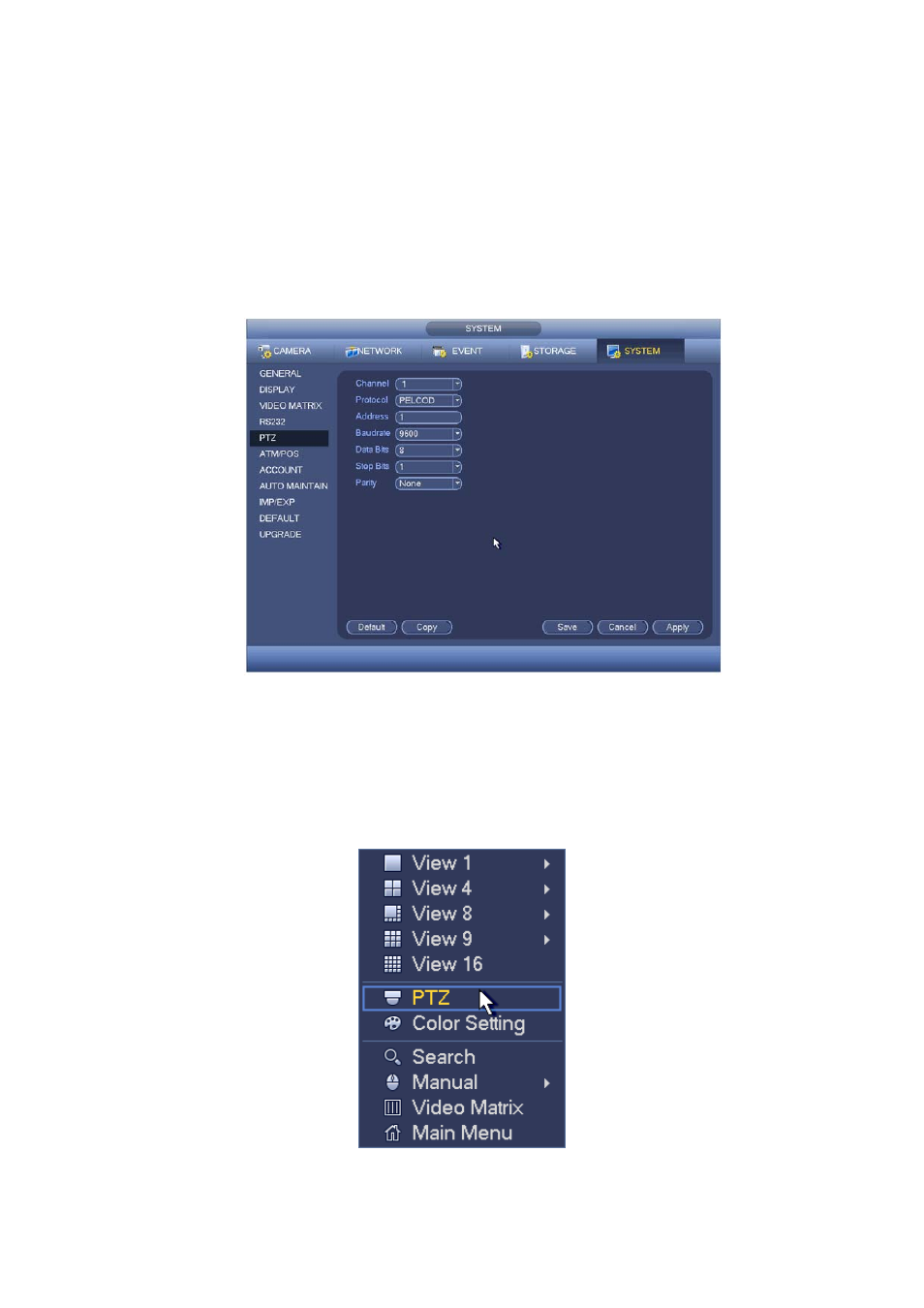

In the main menu, from Setting->System->PTZ, you can see the following interface. The
pan/tilt/zoom setup includes the following items. Please select channel first. See Figure 2-26.
z
Protocol: Select corresponding PTZ protocol such as PELCOD.
z
Address: Input corresponding PTZ address.
z
Baud rate: Select baud rate.
z
Data bit: Select data bit. Default value is 8.
z
Stop bit: Select stop bit. Default value is 1.
z
Parity: There are three choices: none/odd/even. Default value is none.
Figure 2-26
After completing all the setups please click save button, system goes back to the previous menu.
2.9.2 PTZ Operation
In one window display mode, right click mouse (click “Fn” Button in the front panel or click
“Fn” key in the remote control). The interface is shown as in Figure 2-27.
Figure 2-27
