5-8 BE1-50/51B-230/-234/-239 Testing 9252000894 Rev H
c. Set TIME DIAL to 9.9
d. Set CURVE to V.
e. Set TIME PICKUP to 0.2.
f. Set INST PICKUP (50-A) to 18.0.
g. Set INST PICKUP (50-B) (accessed at the top side of the assembly) to F0 (3.0 Aac).
2. Apply 0.8 Aac to terminals 5 and 6. After the unit trips, remove the applied current for 29 ±0.25
seconds, then reapply the current (0.8 Aac). Note the elapsed time from the reapplication of current to
the second trip. The elapsed time should be 2.08 ±0.4 seconds.

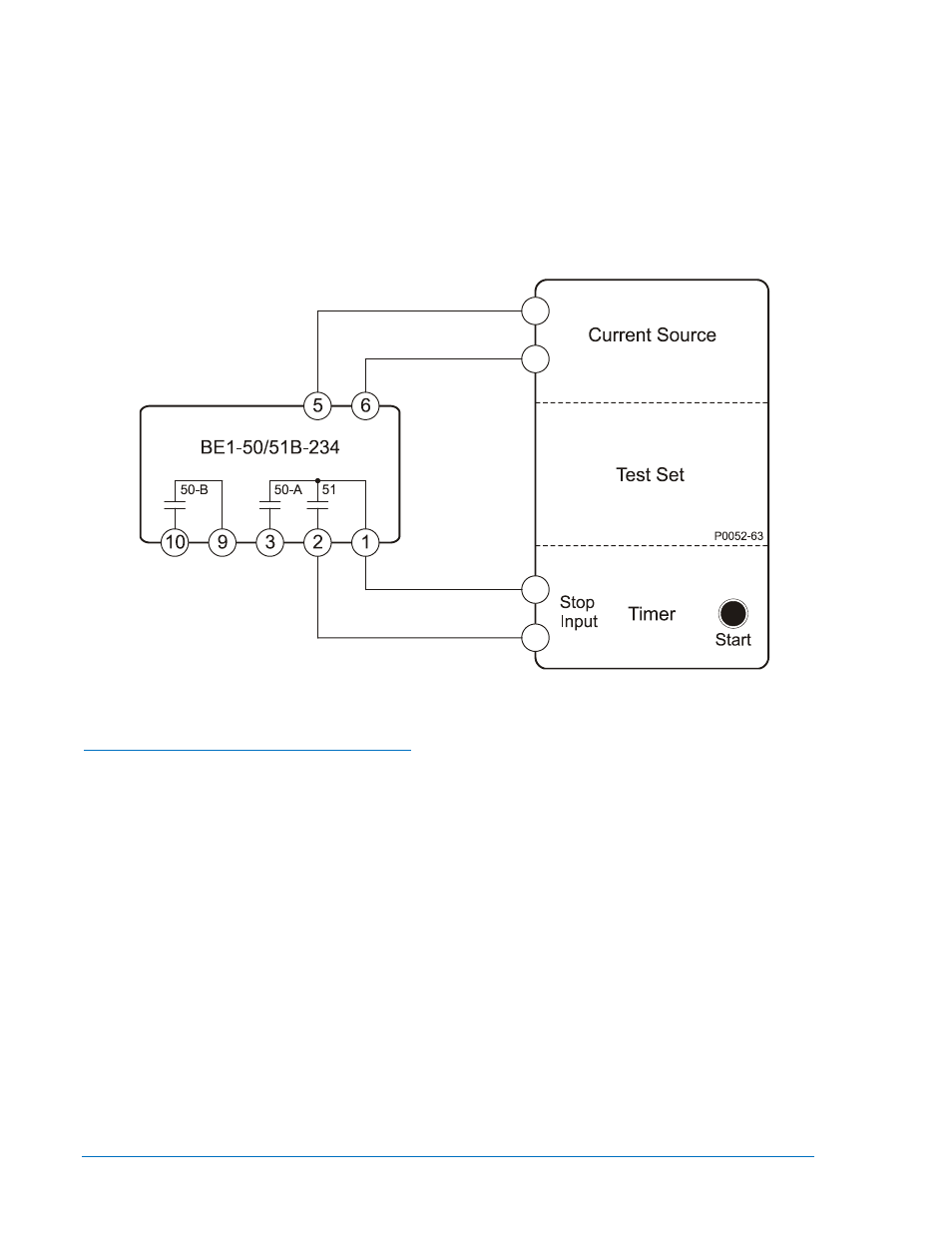

Figure 5-5. 51 Pickup, Time Dial, and Integrating Reset Test Setup
1. Connect and configure the relay for 50-A pickup testing:
Instantaneous Overcurrent A (50-A) Pickup
a. Connect the test setup shown in Figure 5-6.
b. Set circuit board switch SW3 as follows:
SW3-1 = ON for 50 Hz operation or OFF for 60 Hz operation
SW3-2 = OFF (no additional time delay for the 50-A element)
SW3-3 = ON (GE IAC type characteristic curves)
SW3-4 = ON (integrating reset characteristic)
c. Set TIME DIAL to 0.0.
d. Set CURVE to S.
e. Set TIME PICKUP to 3.18.
f. Set INST PICKUP (50-A) to 0.4.
g. Set INST PICKUP (50-B) (accessed at the top side of the assembly) to F0 (3.0 Aac).
2. Apply and slowly increase current to terminals 5 and 6 until the 50-A output contacts close. The
applied current should be between 0.387 and 0.413 Aac.
3. Decrease the applied current until the 50-A output contacts open.
4. Set INST PICKUP (50-A) to 1.6.
