A-4
BE1-50/51B-230/-234/-239 Characteristic Curves
9252000894 Rev H
Figures A-2 through A-15 illustrate the BE1-50/51B-230, BE1-50/51B-234, and BE1-50/51B-239 time
overcurrent characteristic curves.
Characteristic Curves

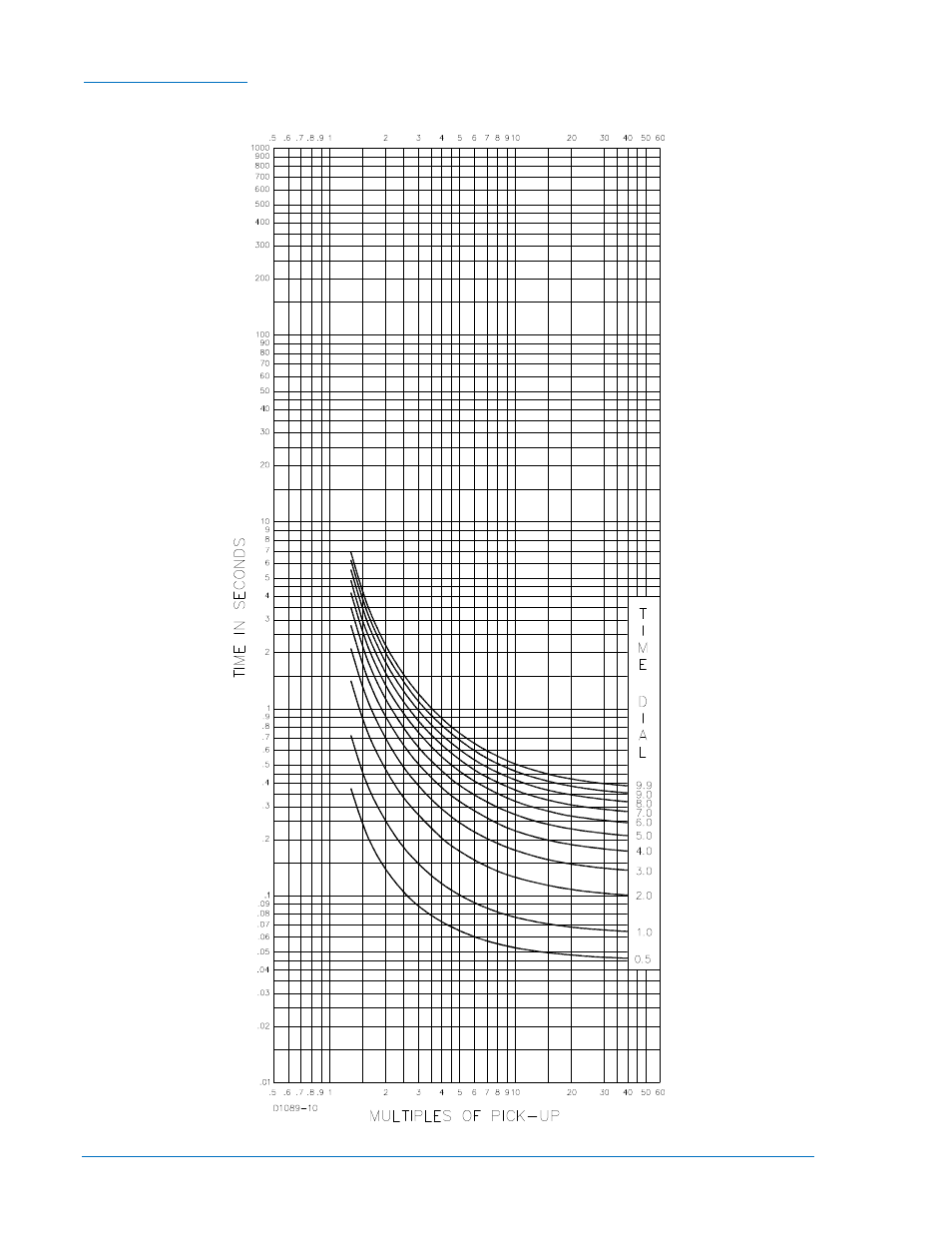

Figure A-2. Short Inverse (S) Time Characteristic Curve (SW3-3 Off, Similar to ABB CO-2)
