PVHFL58-300 & PVHFL510-300 Horizontal Power Vent
Motor and Capacitor Replacement
REC 1251 Note: Maintenance must be preformed by qualified personnel/
electrician

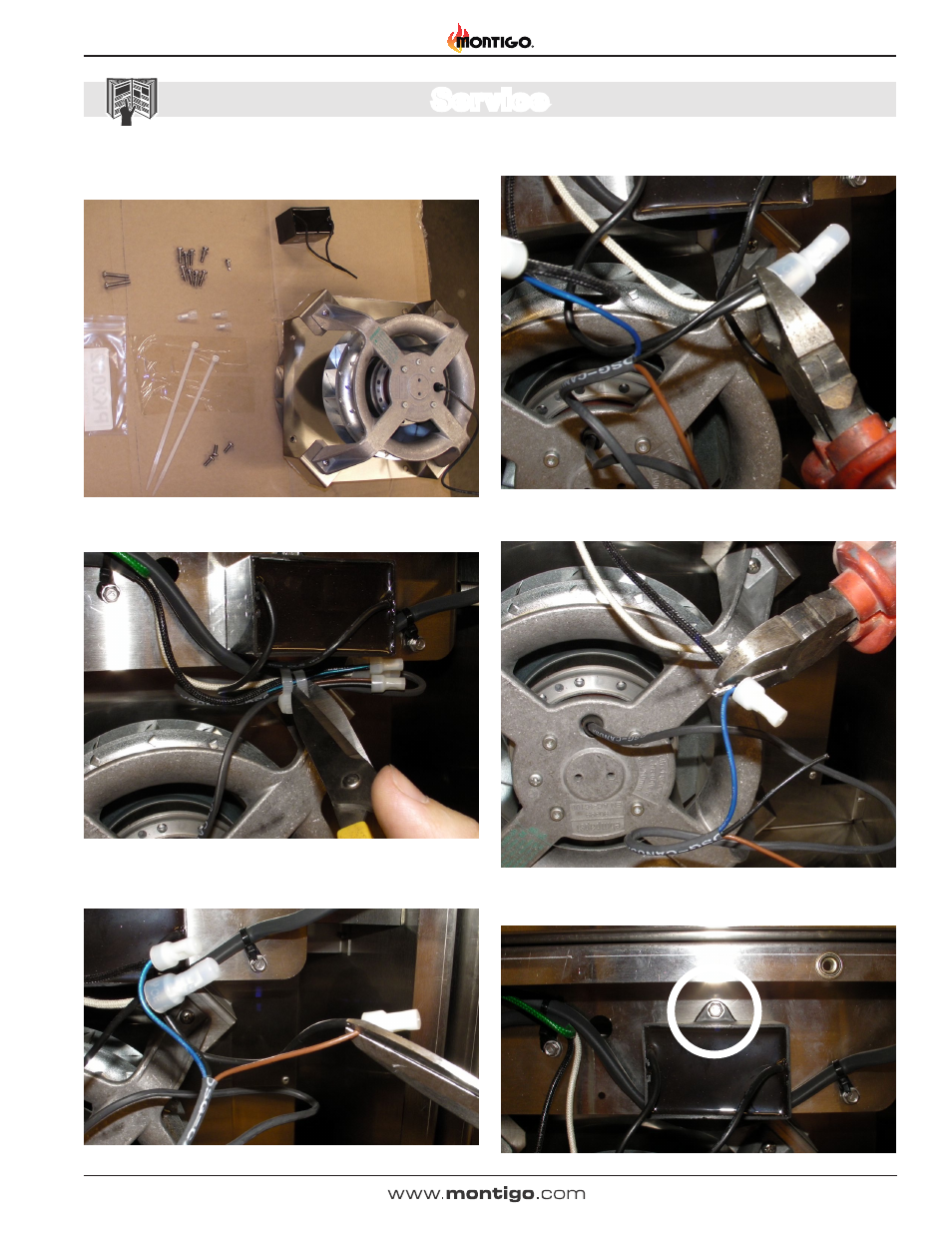

Figure 10.
Step 1: Cut the two zap straps securing the wiring.
Figure 10a.
Step 2: Cut the brown wire from the motor.
Figure 10b.
Step 3: Cut fibre white wire from power cable, black wire from capacitor and
black wire from motor.
Figure 10c.
Step 4: Cut the black fiber wire from the power cable.
Figure 10d.
Step 5: Unscrew mounting screw securing capacitor and remove capacitor.
Figure 10e.
