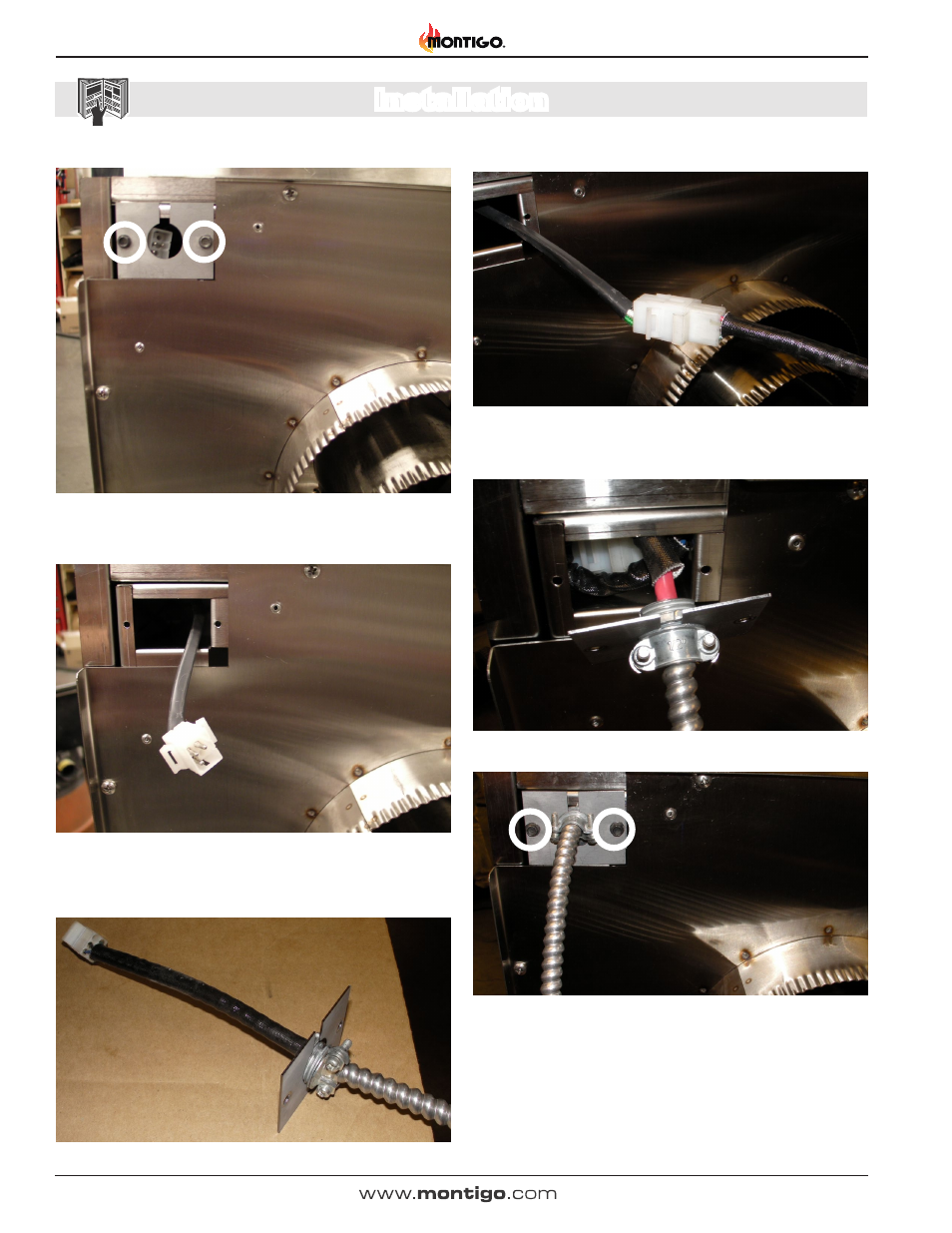

Step 8: Remove two screws securing electrical plate.
Figure 3g.
Step 9: Remove the power vent power cable from inside the electrical
channel.
Figure 3h.
Step 10:Take the electrical harness [EPVH-10-100] that will communicate
with the power vent and attach the strain relief for it to the electrical plate.
Tighten the nut on the strain relief.
Figure 3i.
Step 11: Attach the power cable from the power vent to the control cable.
Figure 3j.
Step 12: Push all the excess cable back into the electrical channel of the
power vent. Screw the electrical plate back on the power vent.
Figure 3j.
Figure 3k.
PVHFL58-300 & PVHFL510-300 Horizontal Power Vent
