8921DAC Instruction Manual 31
Configuration
Audio Delay Web Page
The Audio Delay web page ( Figure 13 ) provides delay controls for the
Analog Audio output channels.
Use this page to do the following:
• Set delay for each output channel with the Delay controls at the bottom
of the page.
• Channel 1 and 2 and Channel 3 and 4 can also be adjusted in pairs by
selecting the corresponding
Locked checkbox in the Delay Locking areas
for each channel pair. When locked, selecting either channel control in
the pair will change the amount of delay for both channels by the same
amount.

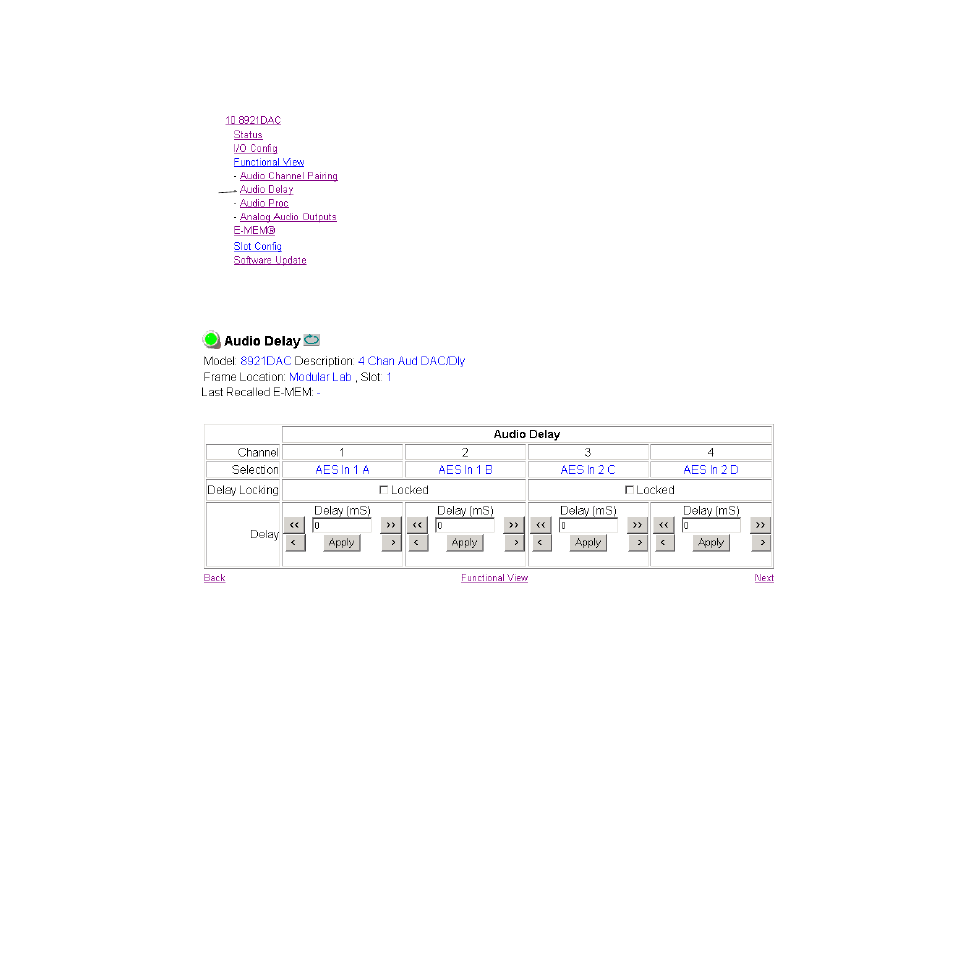

Figure 13. 8921DAC Audio Delay Web Page
