2-5
Control Panel Installation

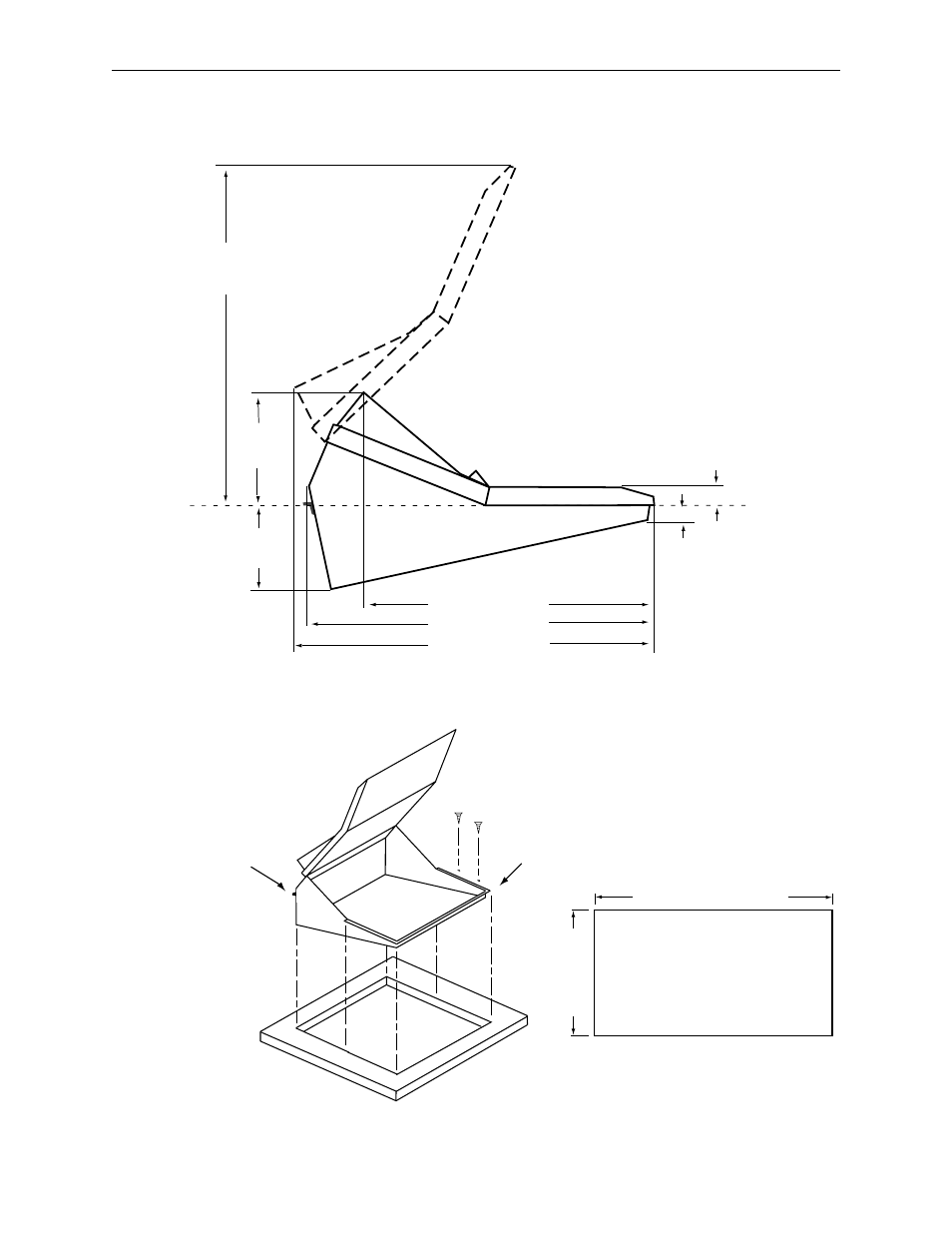

Figure 2-2. Dimensions for Flush-Mounting the Panel in a Console
Console Cutout
27.80 in. (706 mm)
17.46 in. (443 mm)
Wood screws, 10 places,
size #6 (customer supplied)
Important: Install the mounting
brackets on the rear of the
panel using four #6-32
screws. Secure the brackets
to the desk using four #6
wood screws. The mounting
flange at the front is not
capable of supporting
the entire panel.
Panel
mounting flange
Side View
6.05 in.
(154 mm)
1.02 in.
(26 mm)
18.42 in. (468 mm)
19.58 in. (497 mm)
20.22 in.
(514 mm)
1.00 in.
(25 mm)
15.40 in. (391 mm)
5.31 in.
(135 mm)
Flush Mount
