Measuring
Distances constructed from two arcs
Up to three different distance constructions can be made from two arcs:
• Center distance:
The distance from the center of one arc to the center of the other
• Min distance:
The minimum distance between the two arc circumferences
• Max distance:
The maximum distance between the two arc circumferences
To construct the distance between two arcs:
1 Touch the Measure Distance icon
2 Touch the first arc feature
3 Press the Enter key
4 Touch the second arc feature
5 Press the Enter key
6 Press the Finish key
The center distance will be constructed. Alternative distance constructions can be selected from the drop-
down menu in the DRO window.

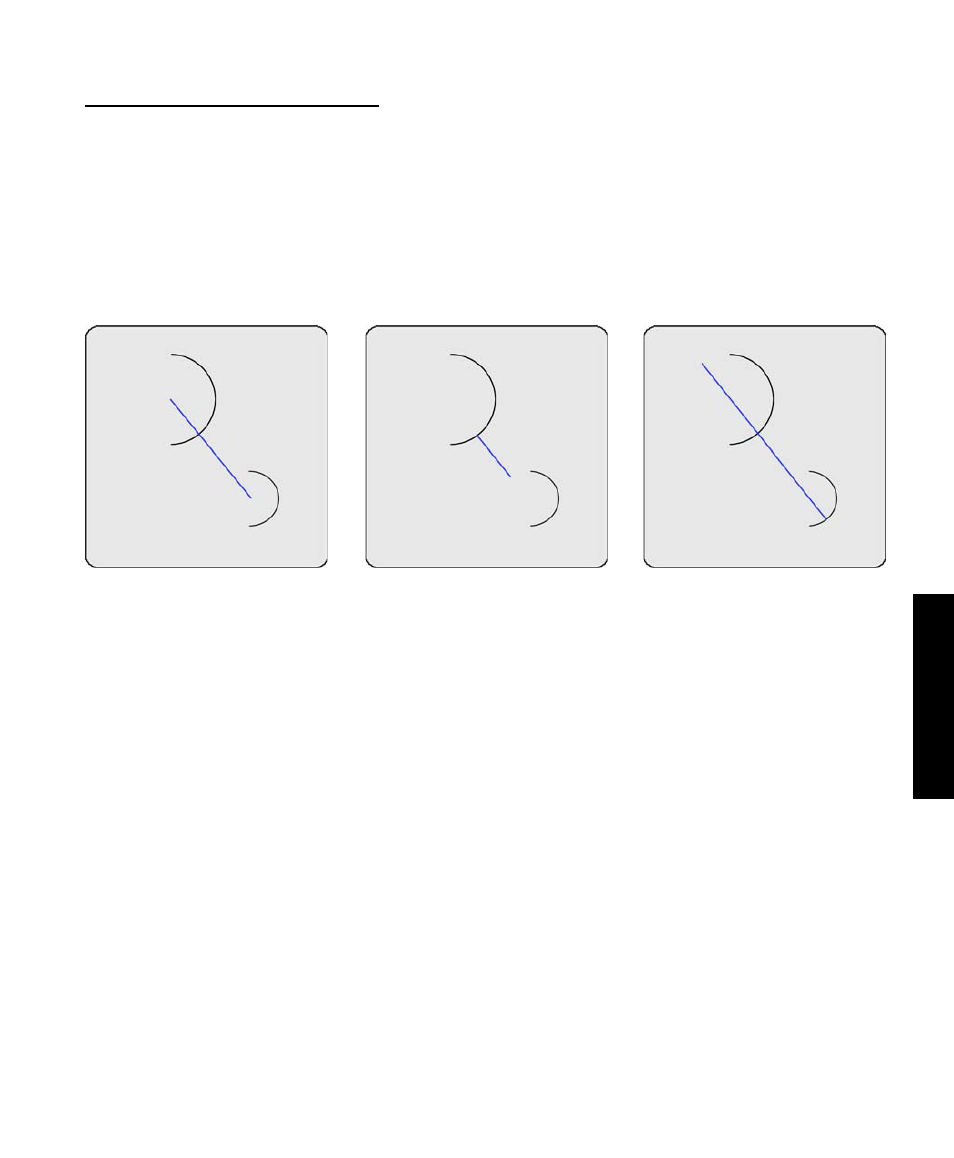

Center distance
Min distance
Max distance
Constructing Features
