SL cycles with complex contour formula 9.1
9
TNC 640 | User's Manual Cycle Programming | 1/2015
245

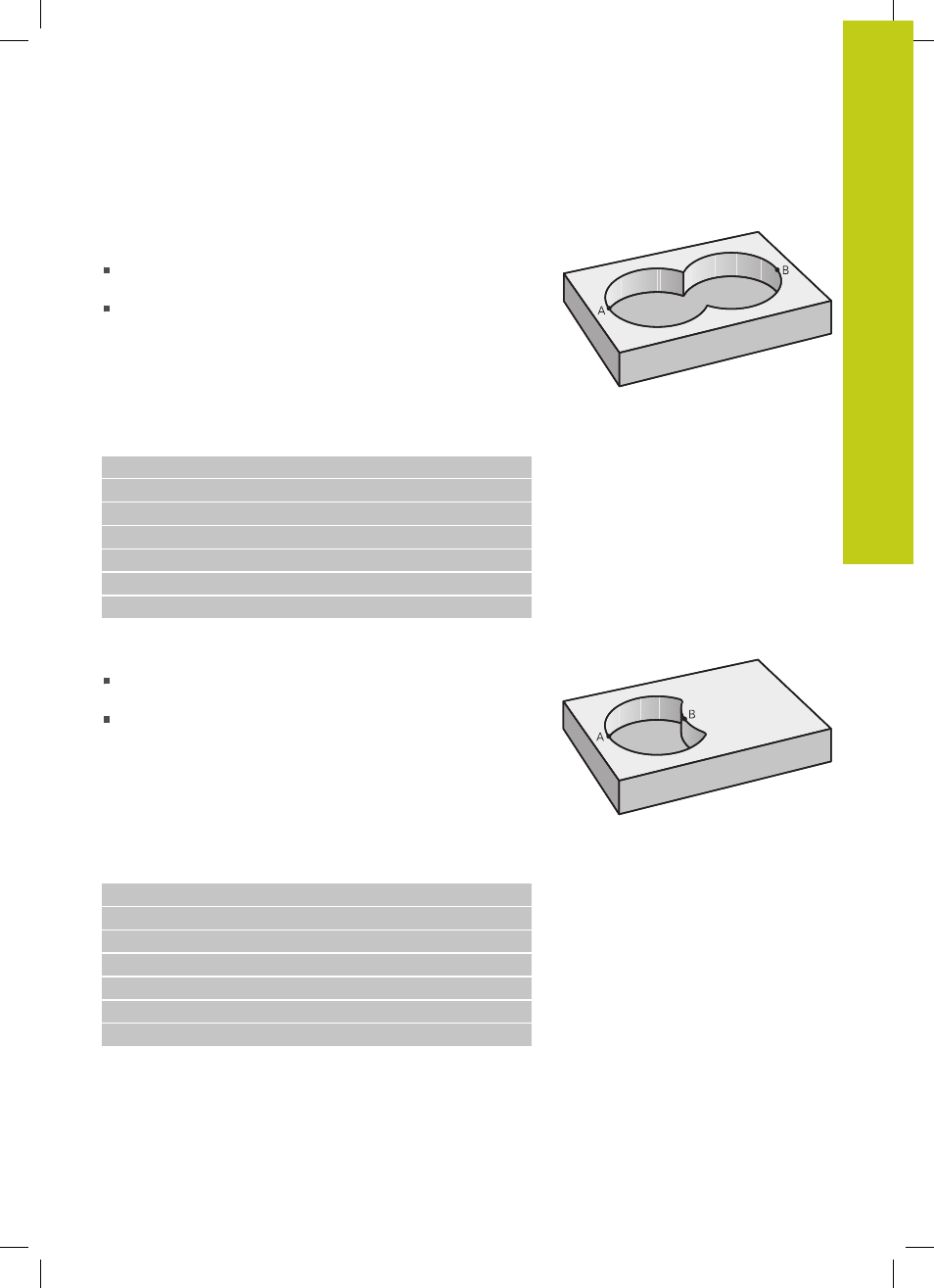

Area of inclusion
Both areas A and B are to be machined, including the overlapping
area:
The areas A and B must be entered in separate programs
without radius compensation.
In the contour formula, the areas A and B are processed with
the "joined with" function.
Contour definition program:
50 ...
51 ...
52 DECLARE CONTOUR QC1 = "POCKET_A.H"
53 DECLARE CONTOUR QC2 = "POCKET_B.H"
54 QC10 = QC1 | QC2
55 ...
56 ...
Area of exclusion
Area A is to be machined without the portion overlapped by B:
The areas A and B must be entered in separate programs
without radius compensation.
In the contour formula, the area B is subtracted from the area A
with the
without function.
Contour definition program:
50 ...
51 ...
52 DECLARE CONTOUR QC1 = "POCKET_A.H"
53 DECLARE CONTOUR QC2 = "POCKET_B.H"
54 QC10 = QC1 \ QC2
55 ...
56 ...
