13 ORION XTENDER INSTALLATION AND OPERATIONS MANUAL

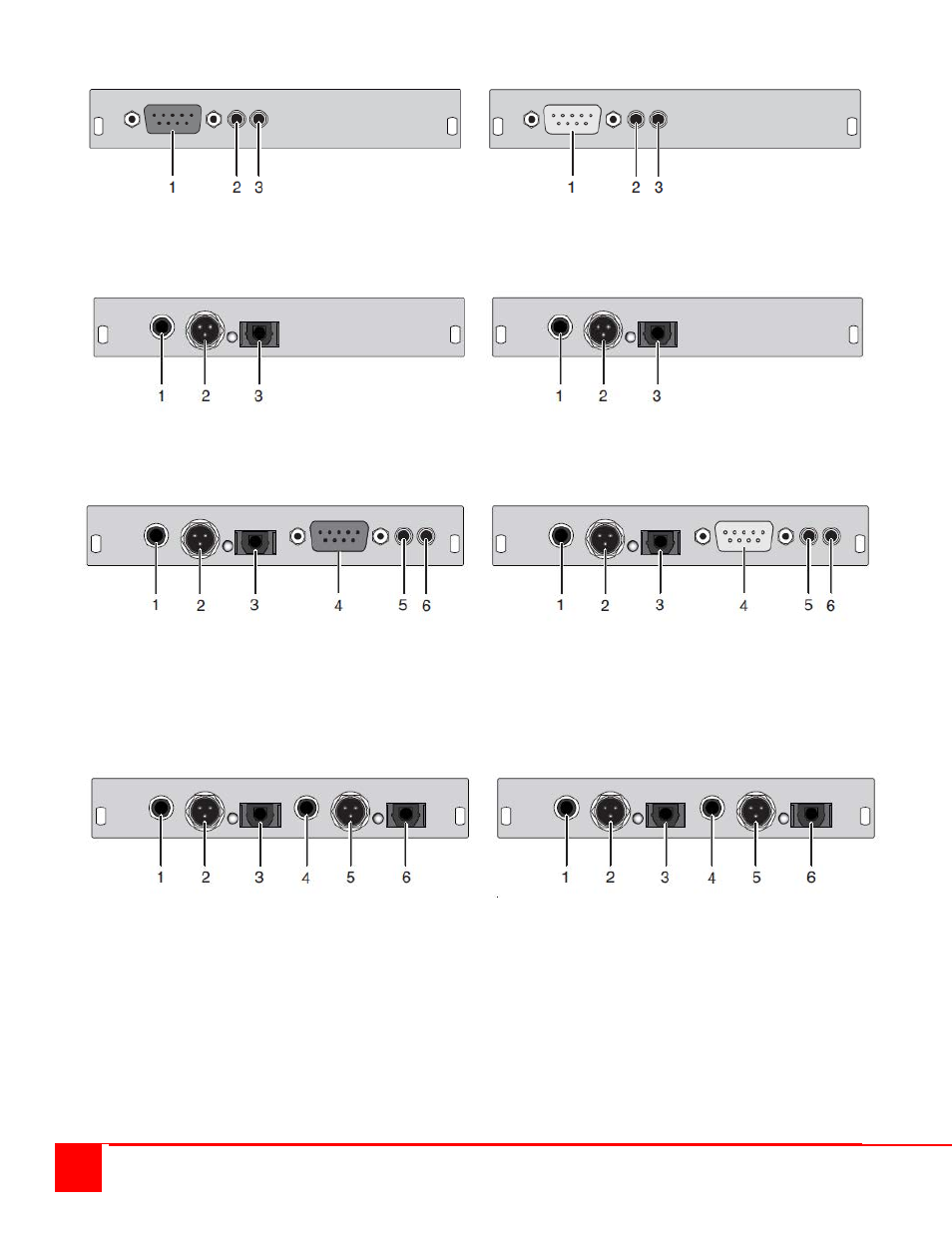

1 To serial (D-Sub 9) 1 To serial (D-Sub 9)
2 Audio IN 2 Audio IN
3 Audio OUT 3 Audio OUT
1 S/PDIF input (RCA) 1 S/PDIF output (RCA)
2 AES/EBU input (Mini-XLR) 2 AES/EBU output (Mini-XLR)
3 S/PDIF input (TOSLINK) 3 S/PDIF output (TOSLINK)
1 S/PDIF input (RCA) 1 S/PDIF output (RCA)
2 AES/EBU input (Mini-XLR) 2 AES/EBU output (Mini-XLR)
3 S/PDIF input (TOSLINK) 3 S/PDIF output (TOSLINK)
4 To serial (D-Sub 9) 4 To serial (D-Sub 9)
5 Audio IN 5 Audio IN
6 Audio OUT 6 Audio OUT
1 S/PDIF input (RCA) 1 S/PDIF output (RCA)
2 AES/EBU input (Mini-XLR) 2 AES/EBU output (Mini-XLR)
3 S/PDIF input (TOSLINK) 3 S/PDIF output (TOSLINK)
4 S/PDIF output (RCA) 4 S/PDIF input (RCA)
5 AES/EBU output (Mini-XLR) 5 AES/EBU input (Mini-XLR)
6 S/PDIF output (TOSLINK) 6 S/PDIF input (TOSLINK)
