15 ORION XTENDER INSTALLATION AND OPERATIONS MANUAL

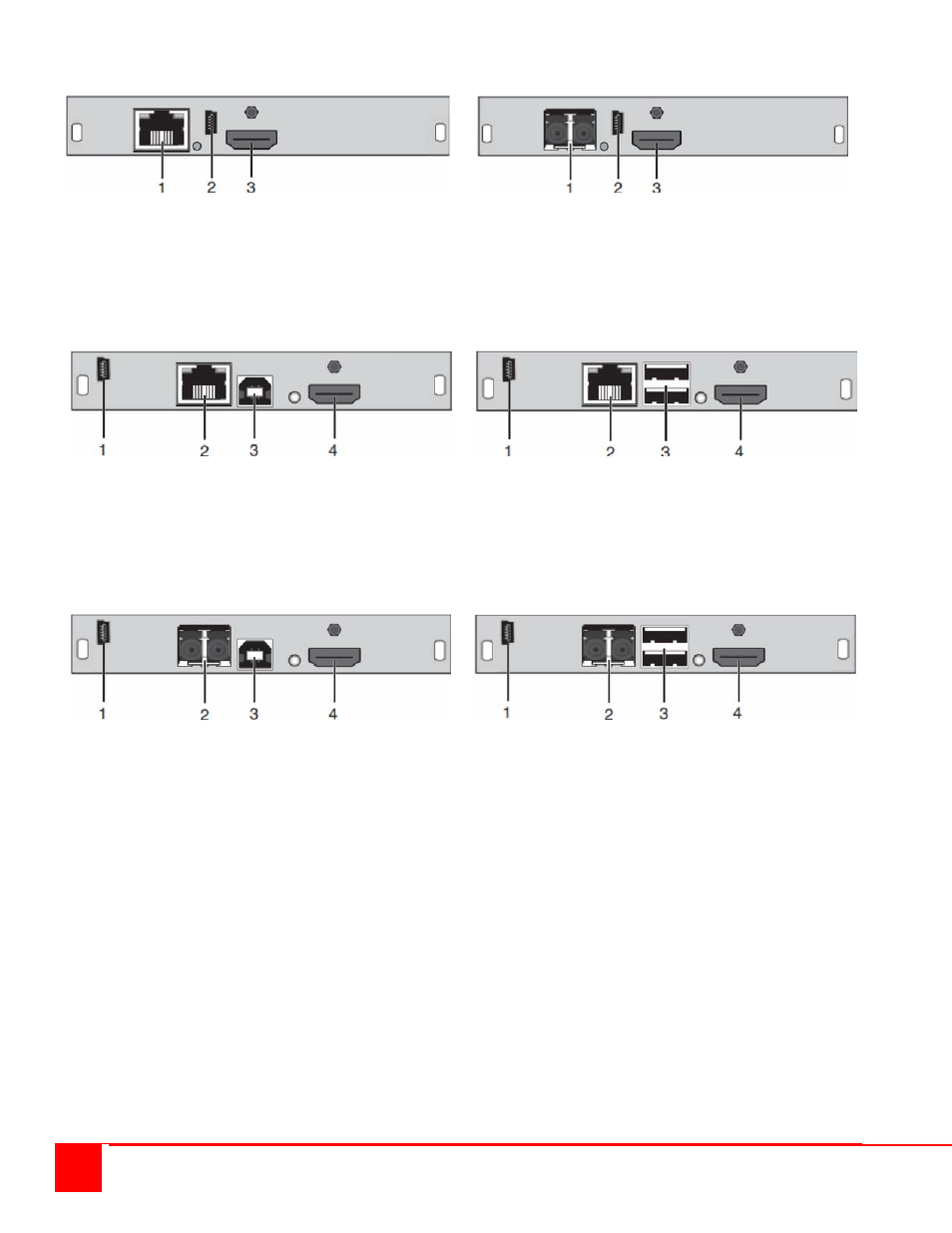

1 CATx port 1 Fiber port
2 Fiber port 2 Fiber port
3 CPU: USB-HID 3 USB-HID devices
1 Service port 1 Service port
2 CATx port 2 CATx port
3 CPU: USB-HID 3 USB-HID devices
4 CPU: HDMI 4 HDMI
1 Service port 1 Service port
2 Fiber port 2 Fiber port
3 CPU: USB-HID 3 USB-HID devices
4 CPU: HDMI 4 HDMI
