Package Drawings
7-59

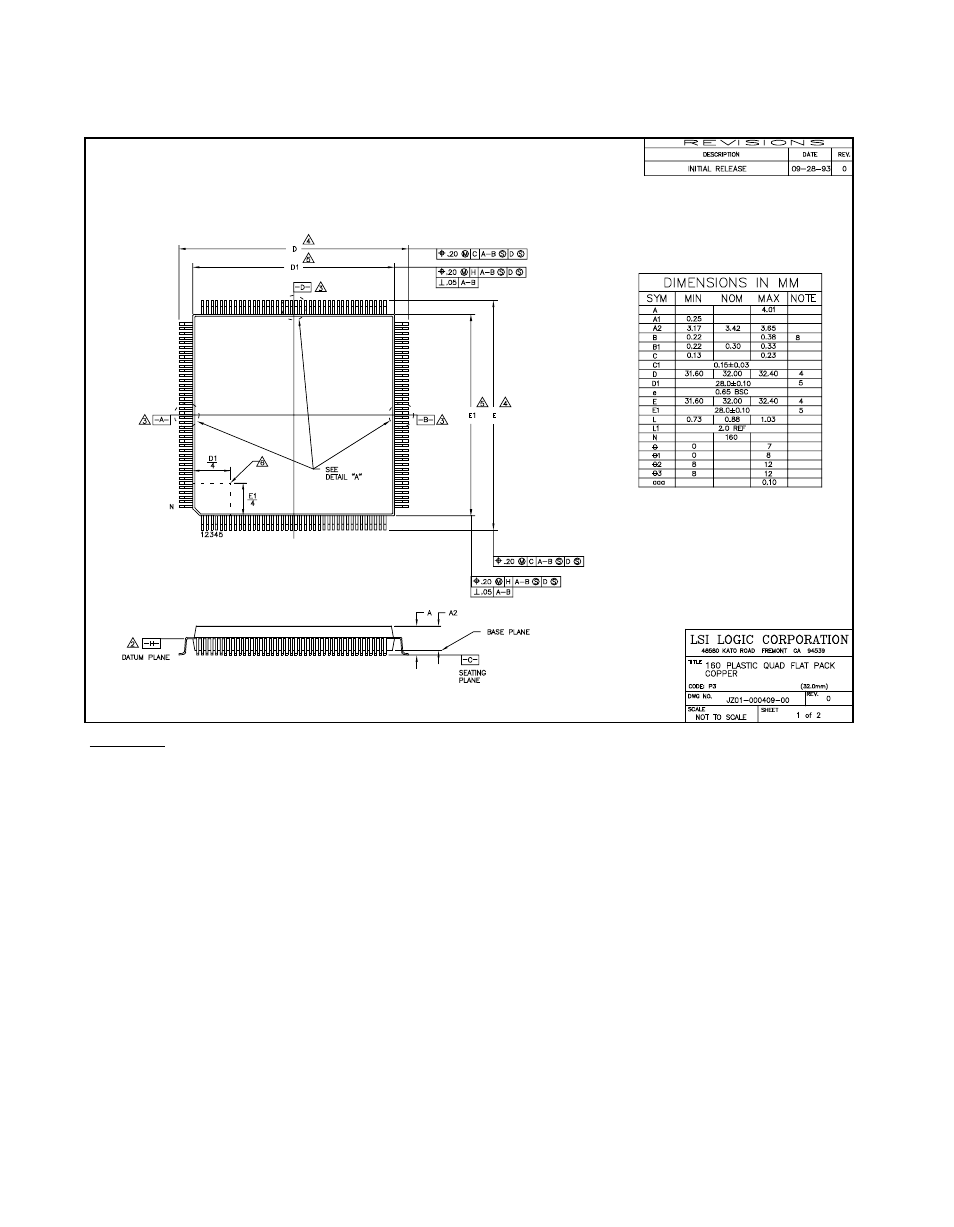

Figure 7.37 160-pin PQFP (P3) Mechanical Drawing (Sheet 1 of 2)
Important:
This drawing may not be the latest version. For board layout and manufacturing, obtain the
most recent engineering drawings from your LSI Logic marketing representative by
requesting the outline drawing for package code P3.
