Page DD_03
Where the DishDrawer
is installed under a
counter top, it is
recommended that bare
wood surrounding the
DishDrawer is sealed
with an oil based paint
or polyurethane to
prevent possible steam
damage.
Ensure the cavity sides
are plumb (vertical) as
this will assist with
leveling the DishDrawer.
Ensure the Services Hole
is as close as possible to
the rear lower corner of
the cabinetry. The hole
can be located on either
side depending on the
location of the services.
IMPORTANT
On corner installations,
ensure that there is a gap
of 2" (50mm) minimum
between the adjacent
cabinetry and sides of
drawers.
IMPORTANT
STEP 1.4 ELECTRICAL, PLUMBING & DRAINAGE INFORMATION
IMPORTANT
IMPORTANT

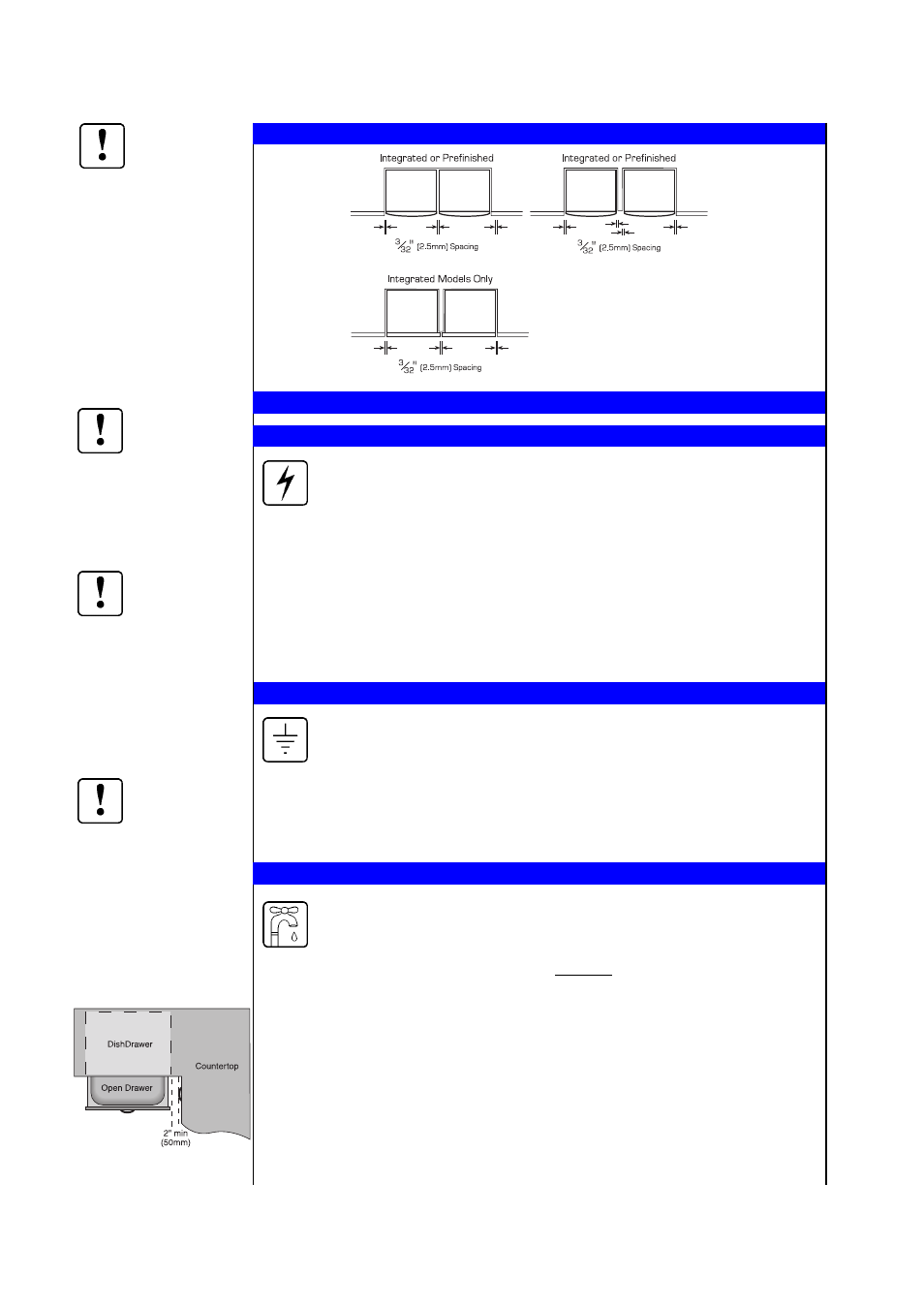

STEP 1.3 OPTIONS FOR INSTALLING MULTIPLE PRODUCTS
ELECTRICAL
GROUNDING INSTRUCTIONS
PLUMBING - WATER SUPPLY
a) The water connection is to be made to a hot water supply only. Ensure the water
temperature is not greater than 140°F (60°C).
b) A readily accessible shut off valve must be installed in the supply pipe.
c) The water supply pressure is to be between 4.3 p.s.i. minimum and 139 p.s.i.
maximum.
d) The inlet supply hose must be connected to the water supply using a 3 /
8
"
compression type water supply fitting.
e) Ensure sealing washer supplied with connection hose is fitted.
This appliance must be grounded. In the event of malfunction or breakdown,
grounding will reduce the risk of electric shock by providing a path of least
resistance for electric current.
This appliance is equipped with a cord having an equipment-grounding conductor and a
grounding plug. The plug must be plugged into an appropriate outlet that is installed and
grounded in accordance with all local Codes & Ordinances.
Care should be exercised when the appliance is installed or removed, to
reduce the likelihood of damage to the power supply cord.
If the power supply cord is damaged, it must be replaced by the Manufacturer, it’s Service
Agent or a similarly qualified person, in order to avoid a hazard.
The power supply receptacle for the appliance should be installed in a cabinet or on a wall
adjacent to the under counter space in which the appliance is to be installed.
The power supply receptacle should be positioned between 6" and 18"
(150mm and 450mm) from the cabinet opening of the DishDrawer.
