Chapter 1 Before Use 1-7
1. 4 Appearance

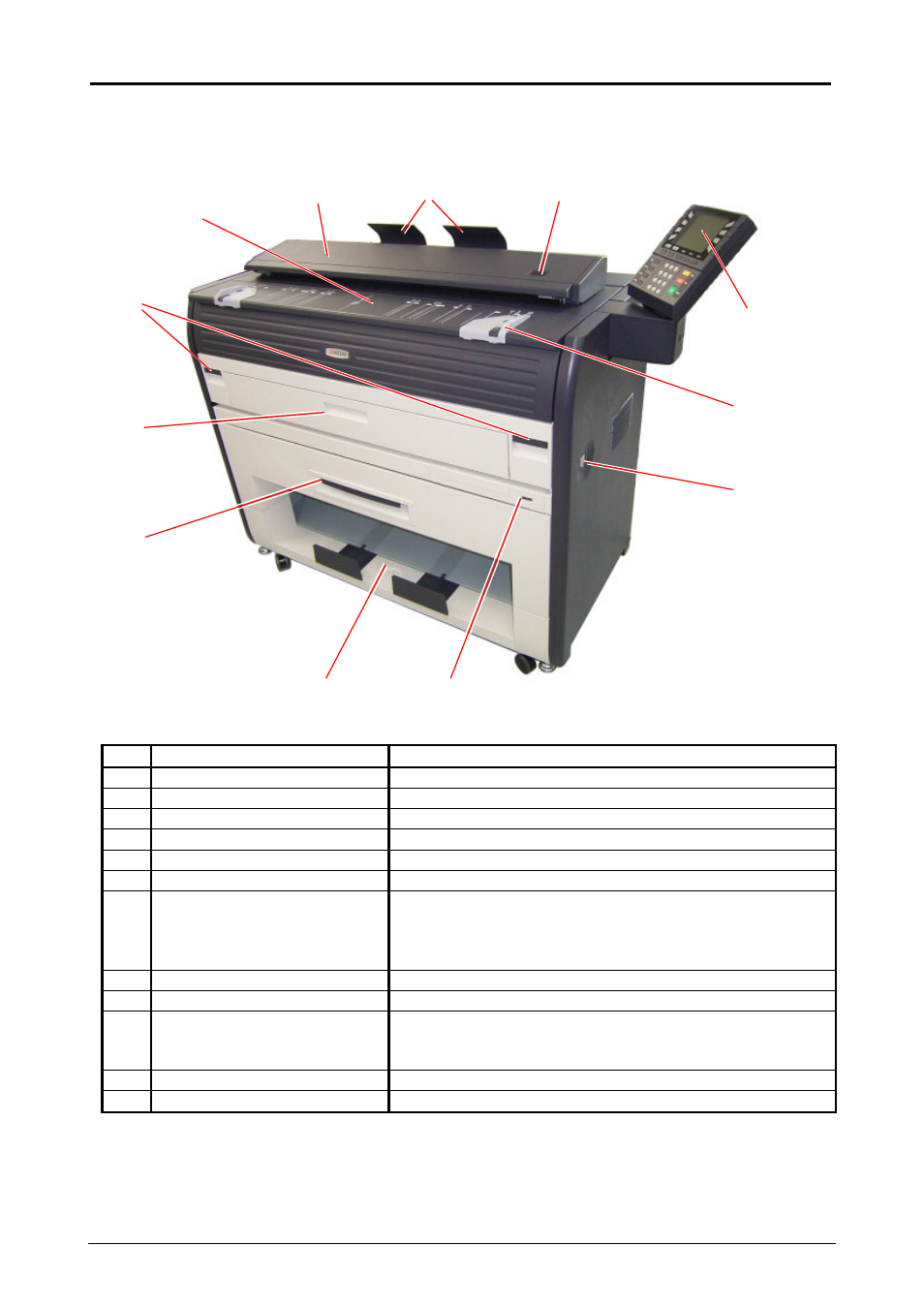

1. 4. 1 Front view
No. Name Function
1 Main Switch Turns on/off the machine.
2 Original Guides Guides the original to the Scanner Unit straight.
3 Operation Panel Makes copy/scan operations.
4 Emergent Stop Button Stops copying or scanning emergently.
5 Original Tray Receives the original ejected from the Scanner Unit.
6 Scanner Unit Reads the image pattern of original in scan and copy.
7 Toner Hatch
(Original Table)
Open the Toner Hatch (Original Table) to access the
Toner Cartridge.
Put the original here and feed it into the Scanner Unit in
scan or copy.
8 Engine Unit Open Lever Opens the Engine Unit.
9 Bypass Feeder Feeds a cut sheet paper.
10 Roll Deck Holds the roll paper.
(1 roll paper can be set normally. 2 roll papers are
available is optional Roll Deck 2 is provided.)
11 Print Tray Receives the prints (copies) ejected from the Copy Exit.
12 Counter Counts the total amount of prints.
1
4 5
3
6
2
8
9
10
12
7
11
