Package Outline Dimensions
(cont.) (All dimensions in mm (inch).)

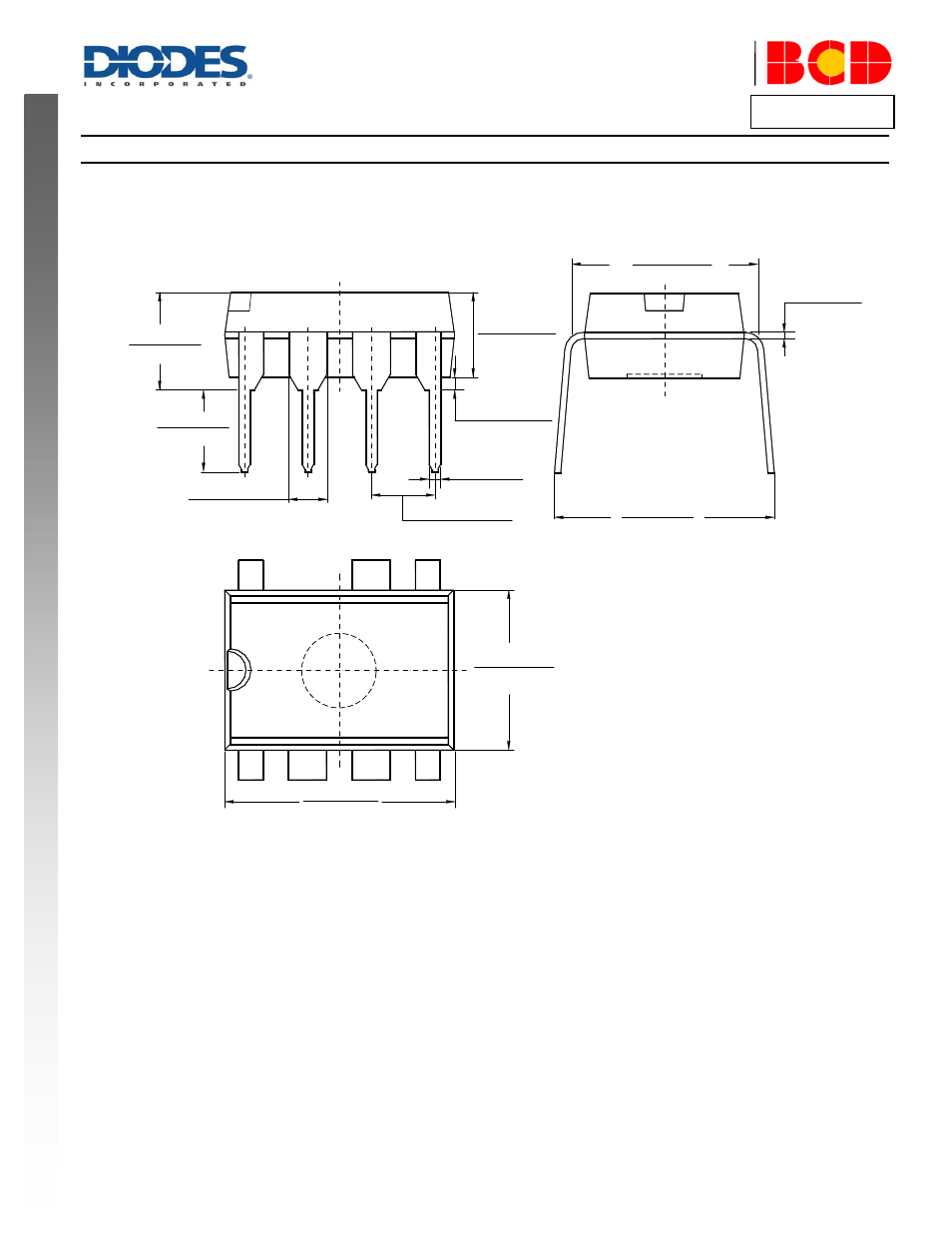

(2) Package Type: PDIP-7
8.400(0. 331)
9.000(0. 354)
0.204(0.008)
0.360(0. 014)
7.320(0. 288)
9.000(0. 354)
9.400(0. 370)
3.710(0.146)
4.310(0.170)
3.000(0. 118)
3.600(0. 142)
2.540(0. 100)BSC
6.200(0. 244)
6.600(0. 260)
3.200(0. 126)
3.600(0. 142)
0.510(0. 020) MIN
1.524(0. 060) BSC
Note: Eject hole , oriented hole and mold mark is optional.
0.380(0. 015)
0.570(0. 022)
7.920(0. 312)
