2. Installation

23

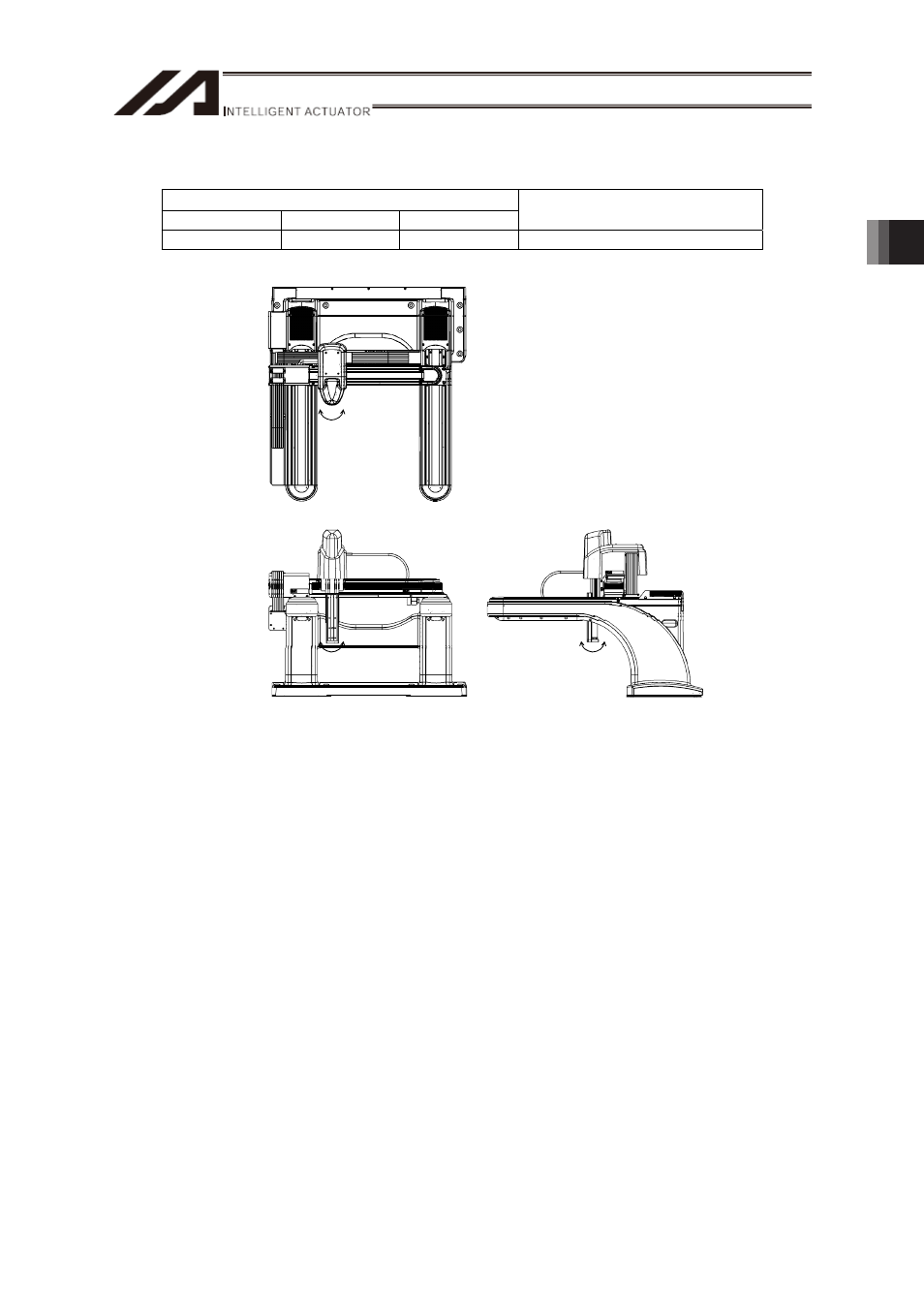

There are restrictions in the moment and load overhang length when attaching a load on the table.

Dynamic Allowable Moment[N㨯m]

Ma

Mb

Mb

Allowable Overhang Length

Load length L (mm)

6.4

9.2

14.2

X, Y, Z directions 50
